Quartz, Natural and Synthetic
  Goto page Previous  1, 2, 3
  Index -> Minerals and Mineralogy
Like
53


View previous topic :: View next topic
Author Message

Indrid_Cold




Joined: 01 Feb 2016
Posts: 4
Location: Las Vegas, NV

View user's profile

Send private message

PostPosted: Feb 02, 2016 11:48    Post subject: Re: Quartz, Natural and Synthetic

Enrique Llorens wrote:
Vladimir Klipov 5525 Wilson Mills Highland Heights,oh 44143 Effective Date: 07/11/2005 Contact Status: Active


Thank you! Is there a web site or email available?
Back to top
Reply to topic Reply with quote
Like


Enrique Llorens




Joined: 02 Jun 2011
Posts: 325


Access to the FMF Gallery title=

View user's profile

Send private message

PostPosted: Feb 02, 2016 12:17    Post subject: Re: Quartz, Natural and Synthetic

No, this is what I found on Google.
Back to top
Reply to topic Reply with quote
Like


Indrid_Cold




Joined: 01 Feb 2016
Posts: 4
Location: Las Vegas, NV

View user's profile

Send private message

PostPosted: Feb 02, 2016 13:17    Post subject: Re: Quartz, Natural and Synthetic

Enrique Llorens wrote:
No, this is what I found on Google.


Thank you. I was hoping R&D Xtals had a web site. Anyone out there have any info???
Back to top
Reply to topic Reply with quote
Like


Jamison Brizendine




Joined: 27 Feb 2014
Posts: 128
Location: Northeast Ohio


Access to the FMF Gallery title=

View user's profile

Send private message

PostPosted: Apr 29, 2016 13:50    Post subject: Re: Quartz, Natural and Synthetic

These are my recently acquired hydrothermally grown synthetic quartz crystals. Two specimens are fairly typical of the popular "Sea Urchin" or "Hedgehog" style crystal clusters, while one of them was a broken Brazilian Quartz cluster, that had been partially regrown in the autoclave.


JKB970, Hydothermally Grown Synthetic Silicon Dioxide, R&D XTALS LLC, Cleveland, Cuyahoga Co., Ohio, United States.JPG
 Mineral: Hydrothermally Grown Synthetic Silicon Dioxide
 Description:
R&D XTALS LLC, Cleveland, Cuyahoga Co., Ohio, United States
9.3 cm x 6.2 cm x 8.2 cm
This specimen originally was a mass of broken natural quartz crystals from Brazil. After some time in the autoclave the terminations have regrown. New growths show the cross hatch growth patterns, typical of laboratory grown hydrothermal quartz. Note the “urchin” cluster added to the specimen in the lower left corner of the specimen.
 Viewed:  9482 Time(s)

JKB970, Hydothermally Grown Synthetic Silicon Dioxide, R&D XTALS LLC, Cleveland, Cuyahoga Co., Ohio, United States.JPG



JKB969, Hydothermally Grown Synthetic Silicon Dioxide, R&D XTALS LLC, Cleveland, Cuyahoga Co., Ohio, United States.JPG
 Mineral: Hydrothermally Grown Synthetic Silicon Dioxide
 Description:
R&D XTALS LLC, Cleveland, Cuyahoga Co., Ohio, United States
7.2 cm x 4 cm x 8.5 cm
This specimen shows three “urchin” or “hedgehog” style clusters grown on earlier seeded quartz crystals. These thin crystals are very sharp (Literally…)
 Viewed:  9472 Time(s)

JKB969, Hydothermally Grown Synthetic Silicon Dioxide, R&D XTALS LLC, Cleveland, Cuyahoga Co., Ohio, United States.JPG



JKB968, Hydothermally Grown Synthetic Silicon Dioxide, R&D XTALS LLC, Cleveland, Cuyahoga Co., Ohio, United States.JPG
 Mineral: Hydrothermally Grown Synthetic Silicon Dioxide
 Description:
R&D XTALS LLC, Cleveland, Cuyahoga Co., Ohio, United States
9.5 cm x 5 cm x 7.3 cm
This specimen shows an “urchin” or “hedgehog” style cluster grown on earlier seeded quartz crystals.
 Viewed:  9499 Time(s)

JKB968, Hydothermally Grown Synthetic Silicon Dioxide, R&D XTALS LLC, Cleveland, Cuyahoga Co., Ohio, United States.JPG


Back to top
Reply to topic Reply with quote
Like
6


Elise




Joined: 22 Dec 2009
Posts: 243
Location: New York State


Access to the FMF Gallery title=

View user's profile

Send private message

PostPosted: Apr 29, 2016 14:09    Post subject: Re: Quartz, Natural and Synthetic

Jamison Brizendine wrote:
...one of them was a broken Brazilian Quartz cluster, that had been partially regrown in the autoclave.

That is pretty neat to see Jamison - thank you so much for sharing! Is it possible to add arrows to the regrowth crystals to show where the regrowth starts and to tell how long it took to grow?
Best wishes,
Elise

_________________
Elise Skalwold
Back to top
Reply to topic Reply with quote
Like


Jamison Brizendine




Joined: 27 Feb 2014
Posts: 128
Location: Northeast Ohio


Access to the FMF Gallery title=

View user's profile

Send private message

PostPosted: May 20, 2016 09:59    Post subject: Re: Quartz, Natural and Synthetic

Elise,

To answer your first question, I can't really give you an adequate answer because I don't know it! Vlad didn't take "before" pictures and I don't know what the cluster looked like prior to it being placed in the autoclave.

In March 2015, he showed us some broken clusters that he brought from a dealer at our March meeting and then showed us the finished products at our November meeting. I think the run time total was approximately 6 - 7 months for the full regrowth.
Back to top
Reply to topic Reply with quote
Like


Jamison Brizendine




Joined: 27 Feb 2014
Posts: 128
Location: Northeast Ohio


Access to the FMF Gallery title=

View user's profile

Send private message

PostPosted: Nov 18, 2016 16:30    Post subject: Re: Quartz, Natural and Synthetic

This is a large cabinet specimen of (formerly) amethyst from the J.B. Ivey Property (Farm), Warrenton, Warren County, Georgia, United States and then altered by a hydrothermal silicon dioxide solution. The “rehealing” was done by Vlad Klipov of Cleveland, Ohio.

This specimen has been altered from its original state and then was placed in a steel autoclave and allowed to “reheal”. The total time of “rehealing” took approximately six to seven months.

The original quartz was a “top” of a scepter, with the “rod” portion broken off, probably in situ. My objective (foolish hope) for this experiment was that the “rod” portion would regrow and the “top” of the scepter would only regrow slightly.

What happened instead was that the “top” continued to grow along the c-axis, and enveloped what remained of the “rod”. What you have now is “almost” a double terminated quartz, similar to a “Herkimer Diamond”. Like the “Guerrero” experiment before it, the color has been greatly reduced, but the overall luster has improved.

The photos below shows the specimen before and after the regrowth experiment. Enjoy!

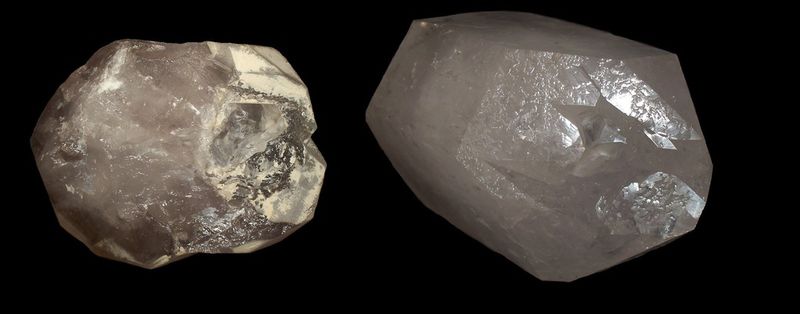

JKB979, Amethyst and Hydrothermal Solution Quartz, Georgia, USA, A.jpg
 Description:
Amethyst and Hydrothermal Solution Quartz
J. B. Ivey property, Warrenton, Warren County, Georgia, USA
Before: 5.7 x 7.7 x 5.2 cm, After: 5.7 x 10.9 x 5.2 cm
This is a large cabinet specimen of (formerly) amethyst from the J.B. Ivey property, Warrenton, Warren County, Georgia, United States and then altered by a hydrothermal silicon dioxide solution. The “rehealing” was done by Vlad Klipov of Cleveland, Ohio.
 Viewed:  8471 Time(s)

JKB979, Amethyst and Hydrothermal Solution Quartz, Georgia, USA, A.jpg

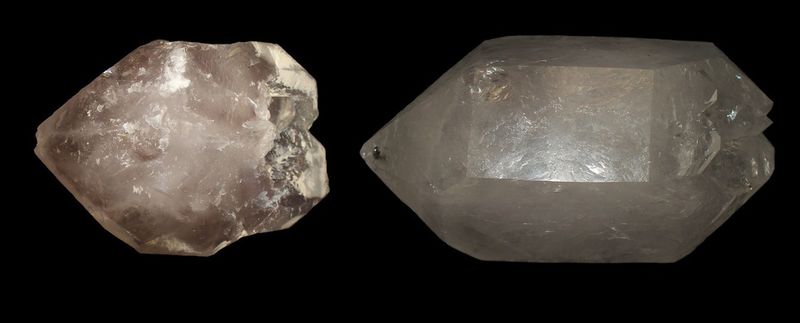

JKB979, Amethyst and Hydrothermal Solution Quartz, Georgia, USA, B.jpg
 Description:
Amethyst and Hydrothermal Solution Quartz
J. B. Ivey property, Warrenton, Warren County, Georgia, USA
Before: 5.7 x 7.7 x 5.2 cm, After: 5.7 x 10.9 x 5.2 cm
This is a large cabinet specimen of (formerly) amethyst from the J.B. Ivey property, Warrenton, Warren County, Georgia, United States and then altered by a hydrothermal silicon dioxide solution. The “rehealing” was done by Vlad Klipov of Cleveland, Ohio.
 Viewed:  8491 Time(s)

JKB979, Amethyst and Hydrothermal Solution Quartz, Georgia, USA, B.jpg

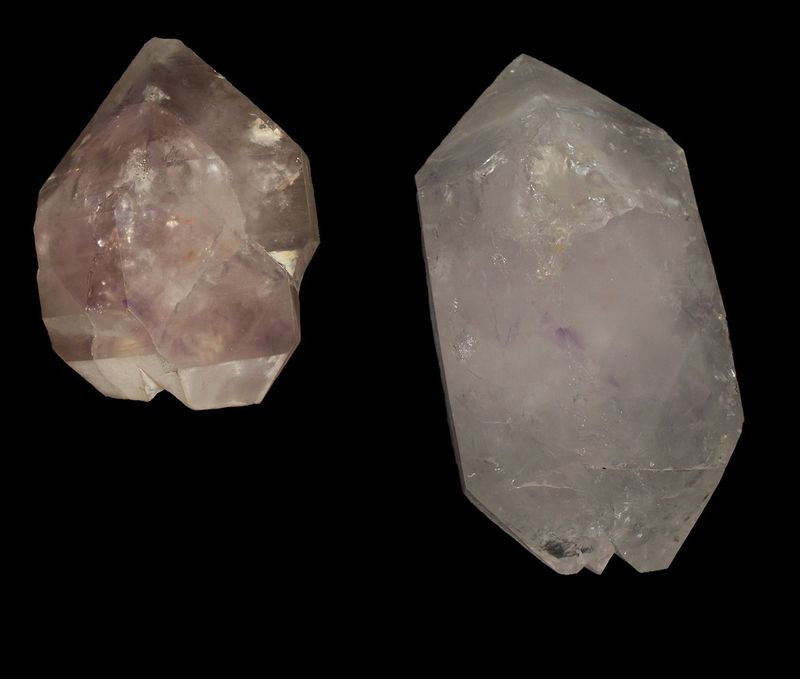

JKB979, Amethyst and Hydrothermal Solution Quartz, Georgia, USA, C.jpg
 Description:
Amethyst and Hydrothermal Solution Quartz
J. B. Ivey property, Warrenton, Warren County, Georgia, USA
Before: 5.7 x 7.7 x 5.2 cm, After: 5.7 x 10.9 x 5.2 cm
This is a large cabinet specimen of (formerly) amethyst from the J.B. Ivey property, Warrenton, Warren County, Georgia, United States and then altered by a hydrothermal silicon dioxide solution. The “rehealing” was done by Vlad Klipov of Cleveland, Ohio.
 Viewed:  8511 Time(s)

JKB979, Amethyst and Hydrothermal Solution Quartz, Georgia, USA, C.jpg


Back to top
Reply to topic Reply with quote
Like
5


Jamison Brizendine




Joined: 27 Feb 2014
Posts: 128
Location: Northeast Ohio


Access to the FMF Gallery title=

View user's profile

Send private message

PostPosted: Jun 29, 2017 08:14    Post subject: Re: Quartz, Natural and Synthetic

In 2016-2017, Vlad has expanded some of his experiments with his hydrothermal solution quartzes. I have acquired several specimens that he has regrown and will share them here on the FMF site.

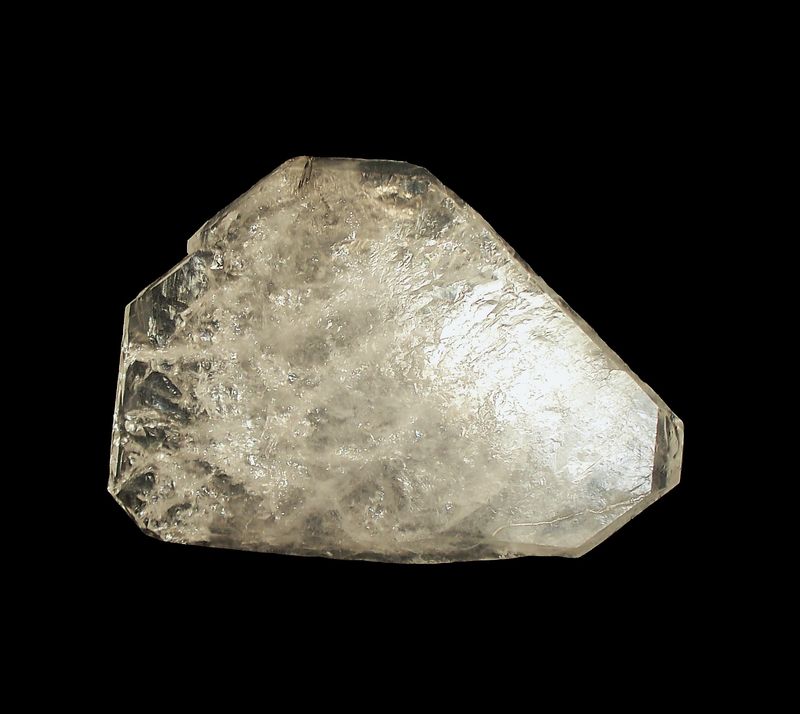

JKB1128, Hydrothermal Solution Quartz.jpg
 Mineral: Hydrothermally Grown Solution Quartz
 Dimensions: 6.4 cm x 4.4 cm x .5 cm
 Description:
R&D XTALS LLC, Cleveland, Cuyahoga Co., Ohio, United States

Flattened hydrothermally grown solution quartz crystal. Vlad attempted to duplicate a quartz that resembled a gwindel quartz. There is no degree of twist on the crystal.
 Viewed:  7433 Time(s)

JKB1128, Hydrothermal Solution Quartz.jpg

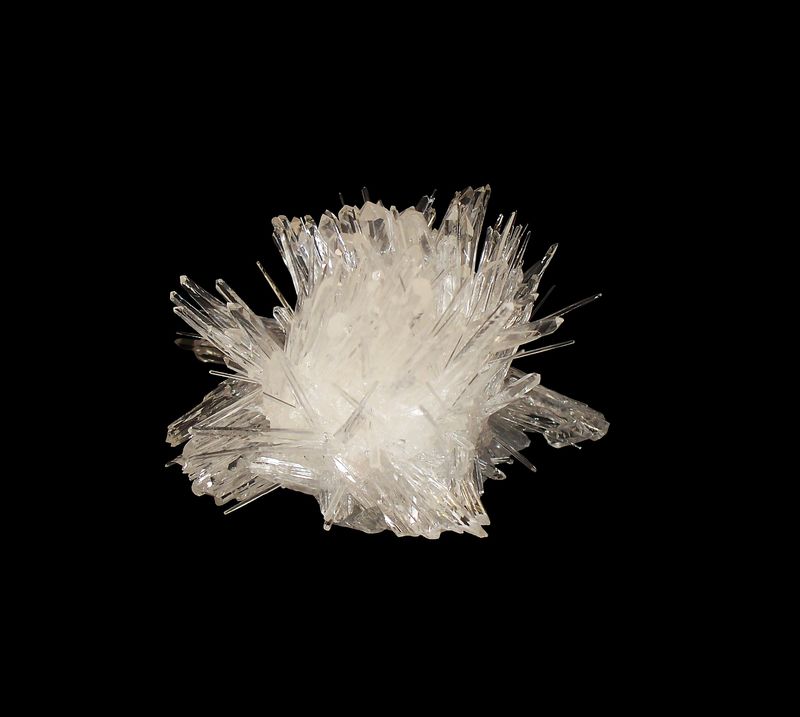

JKB1129, Hydrothermal Solution Quartz.jpg
 Mineral: Hydrothermally Grown Solution Quartz
 Dimensions: 6.5 cm x 4.3 cm x 5.5 cm
 Description:
R&D XTALS LLC, Cleveland, Cuyahoga Co., Ohio, United States

A cluster of small hydrothermally grown solution quartz needles. I’ve nicknamed this “The Haystack”.
 Viewed:  7420 Time(s)

JKB1129, Hydrothermal Solution Quartz.jpg

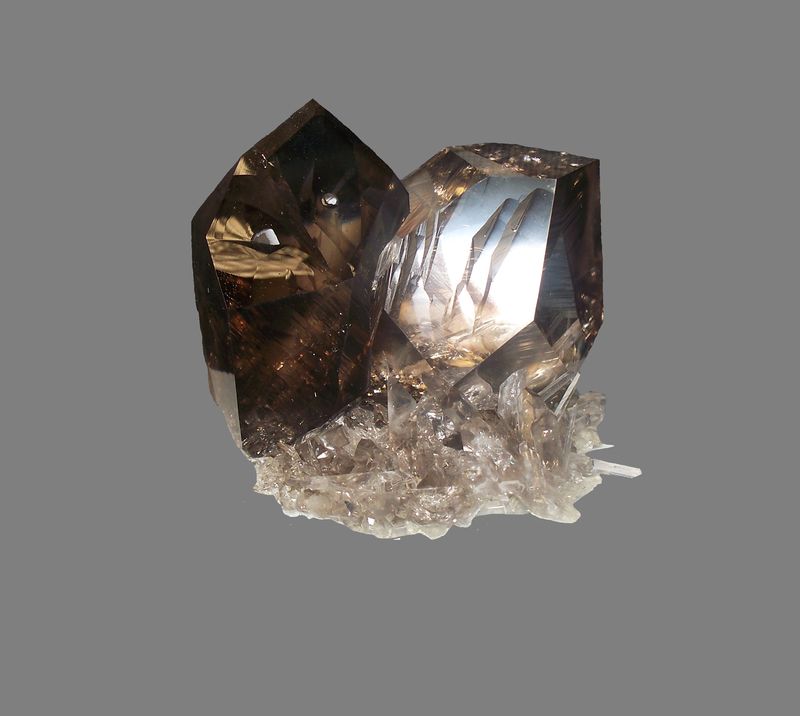

JKB1069, Hydrothermal Solution Quartz (Irradiated).jpg
 Mineral: Hydrothermally Grown Solution Quartz
 Dimensions: 5 cm x 3.5 cm x 5 cm
 Description:
R&D XTALS LLC, Cleveland, Cuyahoga Co., Ohio, United States

Attractive irradiated specimen of hydrothermally grown solution quartz. Note the smoky color of the quartz is fairly uniform, unlike the irradiated smoky quartzes that were produced from the Arkansas deposits.
 Viewed:  7456 Time(s)

JKB1069, Hydrothermal Solution Quartz (Irradiated).jpg

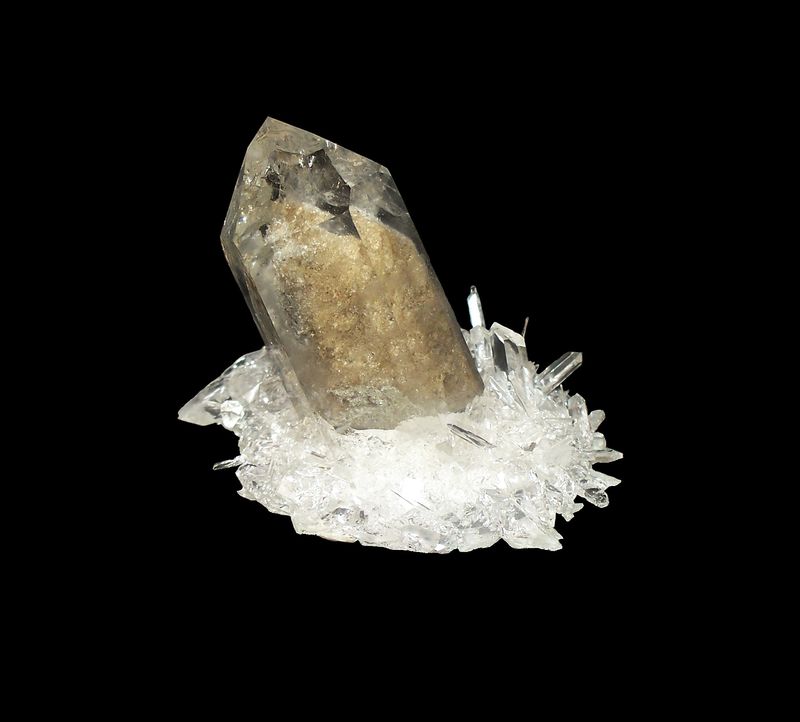

JKB1109, Hydrothermal Solution Quartz (Sand Inclusions).jpg
 Mineral: Hydrothermally Grown Solution Quartz
 Dimensions: 2.2 cm x 5 cm x 2.1 cm
 Description:
R&D XTALS LLC, Cleveland, Cuyahoga Co., Ohio, United States

Natural seed crystal that had inclusions of sand particles. Vlad mentioned to me at a meeting that somebody tested the inclusions to find that they were fluorescent under a shortwave ultraviolet light.
 Viewed:  7421 Time(s)

JKB1109, Hydrothermal Solution Quartz (Sand Inclusions).jpg

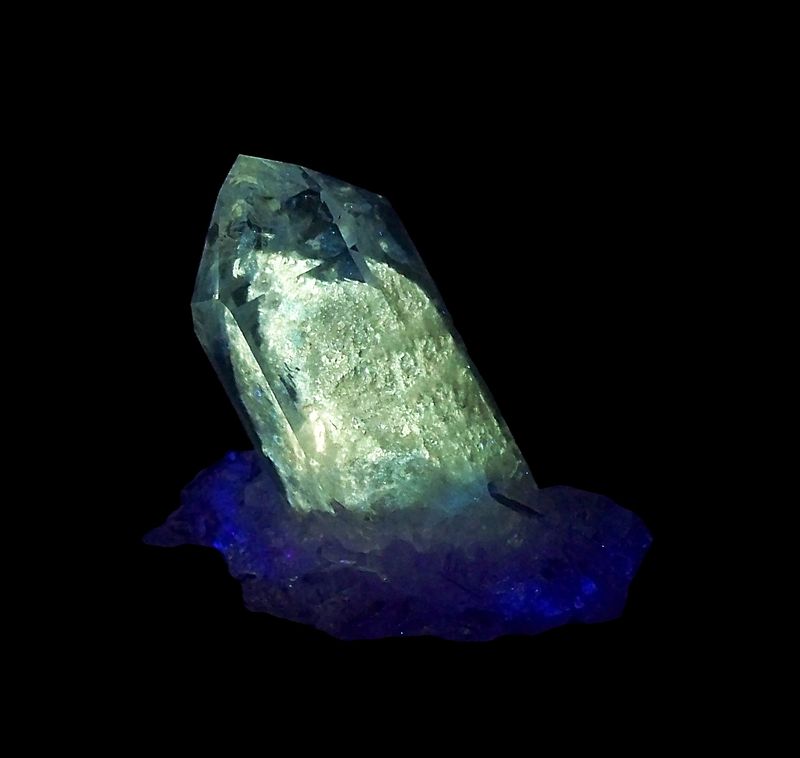

JKB1109, Hydrothermal Solution Quartz (Sand Inclusions), SW UV.jpg
 Mineral: Hydrothermally Grown Solution Quartz
 Description:
2.2 cm x 5 cm x 2.1 cm
R&D XTALS LLC, Cleveland, Cuyahoga Co., Ohio, United States

Natural seed crystal that had inclusions of sand particles. Vlad mentioned to me at a meeting that somebody tested the inclusions to find that they were fluorescent under a shortwave ultraviolet light.
 Viewed:  7431 Time(s)

JKB1109, Hydrothermal Solution Quartz (Sand Inclusions), SW UV.jpg

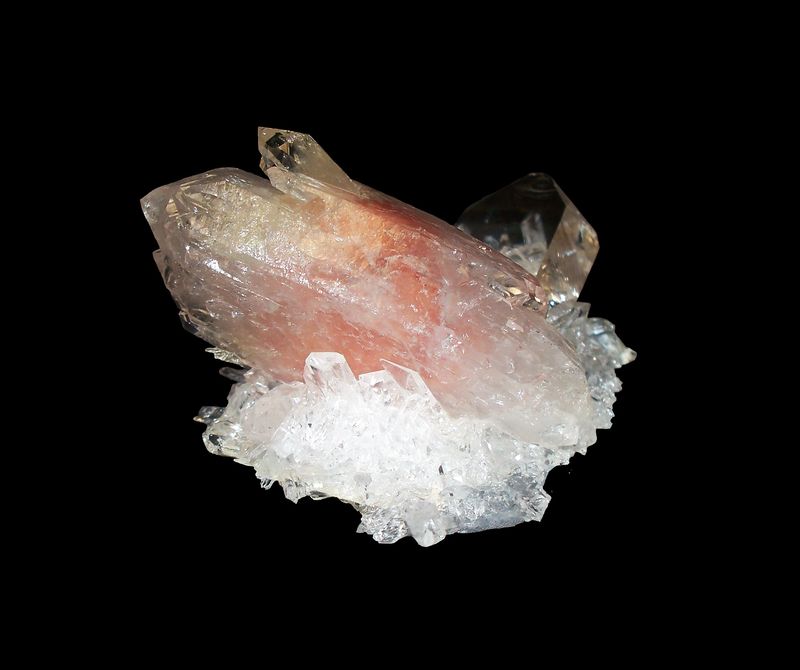

JKB1070, Hydrothermal Solution Quartz (Pecos Diamond).jpg
 Mineral: Hydrothermally Grown Solution Quartz
 Description:
Pecos River Valley, Chaves Co., New Mexico, USA
6.3 cm x 3.3 cm x 3.5 cm
R&D XTALS LLC, Cleveland, Cuyahoga Co., Ohio, United States

Vlad did an experiment on several “Pecos Diamond” quartzes to measure crystal growth. Pecos Diamonds have inclusions of hematite giving them their red color. Unlike the amethyst crystals that had been regrown, these crystals retained their color and inclusions. New growth on the crystals are clear.
 Viewed:  7421 Time(s)

JKB1070, Hydrothermal Solution Quartz (Pecos Diamond).jpg


Back to top
Reply to topic Reply with quote
Like
6
