 Posted: May 14, 2016 17:37 Post subject: Re: The MIM Museum in Beirut, Lebanon |
|
|
| Incredible specimens!!! The quartz gwindel from Switzerland and that stunning fluorite from Beura Quarries are my favourites from the recent post :)
|
|
| Back to top |
|
 |
MIM Museum
Joined: 04 Aug 2015
Posts: 167
Location: Beirut
|
| Posted: May 28, 2016 14:39 Post subject: The MIM Museum in Beirut, Lebanon - Images of the Collection / 64 |
|
|
Images of the Collection / 64

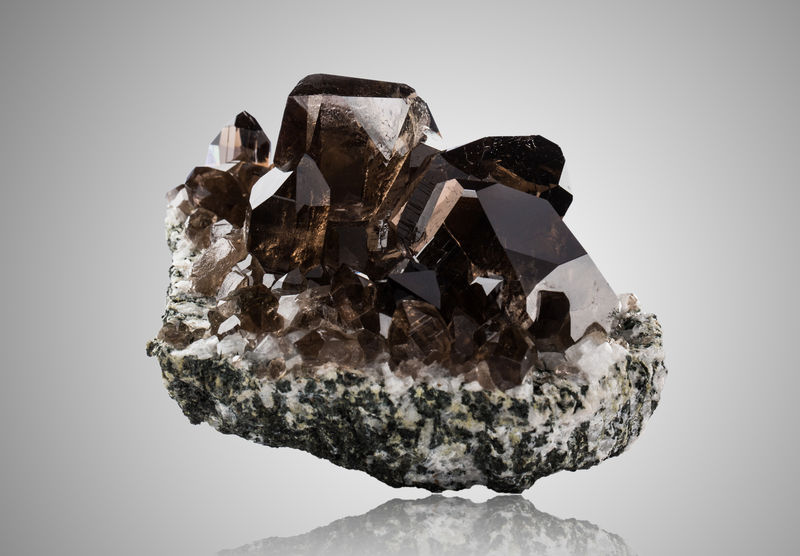

| Mineral: | Quartz (variety gwindel) |
| Locality: | | Zweite Motta, Giuv glacier (Giuv Gletscher), Val Giuv, Tujetsch (Tavetsch), Vorderrhein Valley, Grischun (Grisons; Graubünden), Switzerland |  |
|
| Dimensions: | 13,5 x 10,0 x 8,0 cm |
| Description: |
Main crystal size : 4,0 cm
Granite slab covered with smoky transparent and very bright quartz crystals, including a “closed” gwindel quartz (also known as "sugar quartz") in the center
MIM number 1667
Photographer : Augustin de Valence (Ainu) |
|
| Viewed: |
33929 Time(s) |
|
| Mineral: | Fluorite with Quartz, Feldspar (variety adularia) and Apatite (Group) |
| Locality: | | Göscheneralp, Göschenen Valley, Göschenen, Reuss Valley, Uri, Switzerland | |
|
| Dimensions: | 25,0 x 18,5 x 11,0 cm |
| Description: |
Brätschi, Göschener Tal, Kanton Uri, Switzerland
Main crystal size : 4,6 cm
Large granite slab covered on the upper side with well separated octahedra of pink fluorite showing a frosted appearance. Some leaning quartz crystals (the largest measuring 5.9 cm) are also present as well as small crystals of adularia and a small colorless apatite
MIM number 1668
Photographer : Augustin de Valence (Ainu) |
|
| Viewed: |
33962 Time(s) |
|

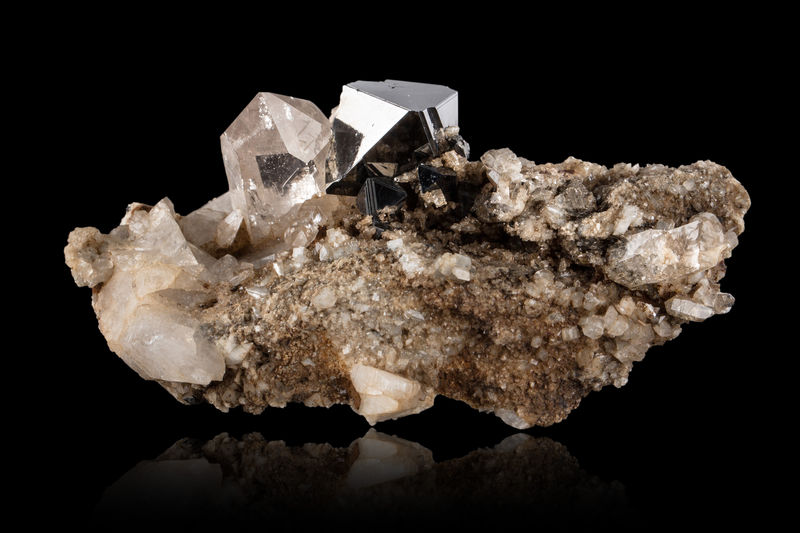

| Mineral: | Magnetite with Quartz |
| Locality: | | Alp Lercheltini area, Binn Valley (Binntal), Wallis (Valais), Switzerland | |
|
| Dimensions: | 5,0 x 4,0 x 1,5 cm |
| Description: |
Main crystal size : 2,6 cm
Intact black octahedral crystal with very smooth and glossy faces and a complex termination, developed on a matrix near a colorless quartz crystal measuring 3 cm
MIM number 1669
Photographer : Augustin de Valence (Ainu) |
|
| Viewed: |
34045 Time(s) |
|

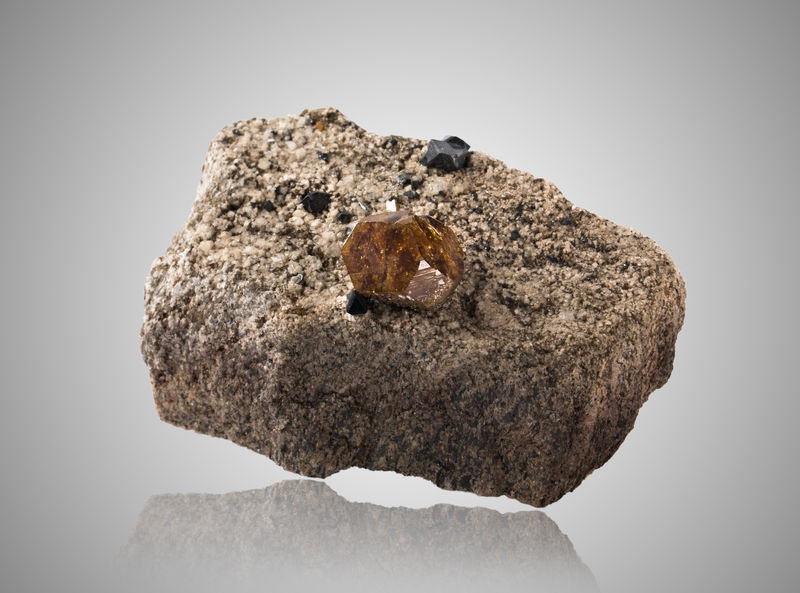

| Mineral: | Anatase with Magnetite |
| Locality: | | Alp Lercheltini area, Binn Valley (Binntal), Wallis (Valais), Switzerland | |
|
| Dimensions: | 7,0 x 4,5 x 3,5 cm |
| Description: |
Main crystal size : 1,6 cm
Doubly terminated slightly translucent crystal of golden yellow color with typical Binn habitus, developed on a matrix along with small octahedral crystals of magnetite (the largest measuring 0.6 cm)
MIM number 1670
Photographer : Augustin de Valence (Ainu) |
|
| Viewed: |
34051 Time(s) |
|

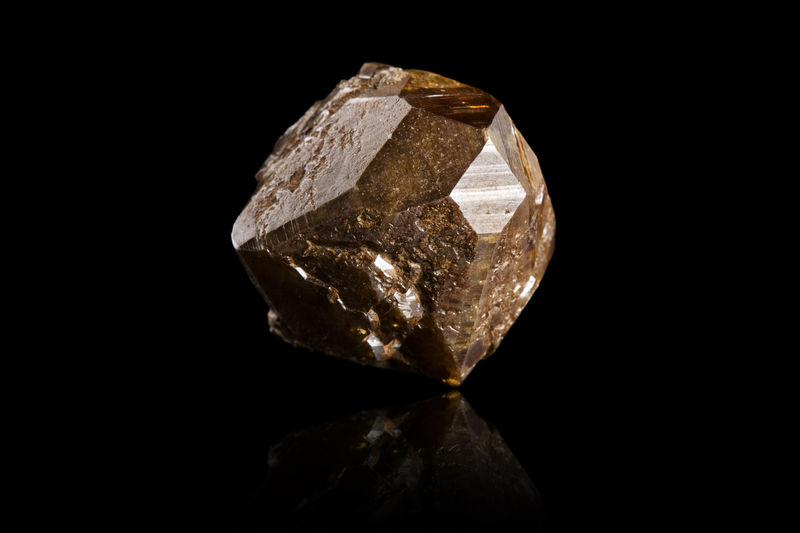

| Mineral: | Anatase with Magnetite |
| Locality: | | Alp Lercheltini area, Binn Valley (Binntal), Wallis (Valais), Switzerland | |
|
| Dimensions: | 2,0 x 2,5 x 3,5 cm |
| Description: |
Main crystal size : 3,2 cm
Large floating crystal of shiny golden yellow color showing the typical Binn habitus and a large number of facets. Small octahedral magnetite crystals are attached at the base.
MIM number 1671
Photographer : Augustin de Valence (Ainu) |
|
| Viewed: |
34123 Time(s) |
|

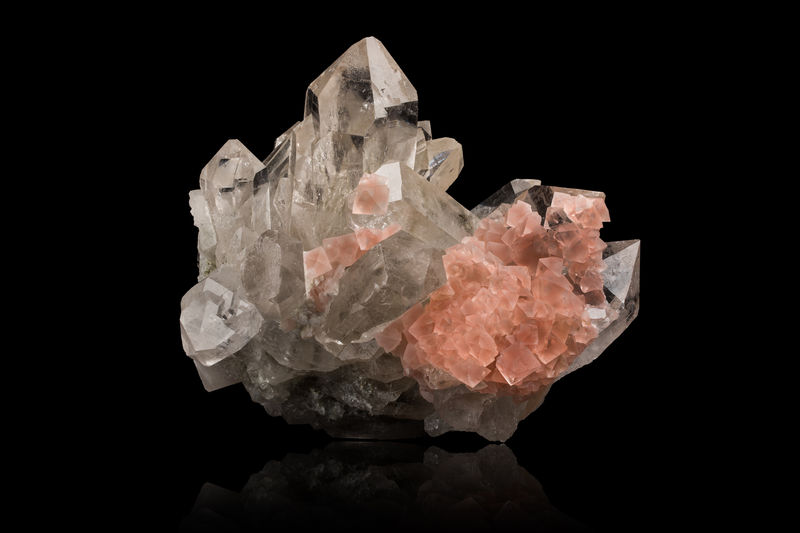

| Mineral: | Fluorite on Quartz |
| Locality: | | Gerstenegg-Sommerloch tunnel, Gerstenegg, Grimsel area, Hasli Valley, Bern, Switzerland | |
|
| Dimensions: | 22,0 x 18,0 x 19,0 cm |
| Description: |
Main crystal size : 2,3 cm
Bouquet of colorless quartz (the largest measuring 11.3 cm) partially covered with intact octahedral pink fluorite crystals. This sample was discovered in 1965 by the brother-in-law of Kaspar Fahner (first owner of this piece), then director of the Sommerloch tunnel project. The pink color is due to complex structural faults in the crystal network involving impurities such as YO2 groups. These defects seem to be formed at the relatively high temperature of 400 ° C.
MIM number 1672
Photographer : Augustin de Valence (Ainu) |
|
| Viewed: |
34243 Time(s) |
|

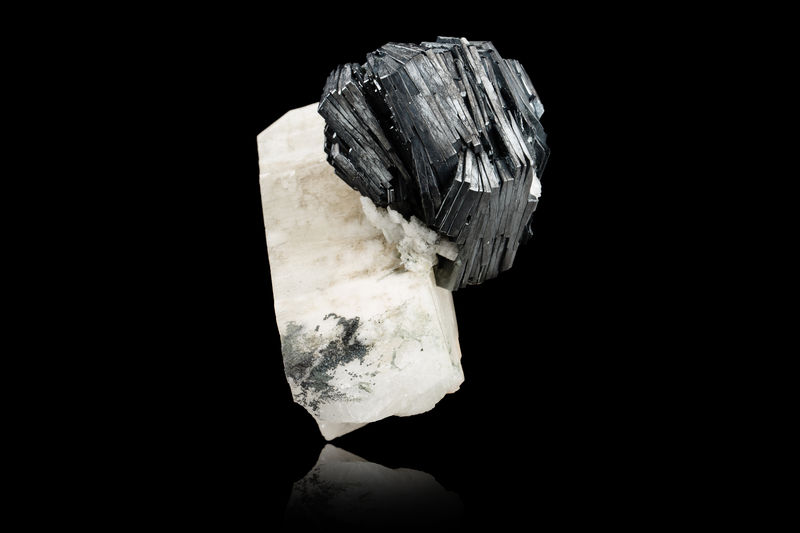

| Mineral: | Hematite on Orthoclase |
| Locality: | | Fibbia, Fontana, Central St Gotthard Massif, Leventina, Ticino (Tessin), Switzerland | |
|
| Dimensions: | 11,0 x 8,5 x 7,5 cm |
| Description: |
Main crystal size : 6,0 cm
Rosette consisting of intact shiny hematite blades sitting on the edge of a crystal of white 11 cm orthoclase 11 cm showing a Baveno twin
MIM number 1673
Photographer : Augustin de Valence (Ainu) |
|
| Viewed: |
33958 Time(s) |
|

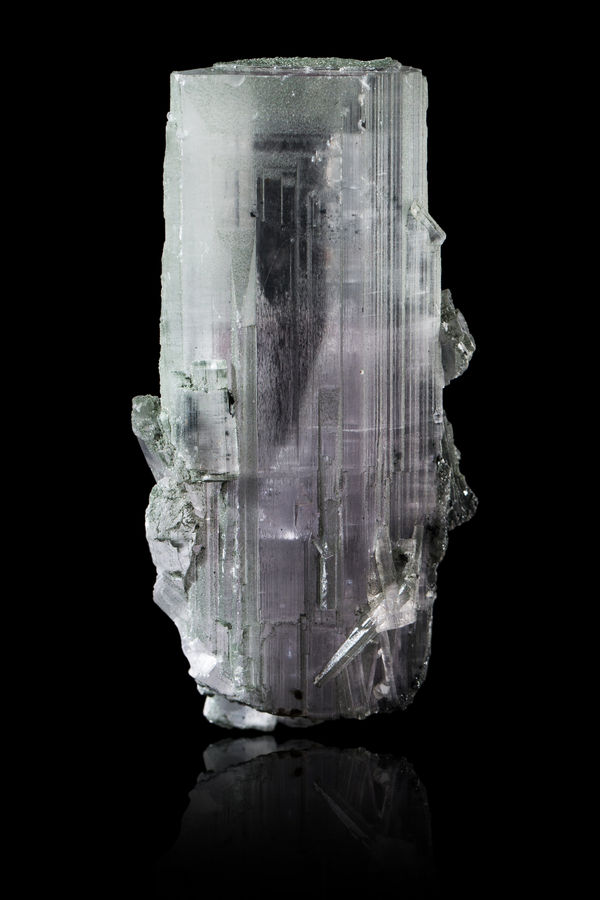

| Mineral: | Anhydrite with Chlorite |
| Locality: | | Simplon railway tunnel, Simplon pass area, Brig, Wallis (Valais), Switzerland | |
|
| Dimensions: | 4,0 x 3,0 x 8,0 cm |
| Description: |
Main crystal size : 7,9 cm
Almost colorless transparent crystal (with slight lavender tinge on the bottom), terminated on both sides, with partial chlorite coating
MIM number 1674
Photographer : Augustin de Valence (Ainu) |
|
| Viewed: |
34102 Time(s) |
|

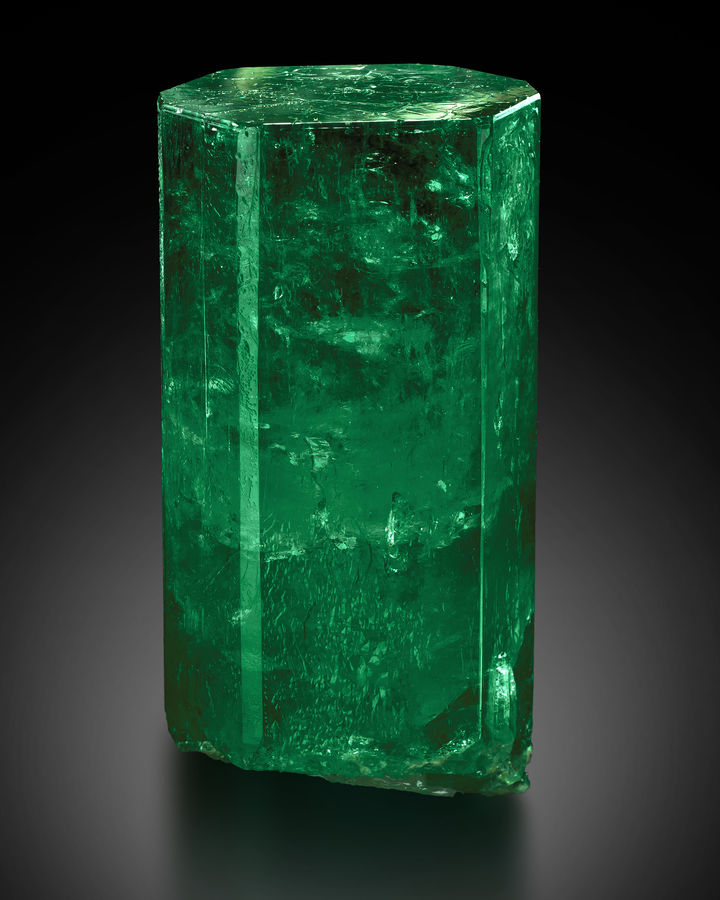

| Mineral: | Beryl (variety emerald) |
| Locality: | | La Pita mining district, Municipio Maripí, Western Emerald Belt, Boyacá Department, Colombia | |
|
| Dimensions: | 4,0 x 4,5 x 9,5 cm |
| Description: |
Main crystal size : 9,3 cm
Di-hexagonal prismatic emerald with a beautiful deep green color, transparent and featuring few inclusions in the upper 2/3, and translucent in the lower part
MIM number 1675
Photographer : James Elliott (FMI) |
|
| Viewed: |
34222 Time(s) |
|

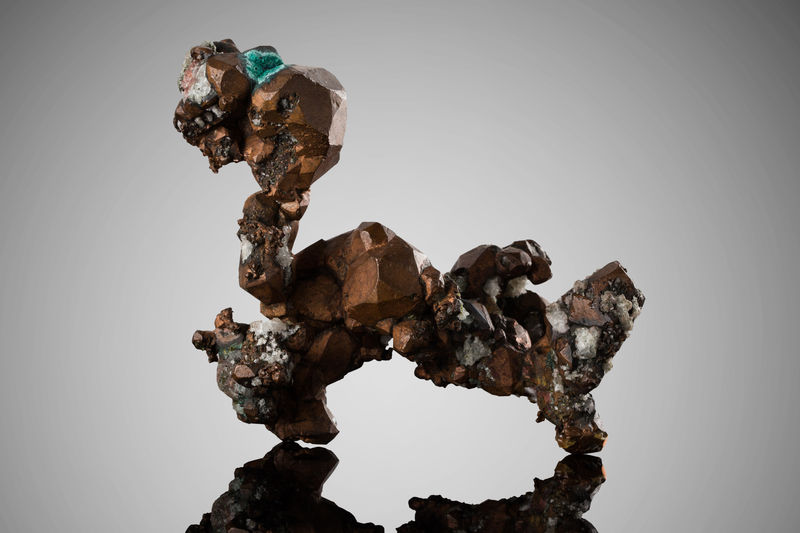

| Mineral: | Copper with Malachite |
| Locality: | | Central Mine, Central, Keweenaw County, Michigan, USA | |
|
| Dimensions: | 12,0 x 8,0 x 10,5 cm |
| Description: |
Main crystal size : 3,6 cm
Group of well-defined tetrahexahedral crystals having an overall appearance reminiscent of a poodle with a little malachite at the top, and small crystals of quartz along
MIM number 1676
Photographer : Augustin de Valence (Ainu) |
|
| Viewed: |
33955 Time(s) |
|
_________________
info @ mim.museum
Facebook: https://www.facebook.com/mim.museum/?fref=ts |
|
| Back to top |
|
|
Tobi
Site Admin
Joined: 07 Apr 2009
Posts: 4042
Location: Germany
|
| Posted: May 28, 2016 16:59 Post subject: Re: The MIM Museum in Beirut, Lebanon |
|
|
| I just can't find words for that 25 cm fluorite specimen from Göscheneralp!!! And also not for the 9,5 cm (really???) gemmy Colombian emerald ...
|
|
| Back to top |
|
|
Fiebre Verde
Joined: 11 Sep 2013
Posts: 938
Location: Paris Area
|
| Posted: May 29, 2016 05:19 Post subject: Re: The MIM Museum in Beirut, Lebanon |
|
|
| Tobi wrote: | | I just can't find words for that 25 cm fluorite specimen from Göscheneralp!!! And also not for the 9,5 cm (really???) gemmy Colombian emerald ... |
Small is beautiful but big can be better.
Was difficult not to notice this specimen during my visit to the MIM museum last year.
I too was amazed by the gemminess of this crystal considering that size and quality often don't mix in the mineral world - this is even more true with emeralds.
Not sure how this specimen has survived intact - crystals of this quality and size are normally faceted to produce large stones which fetch record prices per carat.
As per your question, given an average length of 4.25cm for the three a-axis, the total height in the photo looks closer to 8cm.
Calculating crystal dimensions from photos can be quite tricky and I certainly don't mean to minimize this one.
But at the end of the day, whether it's 8 or 9.5 cm tall doesn't make a big difference - this specimen belongs to a very special category in the mineral world.
Gérard
|
|
| Back to top |
|
|
MIM Museum
Joined: 04 Aug 2015
Posts: 167
Location: Beirut
|
| Posted: Jun 02, 2016 07:09 Post subject: Re: The MIM Museum in Beirut, Lebanon |
|
|
| Fiebre Verde wrote: | | Tobi wrote: | | I just can't find words for that 25 cm fluorite specimen from Göscheneralp!!! And also not for the 9,5 cm (really???) gemmy Colombian emerald ... |
Small is beautiful but big can be better.
Was difficult not to notice this specimen during my visit to the MIM museum last year.
I too was amazed by the gemminess of this crystal considering that size and quality often don't mix in the mineral world - this is even more true with emeralds.
Not sure how this specimen has survived intact - crystals of this quality and size are normally faceted to produce large stones which fetch record prices per carat.
As per your question, given an average length of 4.25cm for the three a-axis, the total height in the photo looks closer to 8cm.
Calculating crystal dimensions from photos can be quite tricky and I certainly don't mean to minimize this one.
But at the end of the day, whether it's 8 or 9.5 cm tall doesn't make a big difference - this specimen belongs to a very special category in the mineral world.
Gérard |
Gentlemen,
Thank you for your comment. The longest dimension of the crystal measured with a sliding caliper is 9.3 cm. Its mass is 278 grams.
As I am short-sighted, I tend to collect big crystals :-)
Salim
_________________
info @ mim.museum
Facebook: https://www.facebook.com/mim.museum/?fref=ts |
|
| Back to top |
|
|
Tobi
Site Admin
Joined: 07 Apr 2009
Posts: 4042
Location: Germany
|
| Posted: Jun 02, 2016 10:48 Post subject: Re: The MIM Museum in Beirut, Lebanon |
|
|
| MIM Museum wrote: | | As I am short-sighted, I tend to collect big crystals :-) |
I'm also short-sighted, maybe I should ask my optician to prescribe me some ... at the expense of health insurance ;-)
|
|
| Back to top |
|
|
Fiebre Verde
Joined: 11 Sep 2013
Posts: 938
Location: Paris Area
|
| Posted: Jun 02, 2016 13:46 Post subject: Re: The MIM Museum in Beirut, Lebanon |
|
|
| MIM Museum wrote: | | Fiebre Verde wrote: | | Tobi wrote: | | I just can't find words for that 25 cm fluorite specimen from Göscheneralp!!! And also not for the 9,5 cm (really???) gemmy Colombian emerald ... |
Small is beautiful but big can be better.
Was difficult not to notice this specimen during my visit to the MIM museum last year.
I too was amazed by the gemminess of this crystal considering that size and quality often don't mix in the mineral world - this is even more true with emeralds.
Not sure how this specimen has survived intact - crystals of this quality and size are normally faceted to produce large stones which fetch record prices per carat.
As per your question, given an average length of 4.25cm for the three a-axis, the total height in the photo looks closer to 8cm.
Calculating crystal dimensions from photos can be quite tricky and I certainly don't mean to minimize this one.
But at the end of the day, whether it's 8 or 9.5 cm tall doesn't make a big difference - this specimen belongs to a very special category in the mineral world.
Gérard |
Gentlemen,
Thank you for your comment. The longest dimension of the crystal measured with a sliding caliper is 9.3 cm. Its mass is 278 grams.
As I am short-sighted, I tend to collect big crystals :-)
Salim |
Mea Culpa!!
I knew I was taking a serious risk by assessing the size from a photo.
I think I will have to pay another visit to the MIM to get the size right for good.
Gérard
|
|
| Back to top |
|
|
MIM Museum
Joined: 04 Aug 2015
Posts: 167
Location: Beirut
|
| Posted: Jun 02, 2016 23:43 Post subject: Re: The MIM Museum in Beirut, Lebanon |
|
|
Parev Gérard
We will forgive you if you can convince Tobi to accompany you next time you make us the honor of a visit in Beirut.
Salim
_________________
info @ mim.museum
Facebook: https://www.facebook.com/mim.museum/?fref=ts |
|
| Back to top |
|
|
MIM Museum
Joined: 04 Aug 2015
Posts: 167
Location: Beirut
|
| Posted: Jun 04, 2016 12:43 Post subject: The MIM Museum in Beirut, Lebanon - Images of the Collection / 65 |
|
|
Images of the Collection / 65

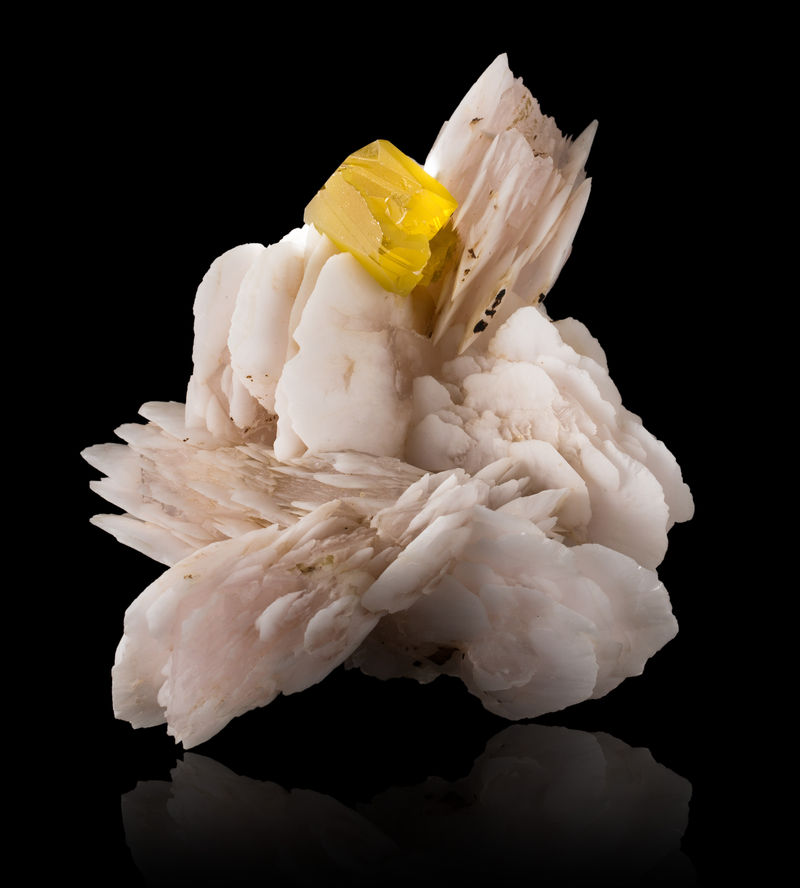

| Mineral: | Sulphur on Aragonite |
| Locality: | | Cozzo Disi Mine, Casteltermini, Agrigento (Girgenti) Province, Sicily, Italy | |
|
| Dimensions: | 5,5 x 5,0 x 6,0 cm |
| Description: |
Main crystal size : 4,7 cm
Perfect translucent bright yellow crystal on a matrix of aragonite with some small side Sulphur crystals
MIM number 1677
Photographer : Augustin de Valence (Ainu) |
|
| Viewed: |
33398 Time(s) |
|

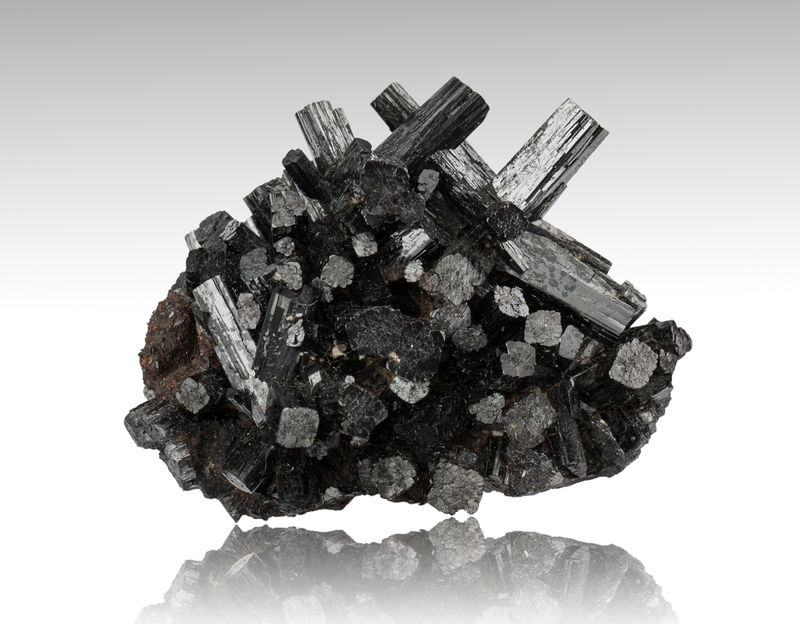

| Mineral: | Manganite |
| Locality: | | Ilfeld, Nordhausen, Nordhausen District, Thuringia/Thüringen, Germany | |
|
| Dimensions: | 8,5 x 6,5 x 5,0 cm |
| Description: |
Main crystal size : 3,0 cm
Plate covered with intact black and very shiny crystals quite separated from one another
MIM number 1678
Photographer : Augustin de Valence (Ainu) |
|
| Viewed: |
33410 Time(s) |
|

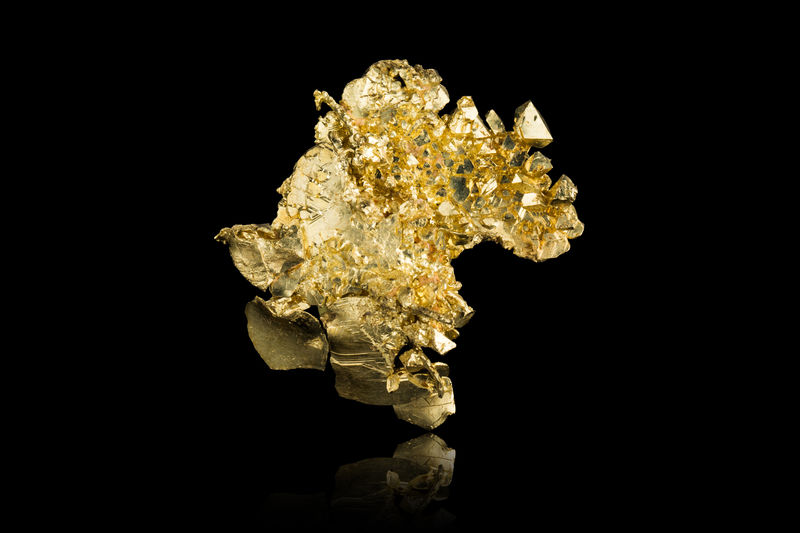

| Mineral: | Gold |
| Locality: | | Eureka Mine (Eureka & Grizzly Mine), Big Oak Flat, Big Oak Flat District, Tuolumne County, California, USA | |
|
| Dimensions: | 4,0 x 1,5 x 3,0 cm |
| Description: |
Main crystal size : 1,4 cm
Plate made of very bright yellow crystals of different habits, some being platy, and others very sharply octahedral (0.6 cm max)
MIM number 1679
Photographer : Augustin de Valence (Ainu) |
|
| Viewed: |
33346 Time(s) |
|
| Mineral: | Nagyagite with Quartz |
| Locality: | | Sacarîmb (Nagyág), Deva, Hunedoara, Romania | |
|
| Dimensions: | 12,0 x 7,5 x 3,5 cm |
| Description: |
Main crystal size : 1,8 cm
Plate covered with shiny crystals growing amidst micro-crystalline quartz; these crystals were found as is and have not been acid etched as it is often the case for this species.
MIM number 1680
Photographer : Augustin de Valence (Ainu) |
|
| Viewed: |
33316 Time(s) |
|

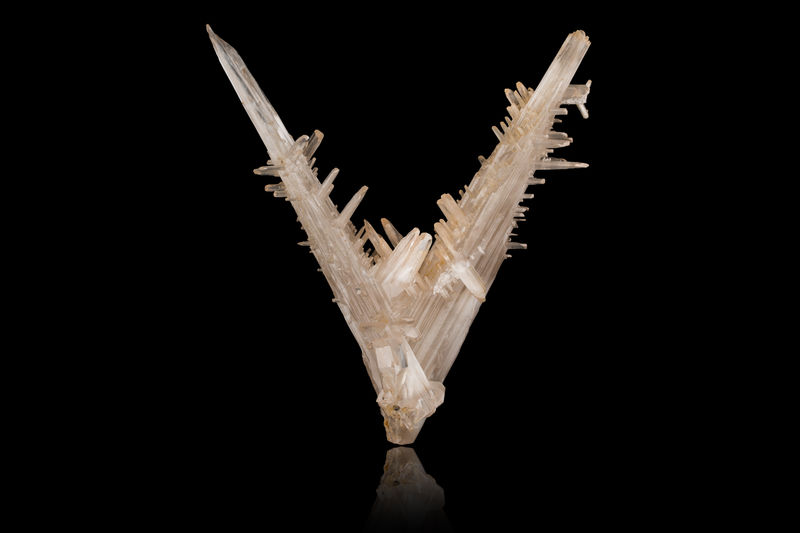

| Mineral: | Cerussite |
| Locality: | | Touissit, Touissit District, Jerada Province, Oriental Region, Morocco | |
|
| Dimensions: | 9,0 x 4,0 x 9,0 cm |
| Description: |
Main crystal size : 9,7 cm
Shiny V shaped twin with both arms covered with several small crystals which have grown by making a 60° angle. A small very bright and clear crystal sits at the base of the V. One of the branches of the V is very well terminated. The other one bears traces of the matrix against which it has grown.
MIM number 1681
Photographer : Augustin de Valence (Ainu) |
|
| Viewed: |
33347 Time(s) |
|
| Mineral: | Polybasite |
| Locality: | | Mina Chispas, Arizpe, Municipio de Arizpe, Sonora, Sonora, Mexico | |
|
| Dimensions: | 5,0 x 5,0 x 7,5 cm |
| Description: |
Main crystal size : 5,5 cm
Group of well-defined shiny pseudo-hexagonal crystals
MIM number 1682
Photographer : Augustin de Valence (Ainu) |
|
| Viewed: |
33380 Time(s) |
|

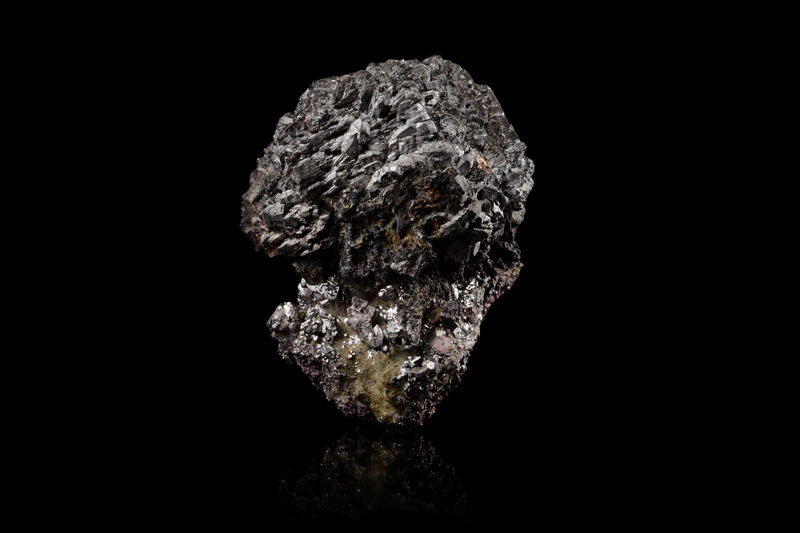

| Mineral: | Nickeline and Nickelskutterudite |
| Locality: | | Pöhla, Schwarzenberg District, Erzgebirgskreis, Saxony/Sachsen, Germany | |
|
| Dimensions: | 4,0 x 4,0 x 5,0 cm |
| Description: |
Main crystal size : 0,5 cm
Sphere consisting of small silver hexagonal crystals which are very tightly packed against one another, with the base consisting of small bright crystals of nickel-skutterudite (0.5 cm max)
MIM number 1683
Photographer : Augustin de Valence (Ainu) |
|
| Viewed: |
33330 Time(s) |
|

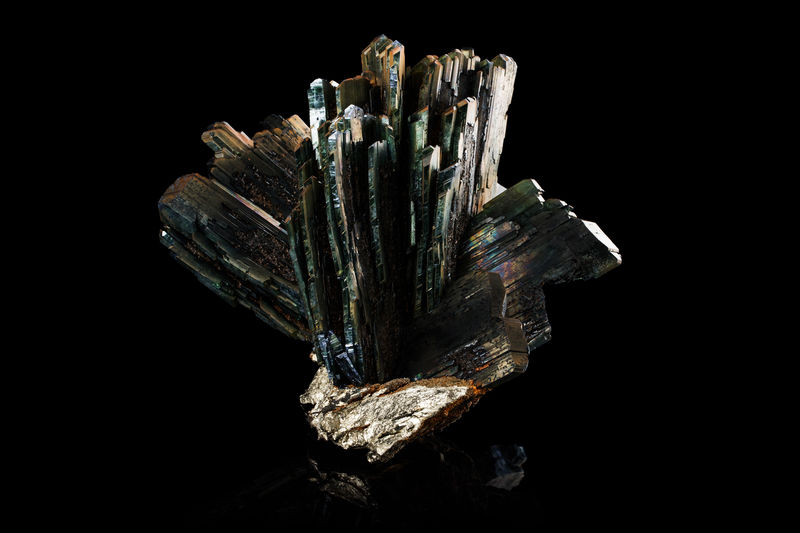

| Mineral: | Vivianite on Pyrite |
| Locality: | | Huanuni Mine, Huanuni, Dalence Province, Oruro Department, Bolivia | |
|
| Dimensions: | 22,5 x 27,0 x 20,0 cm |
| Description: |
Main crystal size : 16,0 cm
Sheaves of large translucent deep green crystals partly coated with oxides, on a matrix made of micro-crystalline pyrite
MIM number 1684
Photographer : Augustin de Valence (Ainu) |
|
| Viewed: |
33353 Time(s) |
|

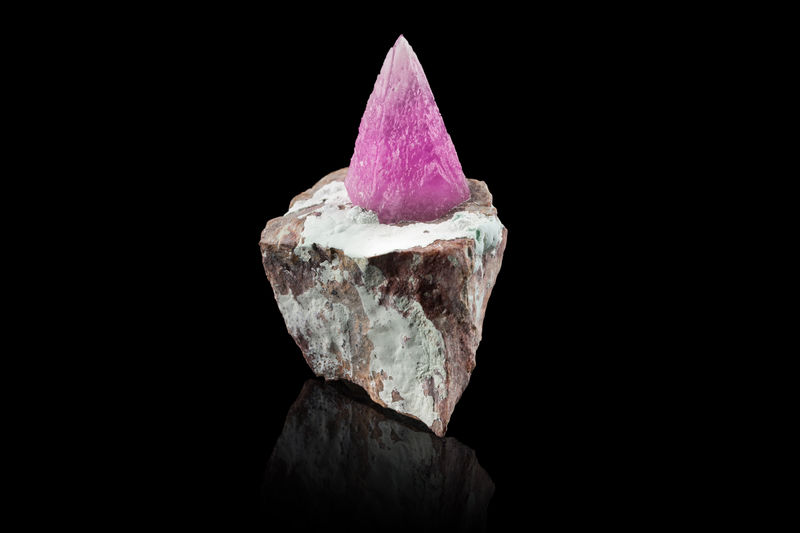

| Mineral: | Calcite (variety cobaltoan calcite) with Plancheite |
| Locality: | | Mashamba West Mine, Kolwezi District, Lualaba, Katanga Copper Crescent, Katanga (Shaba), Democratic Republic of the Congo (Zaire) | |
|
| Dimensions: | 6,5 x 5,0 x 9,5 cm |
| Description: |
Main crystal size : 4,7 cm
Translucent dark pink perfectly formed crystal sitting on a piece of floating matrix partly coated with a little plancheite
MIM number 1685
Photographer : Augustin de Valence (Ainu) |
|
| Viewed: |
33303 Time(s) |
|
| Mineral: | Chrysocolla |

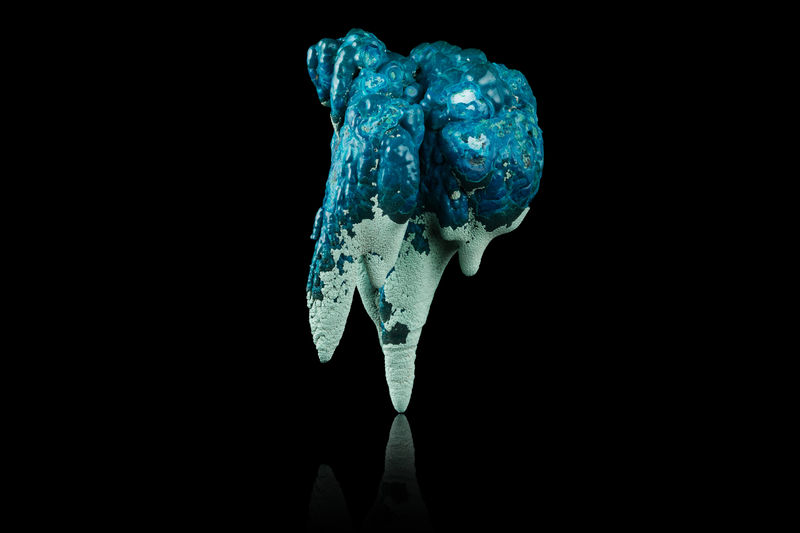

| Locality: | | L'Etoile du Congo Mine (Star of the Congo Mine), Lubumbashi (Elizabethville), Katanga Copper Crescent, Haut-Katanga (Shaba), Democratic Republic of the Congo (Zaire) | |
|
| Dimensions: | 6,5 x 5,5 x 10,5 cm |
| Description: |
Main crystal size : 0,0 cm
Floating group of shiny stalactites of a beautiful blue-green color partly coated with a thin layer of another mineral (probably plancheite)
MIM number 1686
Photographer : Augustin de Valence (Ainu) |
|
| Viewed: |
33284 Time(s) |
|
_________________
info @ mim.museum
Facebook: https://www.facebook.com/mim.museum/?fref=ts |
|
| Back to top |
|
|
James Catmur
Site Admin
Joined: 14 Sep 2006
Posts: 1248
Location: Cambridge
|
| Posted: Jun 05, 2016 01:28 Post subject: Re: The MIM Museum in Beirut, Lebanon |
|
|
| Amazing Sulphur.
|
|
| Back to top |
|
|
MIM Museum
Joined: 04 Aug 2015
Posts: 167
Location: Beirut
|
| Posted: Jun 10, 2016 16:58 Post subject: The MIM Museum in Beirut, Lebanon - Images of the Collection / 66 |
|
|
Images of the Collection / 66

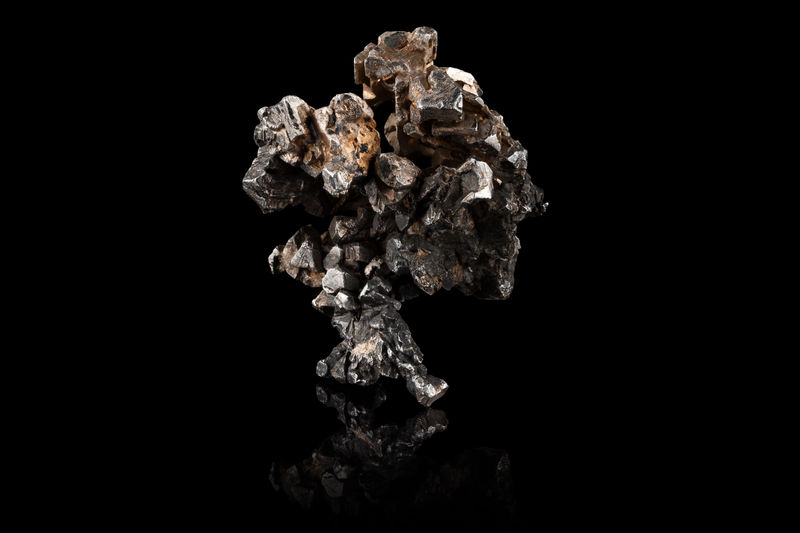

| Mineral: | Silver |
| Locality: | | Kongsberg mining district, Kongsberg, Norway | |
|
| Dimensions: | 5,0 x 5,5 x 7,0 cm |
| Description: |
Main crystal size : 2,3 cm
Group of sharp crystals exhibiting cubic, modified cubic or hoppered habits, with at least one crystal showing the spinel twin. This is quite unusual at the Kongsberg mine where silver generally occurs as wires. Some calcite remains in the crevices.
MIM number 1687
Photographer : Augustin de Valence (Ainu) |
|
| Viewed: |
32883 Time(s) |
|

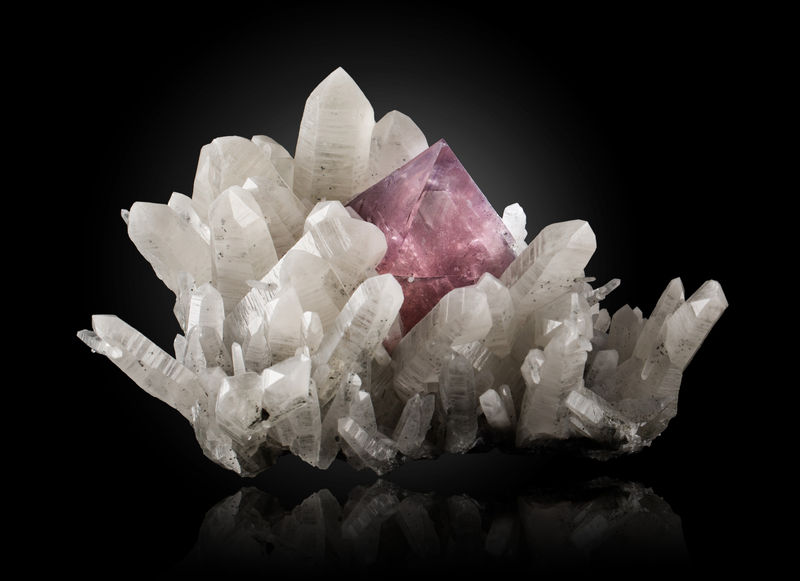

| Mineral: | Fluorite on Quartz |
| Locality: | | Shijiangshan Mine, Yinwu, Linxi, Ulanhad League, Inner Mongolia Autonomous Region, China | |
|
| Dimensions: | 18,0 x 14,0 x 9,0 cm |
| Description: |
Main crystal size : 5,4 cm
Transparent and very well formed octahedron of a pink-red color (that changes depending on the type of light). The crystal sits amidst white quartz crystals showing horizontal striations
MIM number 1688
Photographer : Augustin de Valence (Ainu) |
|
| Viewed: |
33013 Time(s) |
|

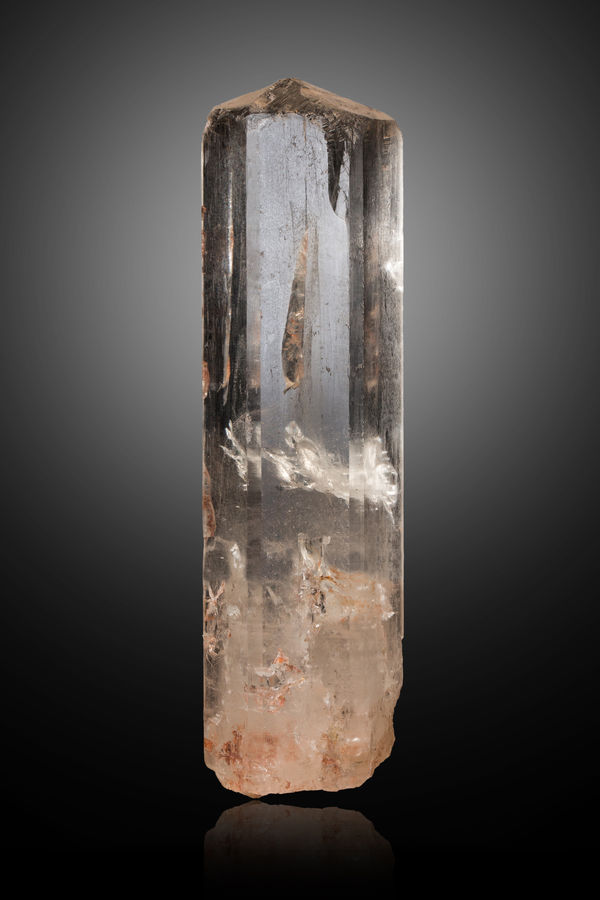

| Mineral: | Phenakite |
| Locality: | | Mandrosonoro, Ambatofinandrahana District, Amoron'i Mania Region, Fianarantsoa Province, Madagascar | |
|
| Dimensions: | 5,5 x 5,0 x 20,0 cm |
| Description: |
Main crystal size : 20,0 cm
Large transparent colorless and doubly terminated crystal showing a di-hexagonal cross section (with alternating of wide and narrow faces). Some internal veils are present. The top clearly shows the classical phenakite twinning with the reentrant angles and striations in alternating directions between adjacent faces.
MIM number 1689
Photographer : Augustin de Valence (Ainu) |
|
| Viewed: |
32953 Time(s) |
|

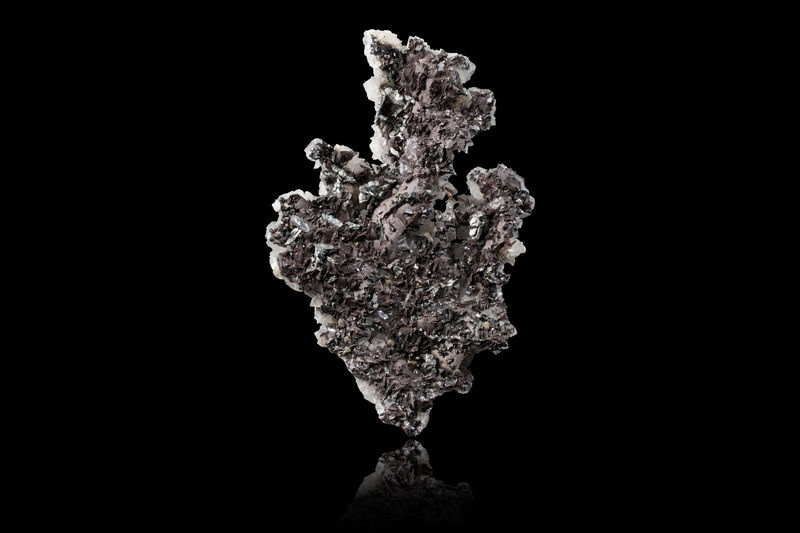

| Mineral: | Semseyite with Calcite and Freibergite |
| Locality: | | Baia Sprie Mine, Baia Sprie, Maramures, Romania | |
|
| Dimensions: | 12,5 x 3,5 x 20,0 cm |
| Description: |
Main crystal size : 1,6 cm
Floating plate consisting of white lenticular calcite crystals topped with shiny semseyite crystals, small tetrahedra of freibergite (max 0.5 cm) and another brown sulfide
MIM number 1690
Photographer : Augustin de Valence (Ainu) |
|
| Viewed: |
32964 Time(s) |
|

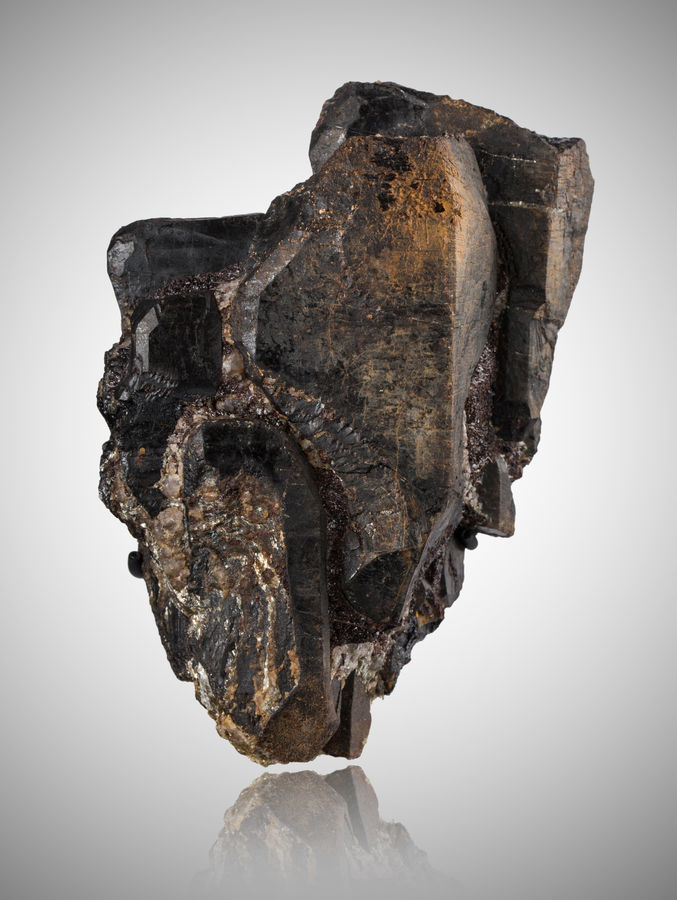

| Mineral: | Gadolinite |
| Locality: | | Slobrekka Pegmatite, Frikstad, Iveland, Aust-Agder, Norway | |
|
| Dimensions: | 9,0 x 14,5 x 8,0 cm |
| Description: |
Main crystal size : 9,6 cm
Large group of brown crystals which are well formed for the species, the smaller crystals being even sharper than the large ones
MIM number 1691
Photographer : Augustin de Valence (Ainu) |
|
| Viewed: |
32933 Time(s) |
|
| Mineral: | Sphalerite on Calcite |
| Locality: | | Hexigten Banner (Kèshíkèténg Qí), Chifeng (Ulanhad), Inner Mongolia Autonomous Region, China | |
|
| Dimensions: | 13,5 x 18,0 x 9,0 cm |
| Description: |
Main crystal size : 4,4 cm
Matt yellow translucent well-formed crystal sitting on a plate made of lenticular white calcite
MIM number 1692
Photographer : Augustin de Valence (Ainu) |
|
| Viewed: |
32929 Time(s) |
|
| Mineral: | Ferberite |
| Locality: | | Viloco Mine, San Antonio Section, Loayza Province, La Paz Department, Bolivia | |
|
| Dimensions: | 17,0 x 17,0 x 12,0 cm |
| Description: |
Main crystal size : 9,3 cm
Two large shiny black prismatic crystals parallel to each other, sitting on a matrix made of quartz crystals topped with tufts of a gray sulfide
MIM number 1694
Photographer : James Elliott (FMI) |
|
| Viewed: |
32958 Time(s) |
|

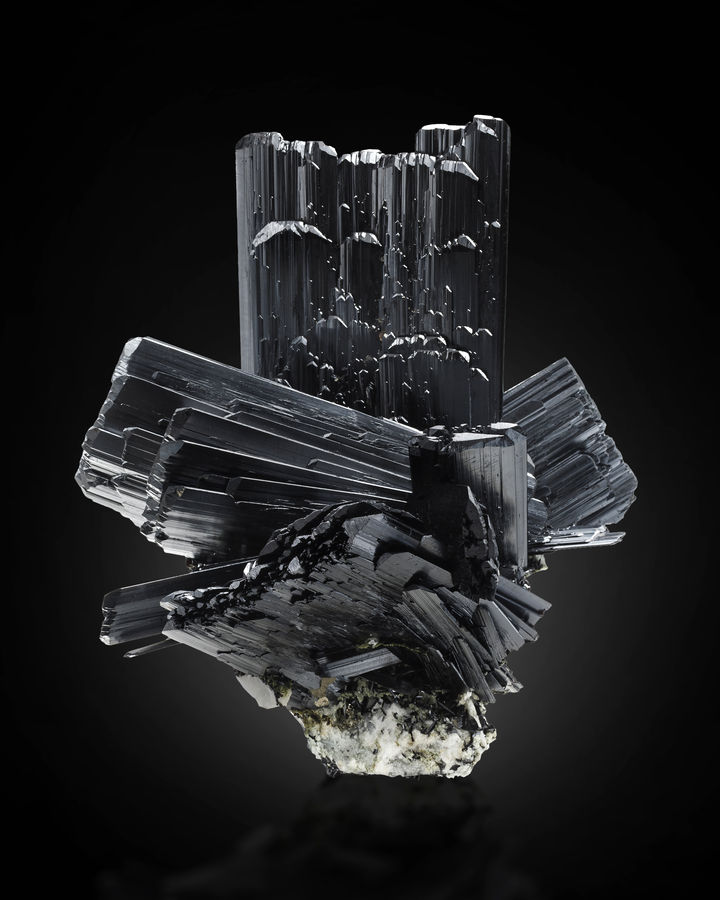

| Mineral: | Ferberite |
| Locality: | | Yaogangxian Mine, Yizhang, Chenzhou Prefecture, Hunan Province, China | |
|
| Dimensions: | 12,0 x 12,0 x 10,0 cm |
| Description: |
Main crystal size : 9,6 cm
Tufts of perfectly formed black and shiny ferberite blades on a thin matrix
MIM number 1695
Photographer : James Elliott (FMI) |
|
| Viewed: |
32988 Time(s) |
|

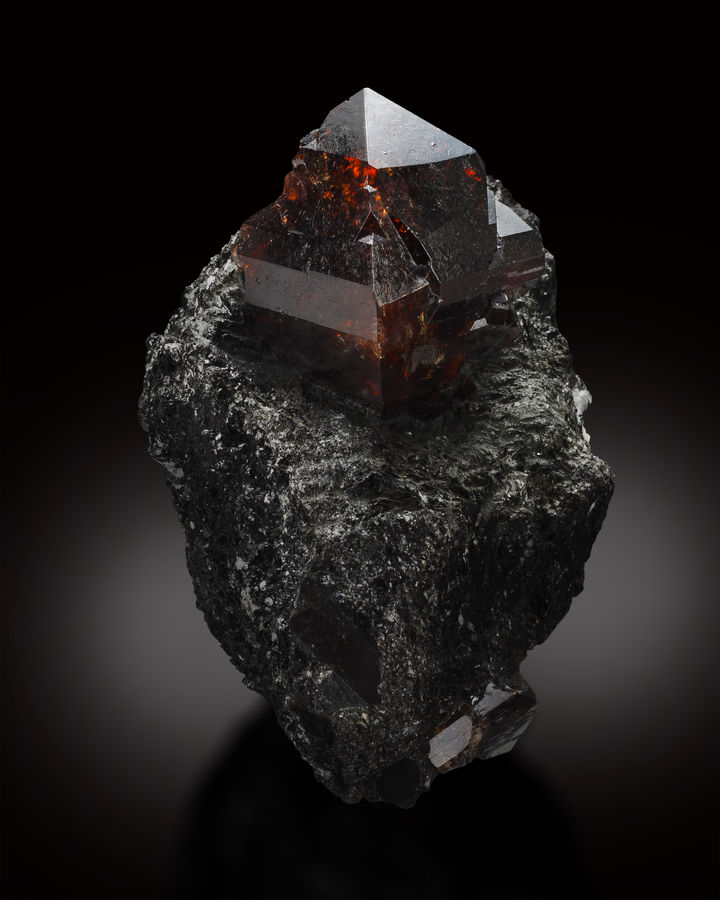

| Mineral: | Zircon on Biotite |
| Locality: | | Store Kufjord, Seiland Island, Alta, Finnmark, Norway | |
|
| Dimensions: | 9,5 x 6,5 x 7,5 cm |
| Description: |
Main crystal size : 4,0 cm
Very sharp slightly translucent bi-pyramidal crystal rising from a black biotite matrix with a smaller zircon crystal at the base
MIM number 1697
Photographer : James Elliott (FMI) |
|
| Viewed: |
32913 Time(s) |
|

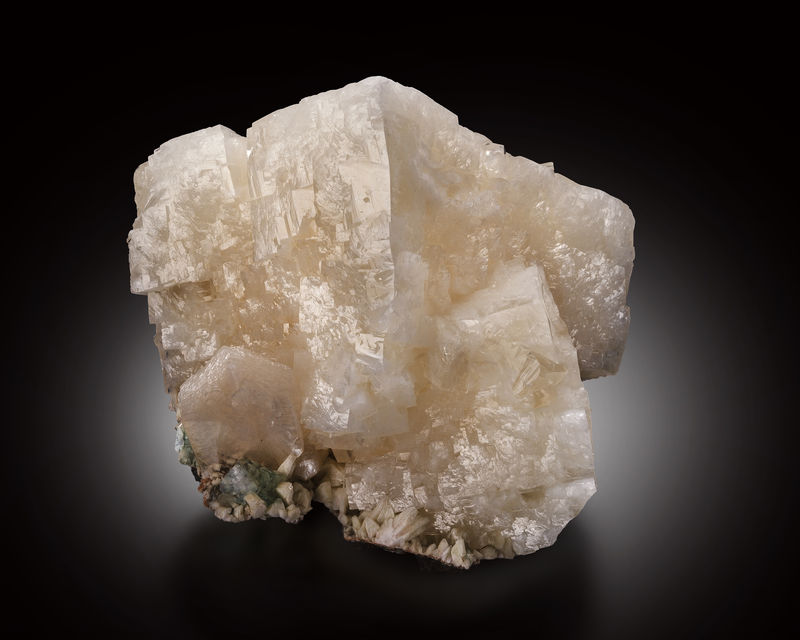

| Mineral: | Chabazite-Ca with Stilbite-Ca |
| Locality: | | Nashik District (Nasik), Maharashtra, India | |
|
| Dimensions: | 10,0 x 8,0 x 7,5 cm |
| Description: |
Main crystal size : 9,0 cm
Large pseudo-rhombohedral beige color crystal standing on a thin basalt slab with a stilbite crystal near the base
MIM number 1698
Photographer : James Elliott (FMI) |
|
| Viewed: |
32888 Time(s) |
|
_________________
info @ mim.museum
Facebook: https://www.facebook.com/mim.museum/?fref=ts |
|
| Back to top |
|
|
Tobi
Site Admin
Joined: 07 Apr 2009
Posts: 4042
Location: Germany
|
| Posted: Jun 11, 2016 00:59 Post subject: Re: The MIM Museum in Beirut, Lebanon - Images of the Collection / 66 |
|
|
| MIM Museum wrote: | Fluorite
Locality: Shijiangshan Mine, Linxi, Ulanhad League, Inner Mongolia A.R., China
Dimensions: 18,0 x 14,0 x 9,0 cm |
What a perfectly balanced specimen with that "glowing" octahedron at the center, surrounded by those quartz crystals - an outstanding beauty!
The other specimens are of course also great ;-)
|
|
| Back to top |
|
|
MIM Museum
Joined: 04 Aug 2015
Posts: 167
Location: Beirut
|
| Posted: Jul 02, 2016 15:15 Post subject: The MIM Museum in Beirut, Lebanon - Images of the Collection / 67 |
|
|
Images of the Collection / 67

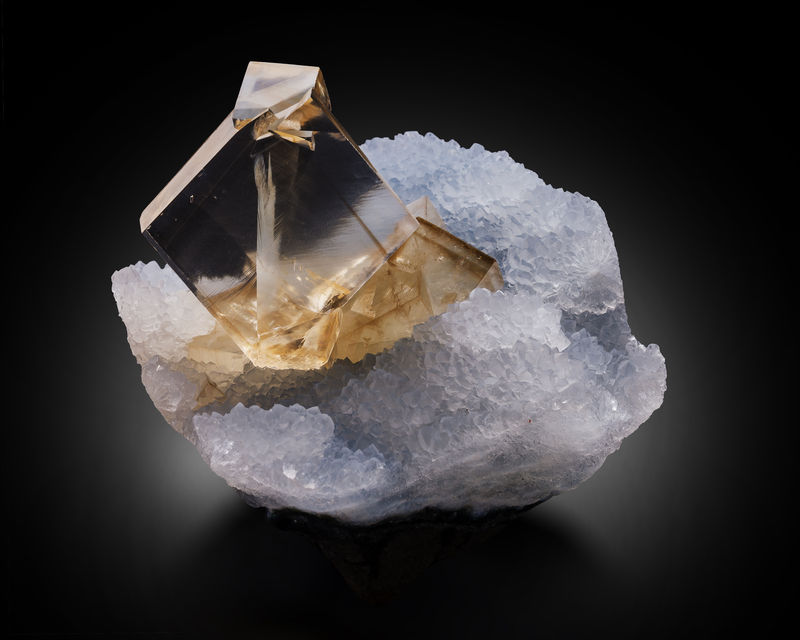

| Mineral: | Calcite on Quartz (chalcedony variety) |
| Locality: | | Jalgaon District, Maharashtra, India | |
|
| Dimensions: | 7,0 x 7,0 x 8,0 cm |
| Description: |
Main crystal size : 3,4 cm
Clear transparent amber colored twin sitting on a slightly blue chalcedony matrix coating a basalt base
MIM number 1699
Photographer : James Elliott (FMI) |
|
| Viewed: |
32021 Time(s) |
|

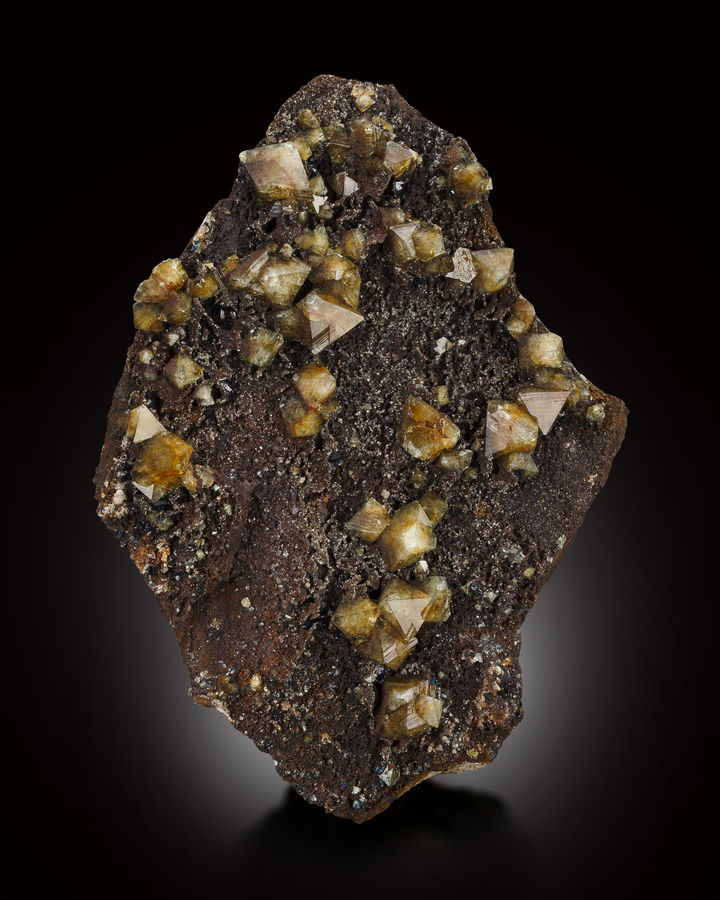

| Mineral: | Wardite |
| Locality: | | Big Fish River, Dawson mining district, Yukon Territory, Canada | |
|
| Dimensions: | 12,5 x 9,0 x 3,5 cm |
| Description: |
Main crystal size : 1,4 cm
Brown plate covered with perfectly formed tan colored small bi-pyramidal crystals
MIM number 1700
Photographer : James Elliott (FMI) |
|
| Viewed: |
31901 Time(s) |
|

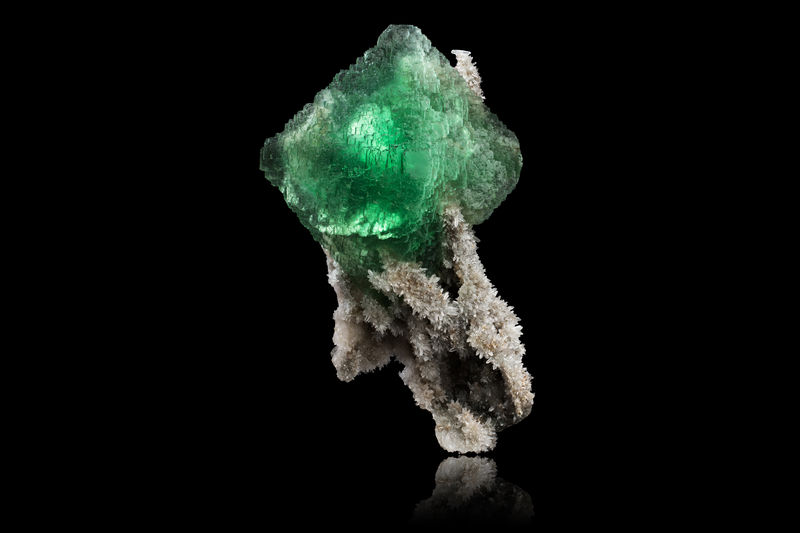

| Mineral: | Fluorite on Quartz |
| Locality: | | Ninghua, Sanming Prefecture, Fujian Province, China | |
|
| Dimensions: | 15,0 x 15,0 x 23,0 cm |
| Description: |
Main crystal size : 14,4 cm
Large translucent deep green octahedron perched on a column of small quartz needles. The faces of the octahedron show heavily stepped growth which imparts it the appearance of a Mayan pyramid.
MIM number 1701
Photographer : Augustin de Valence (Ainu) |
|
| Viewed: |
31893 Time(s) |
|

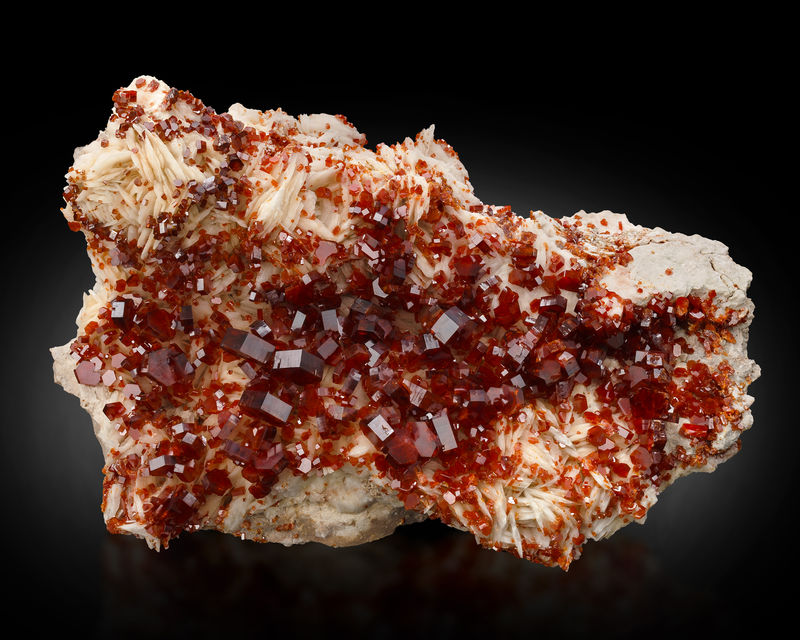

| Mineral: | Vanadinite on Barite |
| Locality: | | Mibladen (Mibladen mining district), Midelt, Midelt Province, Drâa-Tafilalet Region, Morocco | |
|
| Dimensions: | 25,0 x 17,0 x 10,0 cm |
| Description: |
Main crystal size : 1,9 cm
Deep red perfectly shaped vanadinite crystals sprinkled on a matrix made of white Baryte crests. The vanadinites are well separated and standing on the crests, which accentuates the contrast between red and white. The group seems to be a floater.
MIM number 1702
Photographer : James Elliott (FMl) |
|
| Viewed: |
31896 Time(s) |
|

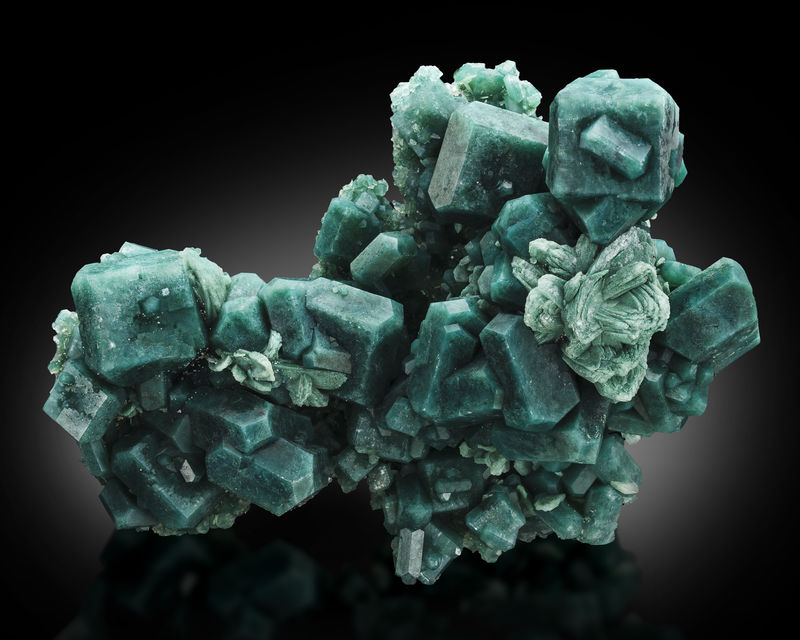

| Mineral: | Fluorapophyllite-(K) with Celadonite inclusions |
| Locality: | | Ahmadnagar District, Maharashtra, India | |
|
| Dimensions: | 17,5 x 13,0 x 13,0 cm |
| Description: |
Main crystal size : 3,3 cm
Floating group of shiny tabular crystals of apophyllite included with celadonite; the latter makes the apophyllite opaque and imparts it a bluish color
MIM number 1703
Photographer : James Elliott (FMI) |
|
| Viewed: |
31973 Time(s) |
|

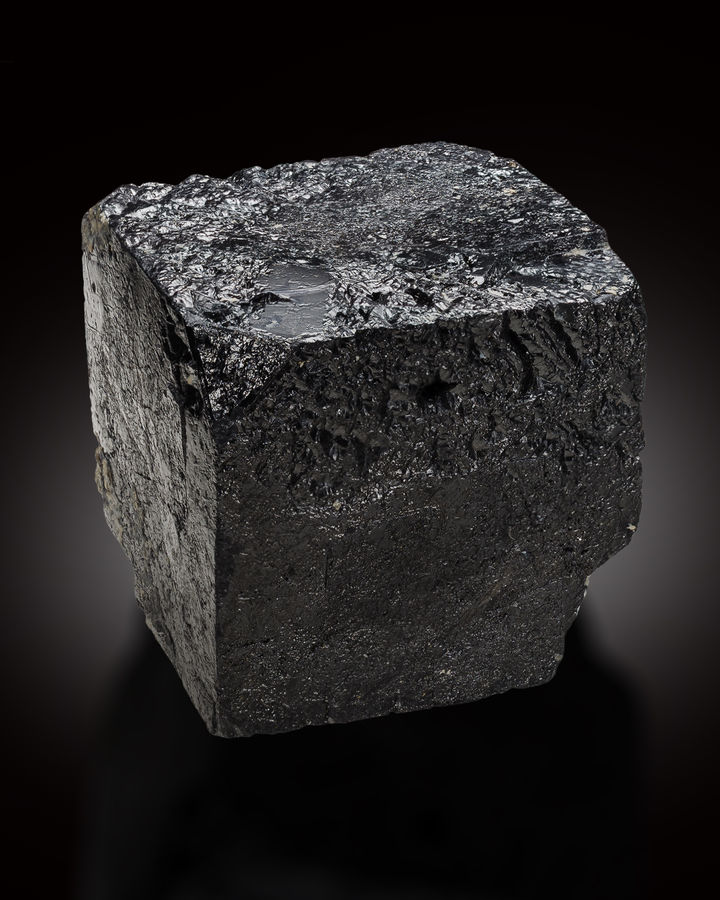

| Mineral: | Thorianite with Mica |
| Locality: | | Betroka District, Anosy Region, Madagascar | |
|
| Dimensions: | 2,5 x 2,0 x 2,0 cm |
| Description: |
Main crystal size : 3,3 cm
Shiny intact black cube with a beveled corner and a diametrically opposite corner showing stepped growth and remnants of mica blades
MIM number 1704
Photographer : James Elliott (FMI) |
|
| Viewed: |
31870 Time(s) |
|

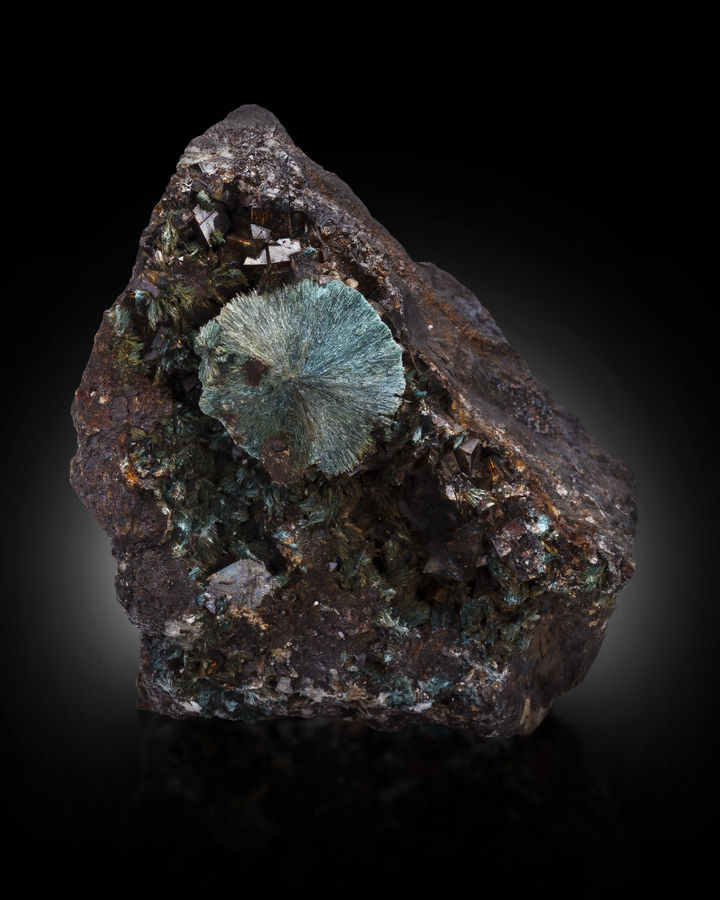

| Mineral: | Gormanite on Siderite |
| Locality: | | Rapid Creek area, Dawson mining district, Yukon Territory, Canada | |
|
| Dimensions: | 5,0 x 5,0 x 3,0 cm |
| Description: |
Main crystal size : 1,0 cm
Fibro-radiated greenish gray crystals forming a 1.8 cm diameter wheel sitting on a matrix made of small siderite rhombohedra
MIM number 1705
Photographer : James Elliott (FMI) |
|
| Viewed: |
31832 Time(s) |
|
| Mineral: | Opal |
| Locality: | | 6 Mile Field, Lightning Ridge, Finch County, New South Wales, Australia | |
|
| Dimensions: | 2,5 x 2,5 x 1,0 cm |
| Description: |
Stone shaped like a triangle (31.02 cts) with rounded edges, with a high dome opalized surface consisting of sharply defined small polygonal patches with a strong play of colors mainly red / crimson. The color set is very different depending on the nature of incident light (fluorescent, incandescent or LED) and the angle of incidence, and the red flashes more or less marked.
MIM number 1706
Photographer : Augustin de Valence (Ainu) |
|
| Viewed: |
31853 Time(s) |
|

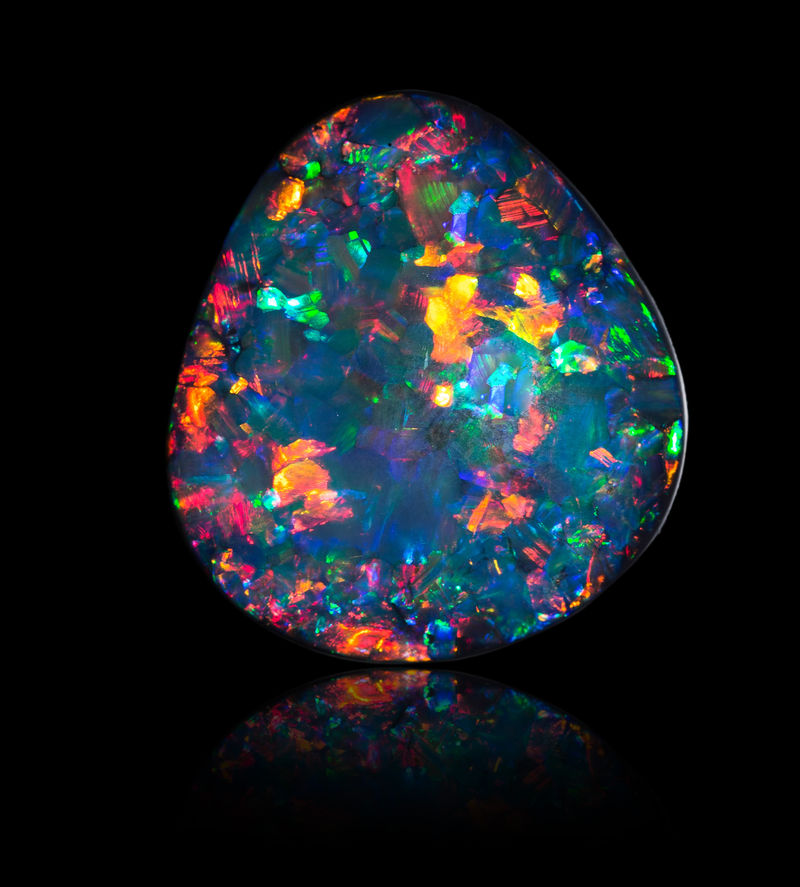

| Mineral: | Opal |
| Locality: | | 6 Mile Field, Lightning Ridge, Finch County, New South Wales, Australia | |
|
| Dimensions: | 2,5 x 2,5 x 1,0 cm |
| Description: |
Stone shaped like a triangle (31.02 cts) with rounded edges, with a high dome opalized surface consisting of sharply defined small polygonal patches with a strong play of colors mainly red / crimson. The color set is very different depending on the nature of incident light (fluorescent, incandescent or LED) and the angle of incidence, and the red flashes more or less marked.
MIM number 1706
Photographer : Augustin de Valence (Ainu) |
|
| Viewed: |
31879 Time(s) |
|

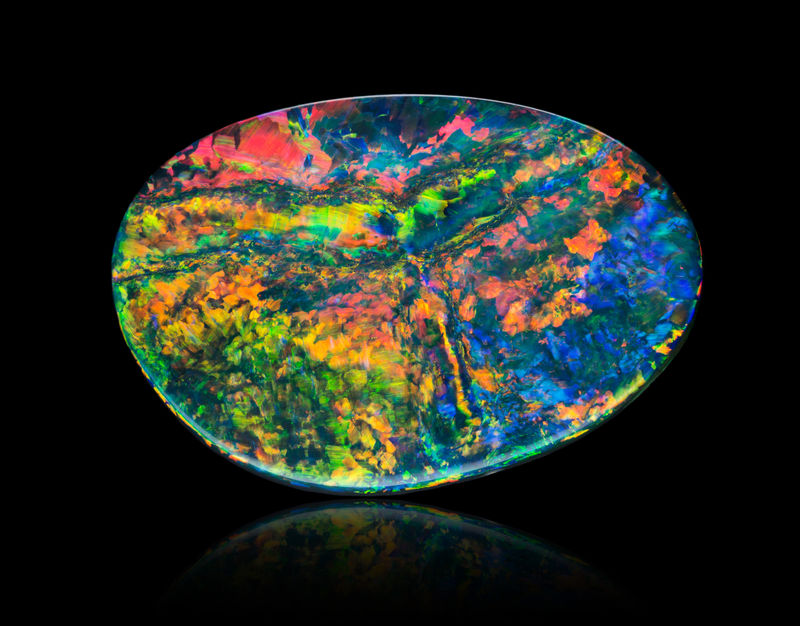

| Mineral: | Opal |
| Locality: | | Allah's Rush, Coocoran Opal fields, Lightning Ridge, Finch County, New South Wales, Australia | |
|
| Dimensions: | 4,0 x 3,0 x 1,0 cm |
| Description: |
Elongated oval stone (55.72 cts) with a flat opalized surface and a central Y shaped pattern delimiting three areas with a strong mainly red / crimson play of colors somewhat reminiscent of the palette of a painter. The color set is very different depending on the nature of incident light (fluorescent, incandescent or LED) and the angle of incidence, and the red flashes more or less marked.
MIM number 1707
Photographer : Augustin de Valence (Ainu) |
|
| Viewed: |
31865 Time(s) |
|
|
|
| Back to top |
|
|
Tobi
Site Admin
Joined: 07 Apr 2009
Posts: 4042
Location: Germany
|
| Posted: Jul 03, 2016 02:51 Post subject: Re: The MIM Museum in Beirut, Lebanon |
|
|
| Outstanding, especially that perfect Jalgaon calcite gem :)
|
|
| Back to top |
|
|
MIM Museum
Joined: 04 Aug 2015
Posts: 167
Location: Beirut
|
| Posted: Jul 09, 2016 16:54 Post subject: The MIM Museum in Beirut, Lebanon - Images of the Collection / 68 |
|
|
Images of the Collection / 68
| Mineral: | Getchellite with Orpiment and Stibnite |
| Locality: | | Getchell Mine, Adam Peak, Potosi District, Osgood Mountains, Humboldt County, Nevada, USA | |
|
| Dimensions: | 10,0 x 9,0 x 6,0 cm |
| Description: |
Main crystal size : 1,2 cm
Geode of massive stibnite hosting perfect and transparent blood red crystals of getchellite and a small tuft of orpiment. It is this geodic growth, uncommon for the species, which has allowed the development of large and perfect crystals for a species that is usually found as cleaved masses.
MIM number 1708
Photographer : Augustin de Valence (Ainu) |
|
| Viewed: |
31507 Time(s) |
|

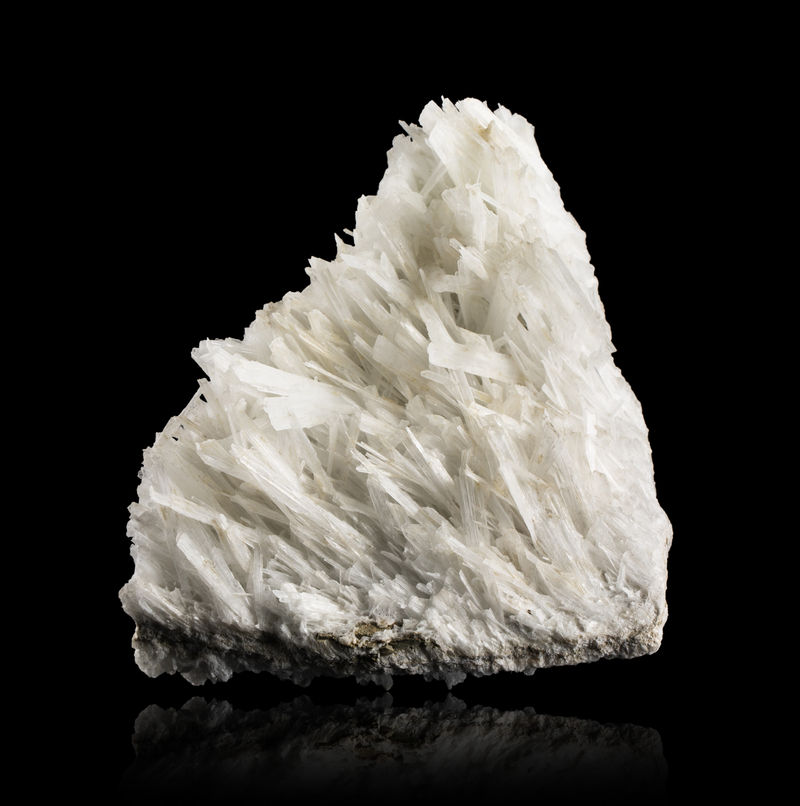

| Mineral: | Hydromagnesite |
| Locality: | | Soghan, Baft District, Kerman Province, Iran | |
|
| Dimensions: | 14,5 x 15,0 x 13,0 cm |
| Description: |
Main crystal size : 5,0 cm
Plate coated on both sides with white crystals. On the upper face, the crystals are long and well formed, and somewhat reminiscent of a wheat field.
MIM number 1709
Photographer : Augustin de Valence (Ainu) |
|
| Viewed: |
31500 Time(s) |
|

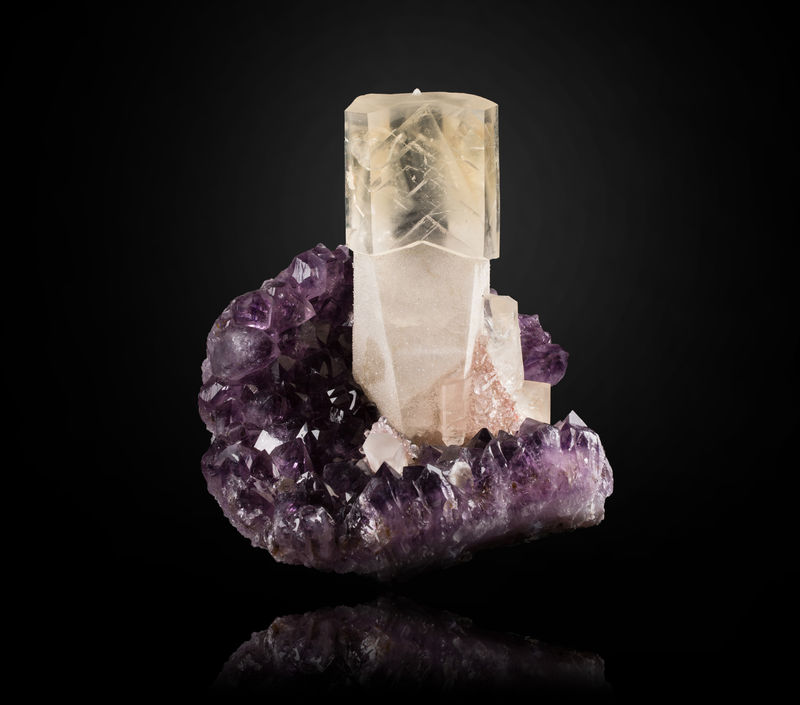

| Mineral: | Calcite on Quartz (variety amethyst) |
| Locality: | | Alto Uruguai Region, Rio Grande do Sul, Brazil | |
|
| Dimensions: | 16,5 x 15,5 x 17,5 cm |
| Description: |
Main crystal size : 15,7 cm
Large perfect calcite crystal formed on an amethyst matrix trimmed out from a larger geode. The first generation of this calcite crystal had a pointed termination and was covered with a second generation of calcite with a hexagonal section, as shown by the tip of the first generation which protrudes clearly from the top of the flat hexagonal face, with the whole having the shape of a scepter, which is unusual for calcite. A small hexagonal crystal calcite lies close to the base of the large crystal.
MIM number 1710
Photographer : Augustin de Valence (Ainu) |
|
| Viewed: |
31487 Time(s) |
|

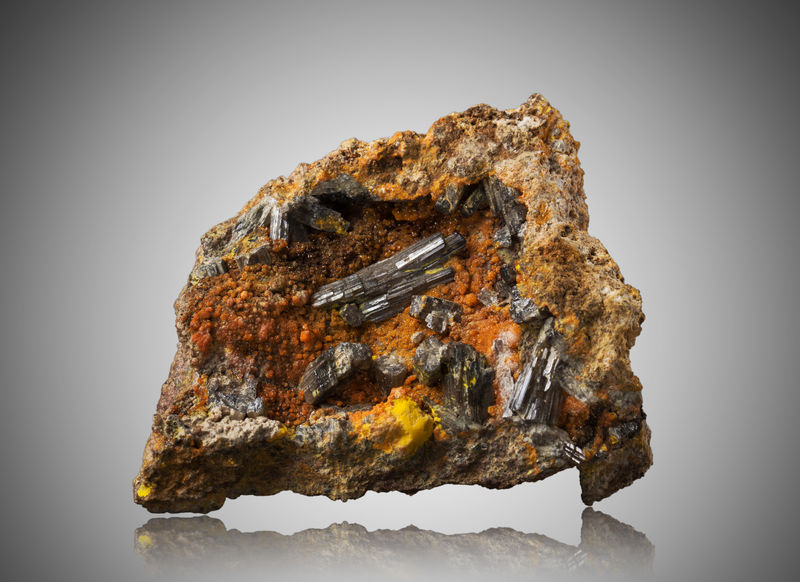

| Mineral: | Chervetite with Francevillite and Curienite |
| Locality: | | Mounana Mine, Franceville, Haut-Ogooué Province, Gabon | |
|
| Dimensions: | 7,0 x 5,5 x 4,0 cm |
| Description: |
Main crystal size : 2,2 cm
Well formed silvery crystals lying on a matrix coated with orange francevillite with a yellow curienite tuft on the rim
MIM number 1711
Photographer : Augustin de Valence (Ainu) |
|
| Viewed: |
31476 Time(s) |
|

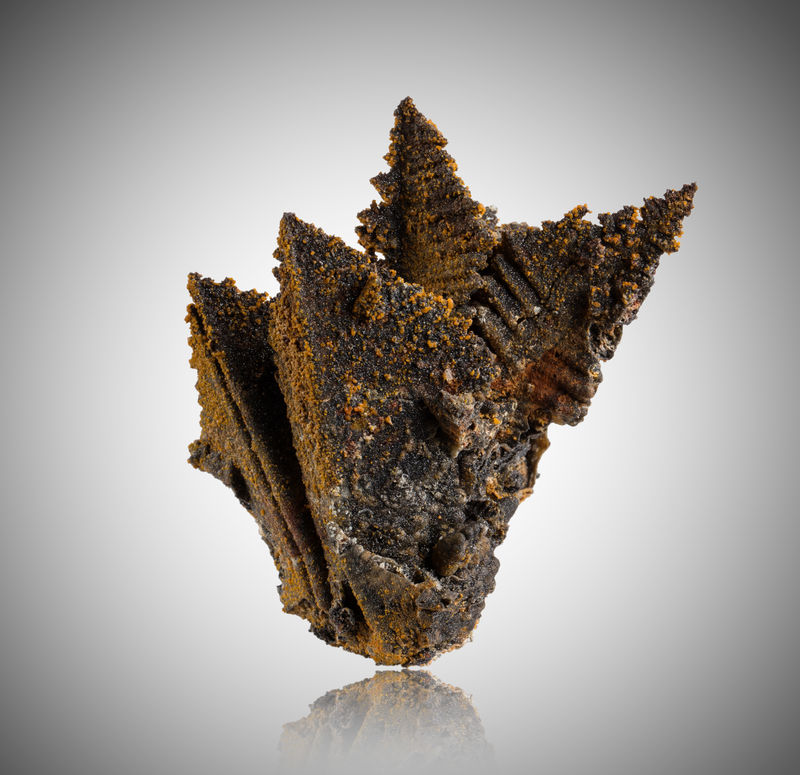

| Mineral: | Descloizite with Wulfenite |
| Locality: | | Chah Milleh Mine, Chah Milleh, Anarak District, Nain, Isfahan Province, Iran | |
|
| Dimensions: | 8,5 x 7,0 x 7,0 cm |
| Description: |
Main crystal size : 5,7 cm
Dendritic brown crystals reminiscent of Christmas trees, with orange wulfenite incrustations especially near the base
MIM number 1712
Photographer : Augustin de Valence (Ainu) |
|
| Viewed: |
31467 Time(s) |
|

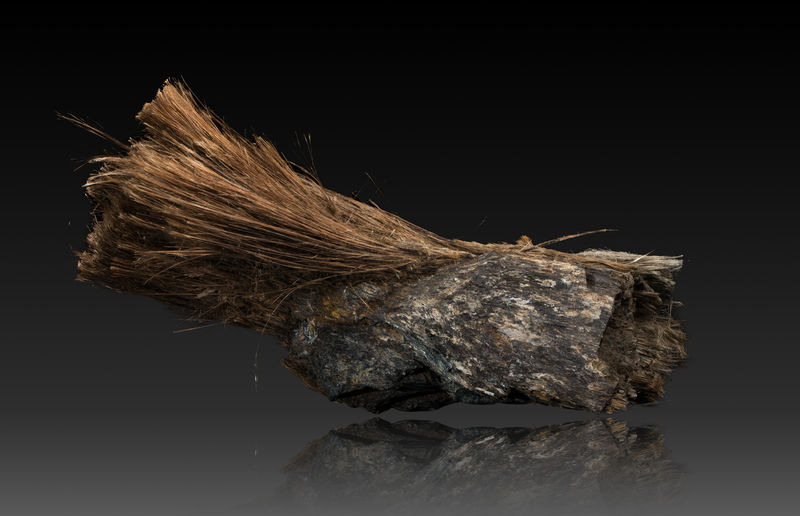

| Mineral: | Balangeroite |
| Locality: | | Poggio San Vittore asbestos Mine, Balangero, Lanzo Valleys (Valli di Lanzo), Metropolitan City of Turin Province, Piedmont (Piemonte), Italy | |
|
| Dimensions: | 13,0 x 37,0 x 12,0 cm |
| Description: |
Main crystal size : 20,0 cm
Bundle of large, brown-amber colored flexible fibers emanating from a serpentinite matrix. The sample resembles a brush or a broom. It is one of the species that constitute asbestos.
MIM number 1713
Photographer : Augustin de Valence (Ainu) |
|
| Viewed: |
31478 Time(s) |
|
| Mineral: | Reinerite |
| Locality: | | Tsumeb Mine, Tsumeb, Otjikoto Region, Namibia | |
|

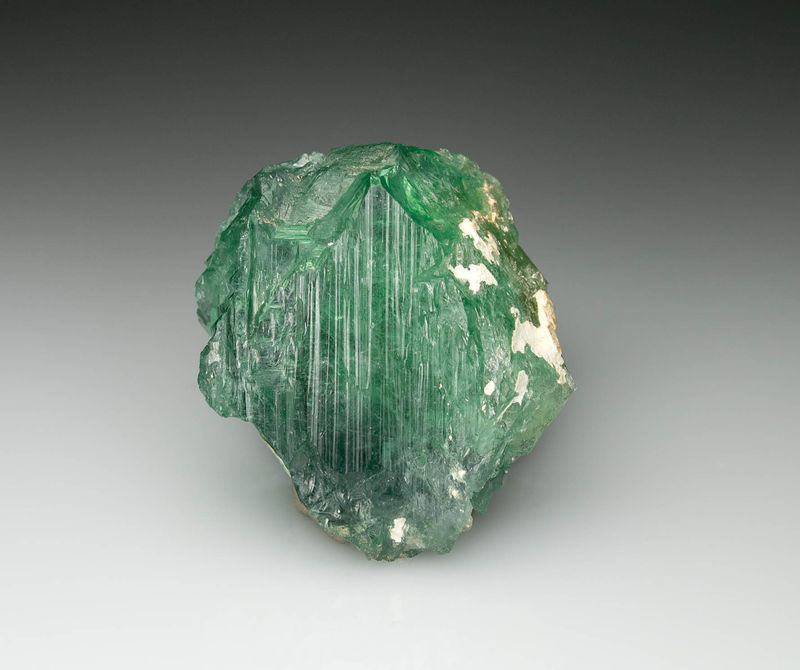

| Dimensions: | 5,0 x 2,5 x 4,5 cm |
| Description: |
Main crystal size : 5,0 cm
Transparent pseudo-hexagonal single crystal of sea green color, well formed, with two parallel main faces and complex faces on the periphery
MIM number 1719 |
|
| Viewed: |
31432 Time(s) |
|

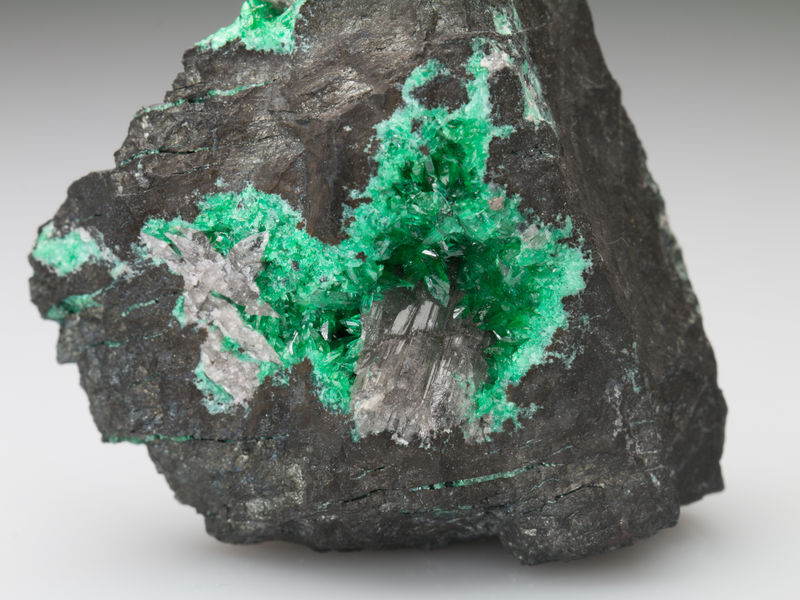

| Mineral: | Schultenite and Adamite (variety cuprian adamite) |
| Locality: | | Tsumeb Mine, Tsumeb, Otjikoto Region, Namibia | |
|
| Dimensions: | 5,5 x 5,0 x 5,5 cm |
| Description: |
Main crystal size : 1,5 cm
Cavity of a black ore (probably tennantite) hosting a flat silver-white crystal of schultenite surrounded by transparent needles of very well formed green cuproadamite (the largest measuring 0.5 cm)
MIM number 1720 |
|
| Viewed: |
31425 Time(s) |
|

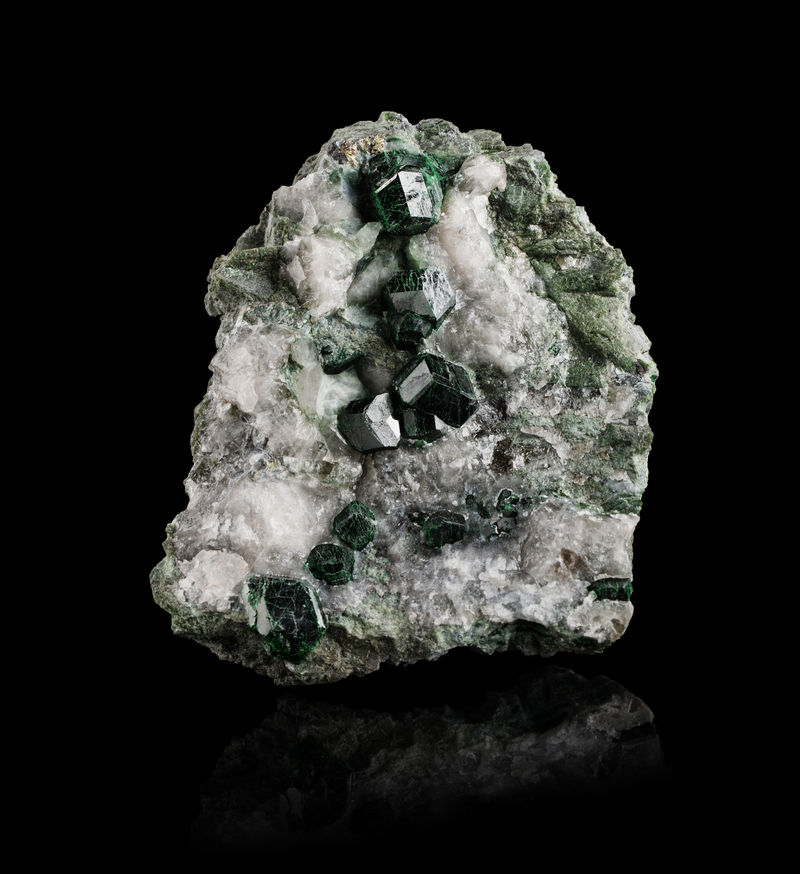

| Mineral: | Uvarovite on Quartz |
| Locality: | | Mokkivaara Mine, Outokumpu, Tornio, Lapland Region, Finland | |
|
| Dimensions: | 10,0 x 4,5 x 12,5 cm |
| Description: |
Main crystal size : 2,0 cm
A dozen shiny dark green crystals, well formed and well separated from one another on the massive quartz matrix from which they have been exposed
MIM number 1722
Photographer : Augustin de Valence (Ainu) |
|
| Viewed: |
31517 Time(s) |
|

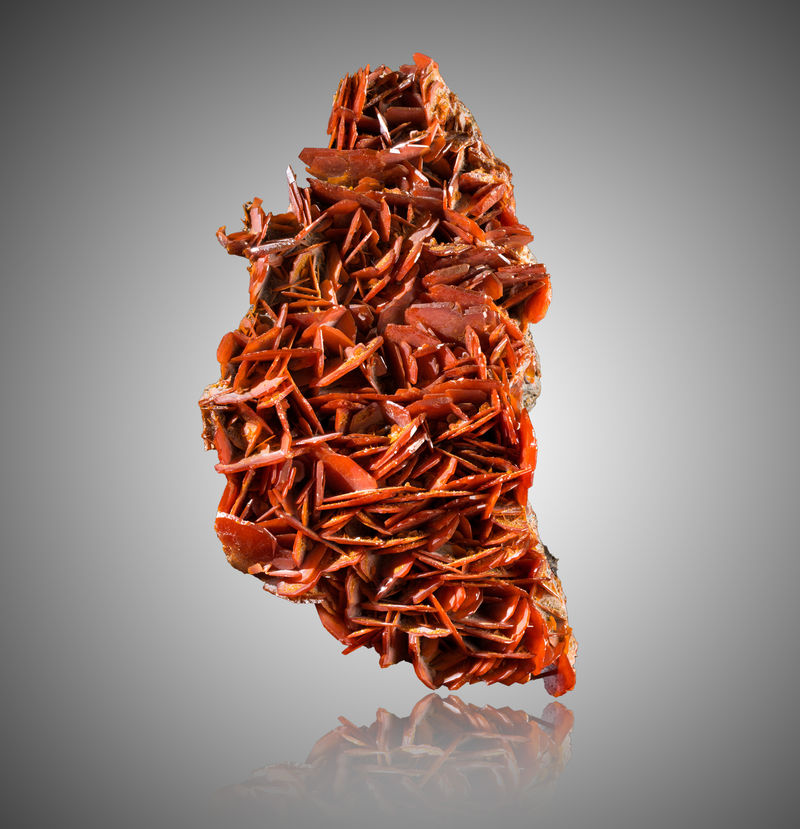

| Mineral: | Wulfenite |
| Locality: | | Jianshan Mine, Ruoqiang, Bayin'gholin Autonomous Prefecture, Xinjiang Uyghur Autonomous Region, China | |
|
| Dimensions: | 23,0 x 13,0 x 9,0 cm |
| Description: |
Main crystal size : 3,9 cm
Red shiny platelets rising from a thick matrix
MIM number 1723
Photographer : Augustin de Valence (Ainu) |
|
| Viewed: |
31459 Time(s) |
|
_________________
info @ mim.museum
Facebook: https://www.facebook.com/mim.museum/?fref=ts |
|
| Back to top |
|
|
dontgogreen
Joined: 02 Aug 2015
Posts: 79
|
| Posted: Jul 11, 2016 08:01 Post subject: Re: The MIM Museum in Beirut, Lebanon |
|
|
| Thanks for continuing to present these photos.
|
|
| Back to top |
|
|
MIM Museum
Joined: 04 Aug 2015
Posts: 167
Location: Beirut
|
| Posted: Jul 16, 2016 14:54 Post subject: The MIM Museum in Beirut, Lebanon - Images of the Collection / 69 |
|
|
Images of the Collection / 69

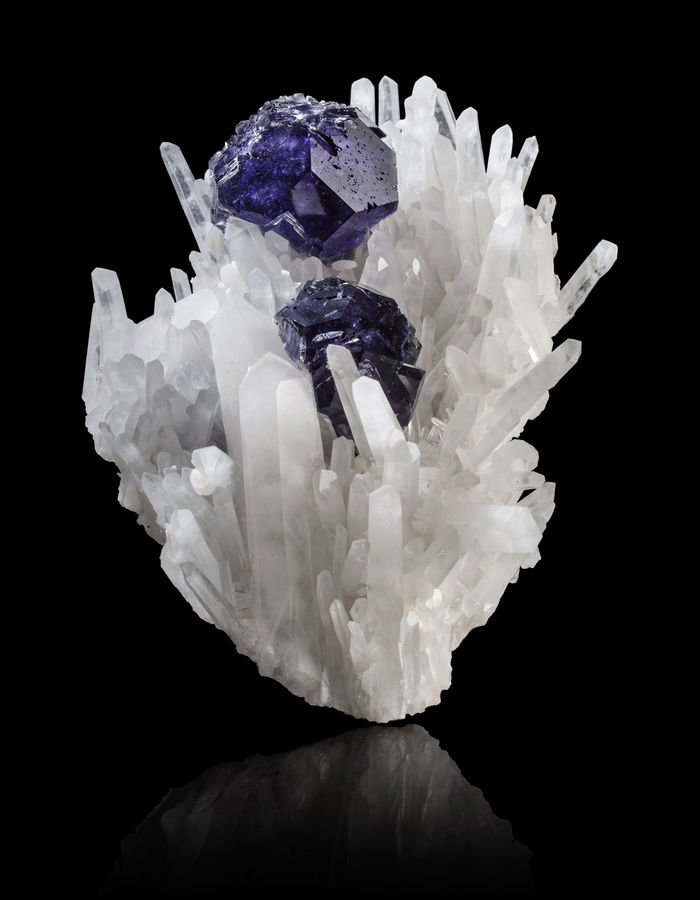

| Mineral: | Fluorite on Quartz |
| Locality: | | Dongpo, Yizhang District, Chenzhou Prefecture, Hunan Province, China | |
|
| Dimensions: | 21,0 x 15,0 x 10,5 cm |
| Description: |
Main crystal size : 6,1 cm
Two dark purple translucent perfectly formed crystals, perched on a bed of white quartz crystal (the largest measuring 10 cm). The fluorites are polyhedra showing the faces of the cube as well as modified faces.
MIM number 1724
Photographer : Augustin de Valence (Ainu) |
|
| Viewed: |
31051 Time(s) |
|

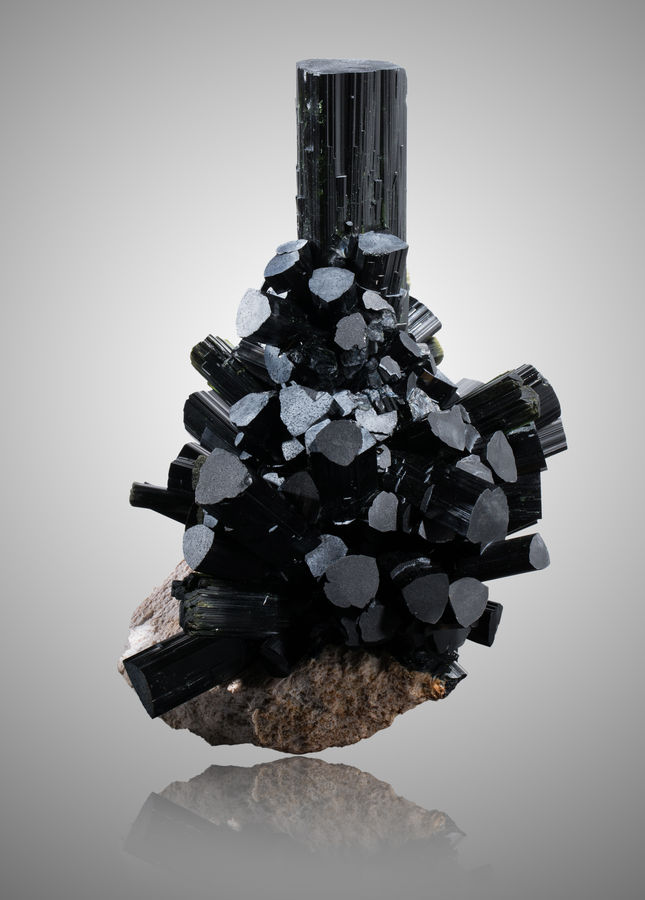

| Mineral: | Elbaite on Orthoclase |
| Locality: | | Barra de Salinas, Coronel Murta, Jequitinhonha, Minas Gerais, Brazil | |
|
| Dimensions: | 25,0 x 28,0 x 35,0 cm |
| Description: |
Main crystal size : 16,4 cm
Spectacular bouquet of elbaite crystals which have grown at 360 degrees around a large crystal on a matrix of orthoclase. Some crystals show the classical pointed summit of tourmalines (which are here somewhat fibrous and translucent green), while most of the crystals show the classical flat base for this species (with a black color here).
MIM number 1727
Photographer : Augustin de Valence (Ainu) |
|
| Viewed: |
30992 Time(s) |
|

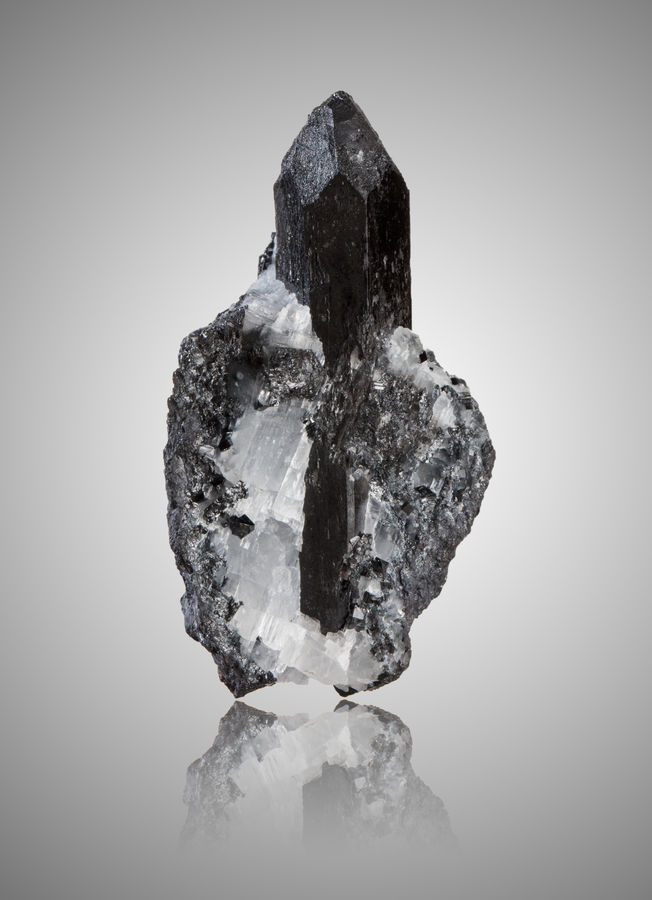

| Mineral: | Gaudefroyite with Calcite |
| Locality: | | N'Chwaning mining area, Kuruman, Kalahari manganese field (KMF), Northern Cape Province, South Africa | |
|
| Dimensions: | 2,5 x 1,5 x 4,5 cm |
| Description: |
Main crystal size : 4,4 cm
Shiny black doubly terminated hexagonal prism with pointed terminations and remnants of matrix attached around the middle
MIM number 1728
Photographer : Augustin de Valence (Ainu) |
|
| Viewed: |
30942 Time(s) |
|

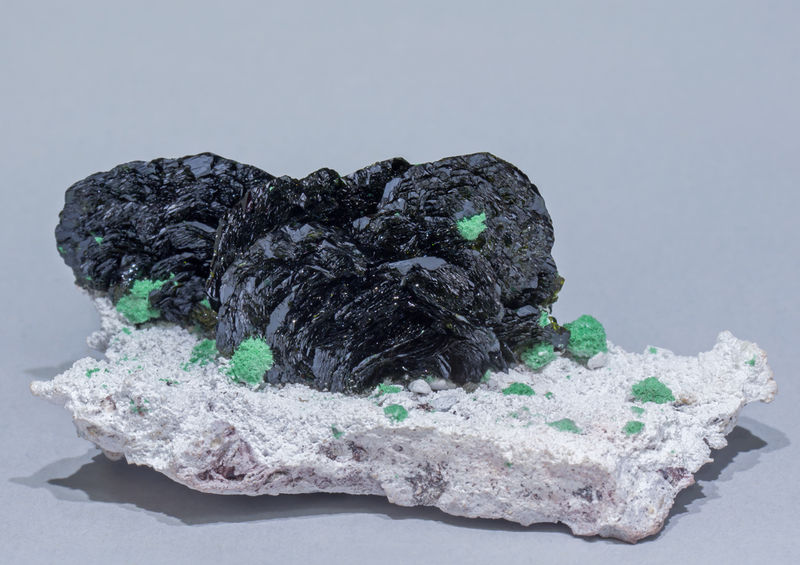

| Mineral: | Volborthite and Malachite |
| Locality: | | Milpillas Mine, Cuitaca, Municipio Santa Cruz, Sonora, Mexico | |
|
| Dimensions: | 5,5 x 3,0 x 2,5 cm |
| Description: |
Main crystal size : 2,0 cm
Rosettes of shiny dark green lamellar crystals dotted with bright green malachite balls, rising perpendicularly from a thin white matrix
MIM number 1729 |
|
| Viewed: |
31052 Time(s) |
|

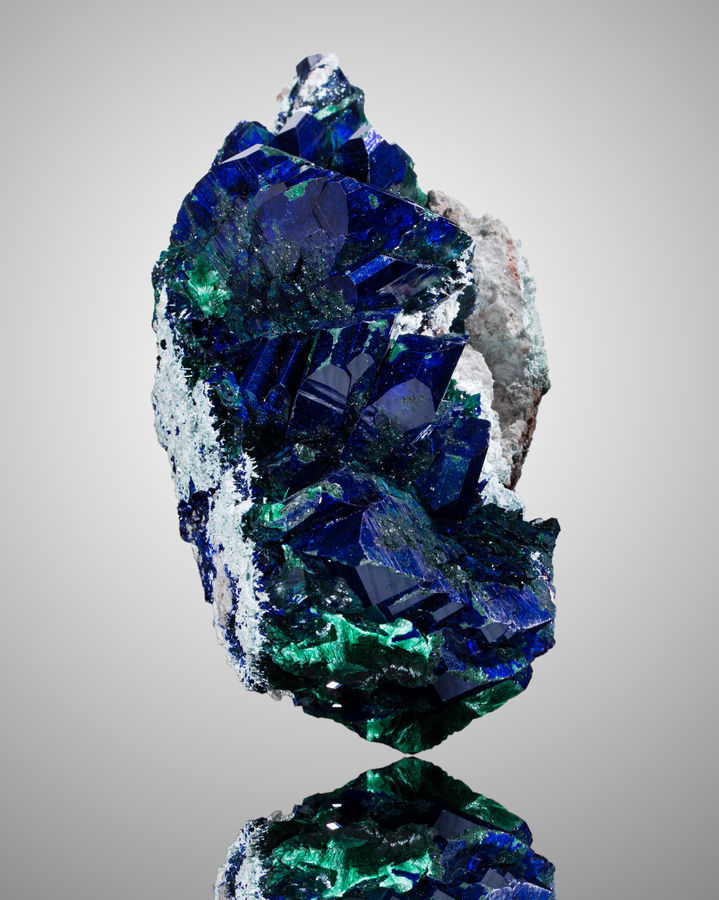

| Mineral: | Azurite and Malachite |
| Locality: | | Milpillas Mine, Cuitaca, Municipio Santa Cruz, Sonora, Mexico | |
|
| Dimensions: | 17,0 x 8,5 x 8,5 cm |
| Description: |
Main crystal size : 5,1 cm
Very shiny crystals developed in parallel groups on a white matrix, the bottom of which is lined with fibrous malachite. The crystals have a very geometric shape as opposed to the average production of this mine and have a beautiful metallic and chatoyant blue color resulting from interference phenomena between the underlying azurite, the thin layer of malachite which has formed on it, and a thin layer of azurite which has later formed on the latter.
MIM number 1730
Photographer : Augustin de Valence (Ainu) |
|
| Viewed: |
30954 Time(s) |
|
|
|
| Back to top |
|
|
Tobi
Site Admin
Joined: 07 Apr 2009
Posts: 4042
Location: Germany
|
| Posted: Jul 17, 2016 01:56 Post subject: Re: The MIM Museum in Beirut, Lebanon - Images of the Collection / 69 |
|
|
| MIM Museum wrote: | Fluorite on Quartz
Dongpo, Yizhang District, Chenzhou Prefecture, Hunan Province, China
21,0 x 15,0 x 10,5 cm |
Simply perfect!
|
|
| Back to top |
|
|
chris
Site Admin
Joined: 12 Jul 2007
Posts: 538
Location: Grenoble
|
| Posted: Jul 18, 2016 11:14 Post subject: Re: The MIM Museum in Beirut, Lebanon |
|
|
Bonjour Salim,
A truly amazing collection carefully assembled by a very tasteful person. I've never been to Beirut, but I think this is something I'll have a fix in the near future.
Keep going.
Thanks
Christophe
|
|
| Back to top |
|
|
MIM Museum
Joined: 04 Aug 2015
Posts: 167
Location: Beirut
|
| Posted: Jul 18, 2016 23:36 Post subject: Re: The MIM Museum in Beirut, Lebanon |
|
|
Bonjour Chris
Thank you for your kind words.
You know, Lebanon is just 3:45 hours away from Paris with 4 flights per day. You just need your passport (no visa required), and the country is less wild than it sounds like. Actually, in the doomed region of the world called "Middel East", the French saying: "Dans le royaume des aveugles, les borgnes sont rois" applies perfectly to my country...
You are welcome whenever you want!
Salim
_________________
info @ mim.museum
Facebook: https://www.facebook.com/mim.museum/?fref=ts |
|
| Back to top |
|
|
|
FAQ
Register
Log in
Forgotten your password?
