Bob Harman
Joined: 06 Nov 2015
Posts: 765
|
 Posted: Sep 26, 2016 11:10 Post subject: Re: A mineralogical trip through the states of USA - Missouri |
|
|

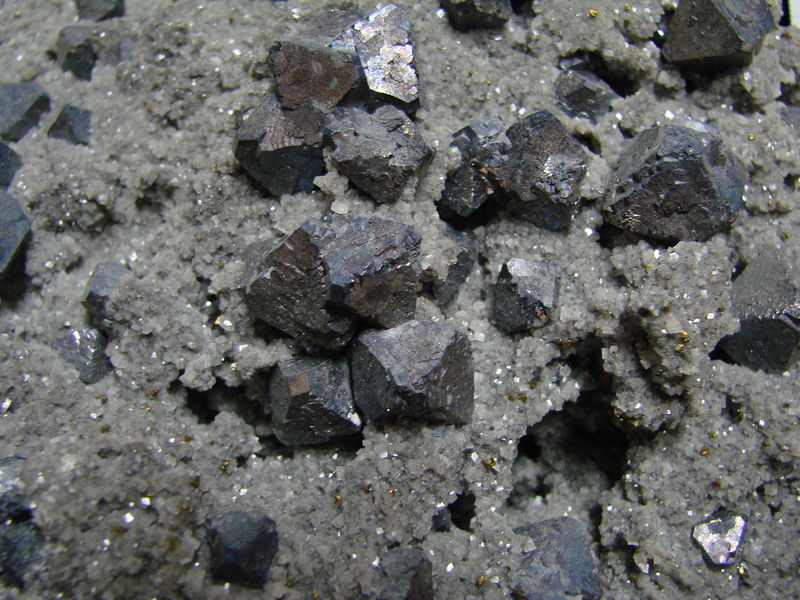

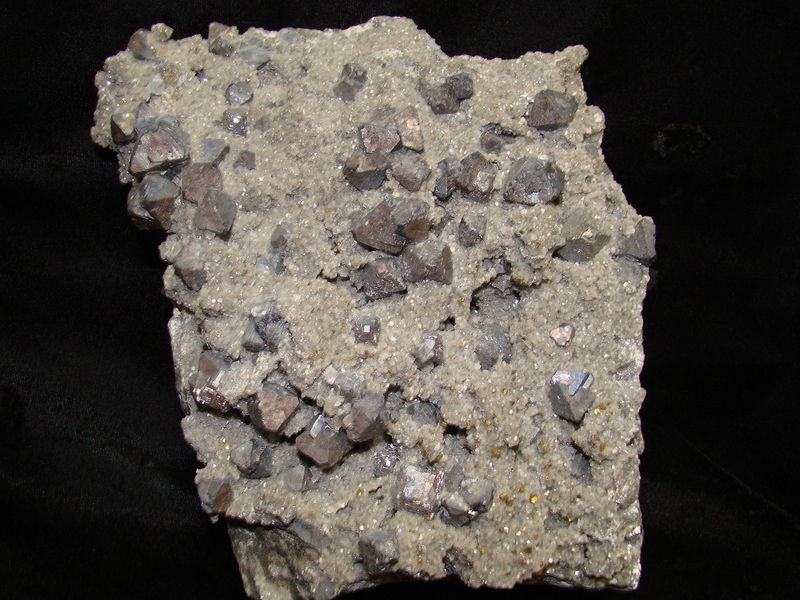

A full cabinet size example of galena, chalcopyrite, and dolomite mined in the 1980s.
| Mineral: | Galena, Chalcopyrite and Dolomite |
| Locality: | | West Fork Mine, West Fork, Viburnum Trend District, Reynolds County, Missouri, USA |  |
|
| Dimensions: | Specimen is 17 cm x 12 cm x 5cm. Octahedral Galenas are up to 1.3 cm |
| Description: |
| This example is probably from the West Fork Mine. If anyone has definitive info on another Missouri locality, please add it to this post. |
|
| Viewed: |
25250 Time(s) |
|

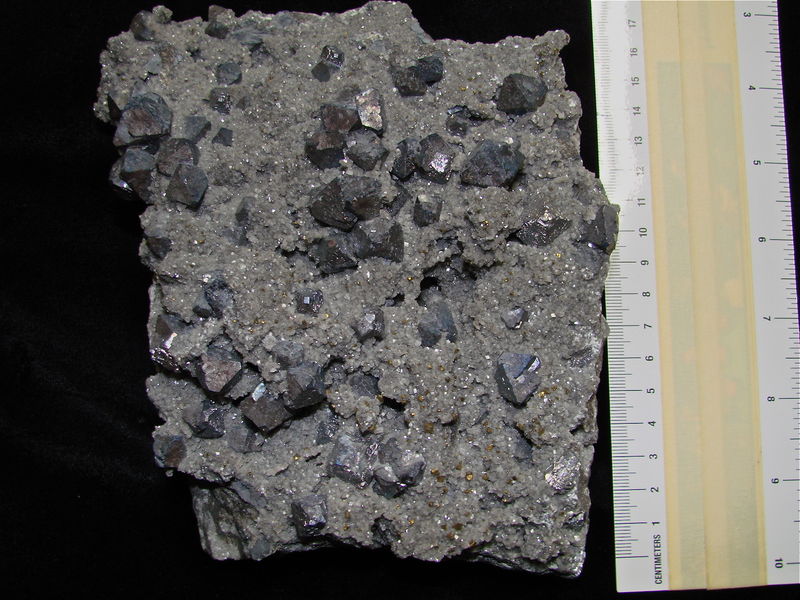

| Mineral: | Galena, Chalcopyrite and Dolomite |
| Locality: | | West Fork Mine, West Fork, Viburnum Trend District, Reynolds County, Missouri, USA | |
|
| Dimensions: | Specimen is 17 cm x 12 cm x 5cm. Octahedral Galenas are up to 1.3 cm |
| Description: |
|
| Viewed: |
25219 Time(s) |
|
| Mineral: | Galena, Chalcopyrite and Dolomite |
| Locality: | | West Fork Mine, West Fork, Viburnum Trend District, Reynolds County, Missouri, USA | |
|
| Dimensions: | Galena is up to 1.3 cm |
| Description: |
|
| Viewed: |
25225 Time(s) |
|
|
|
| Back to top |
|
 |
Tobi
Site Admin
Joined: 07 Apr 2009
Posts: 4235
Location: Germany
|
| Posted: Sep 27, 2016 05:49 Post subject: Re: A mineralogical trip through the states of USA - Missouri |
|
|
| Bob Harman wrote: | | This example is probably from the West Fork Mine. If anyone has definitive info on another Missouri locality, please add it to this post. |
I'm quite sure it IS from West Fork Mine. I have a West Fork galena specimen that has exactly the same crystals, quite distinctive material for that mine (though also "normal" cubes occur there).
|
|
| Back to top |
|
|
Turbo
Joined: 30 Sep 2009
Posts: 260
Location: Delaware
|
| Posted: Sep 26, 2017 19:16 Post subject: Bayley Viburnum Trend Calcite Collection |
|
|
I have been working on a comprehensive collection of Viburnum Trend Calcite. Over the next few days I will share some of my pieces.
The mines of the Viburnum Trend from North to South are:
Viburnum No. 29 Mine
Viburnum No. 27 Mine
Viburnum No. 28 Mine
Casteel Mine
Magmont Mine
Buick Mine
Brushy Creek Mine
West Fork Mine
Fletcher Mine
Sweetwater Mine
It may be accurate to include Magmont West and Indian Creek Mine in the list as well.
Enjoy,
Ed Bayley
| Mineral: | Calcite |

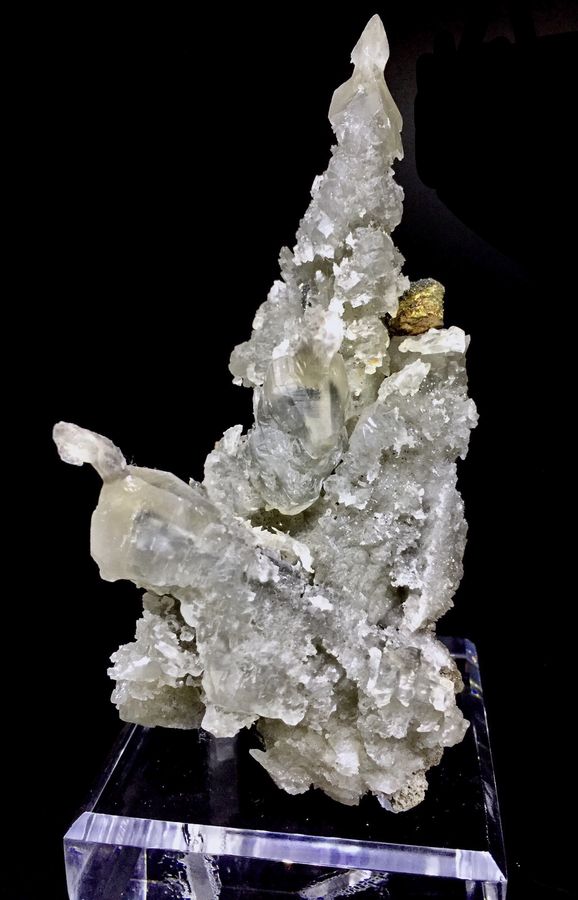

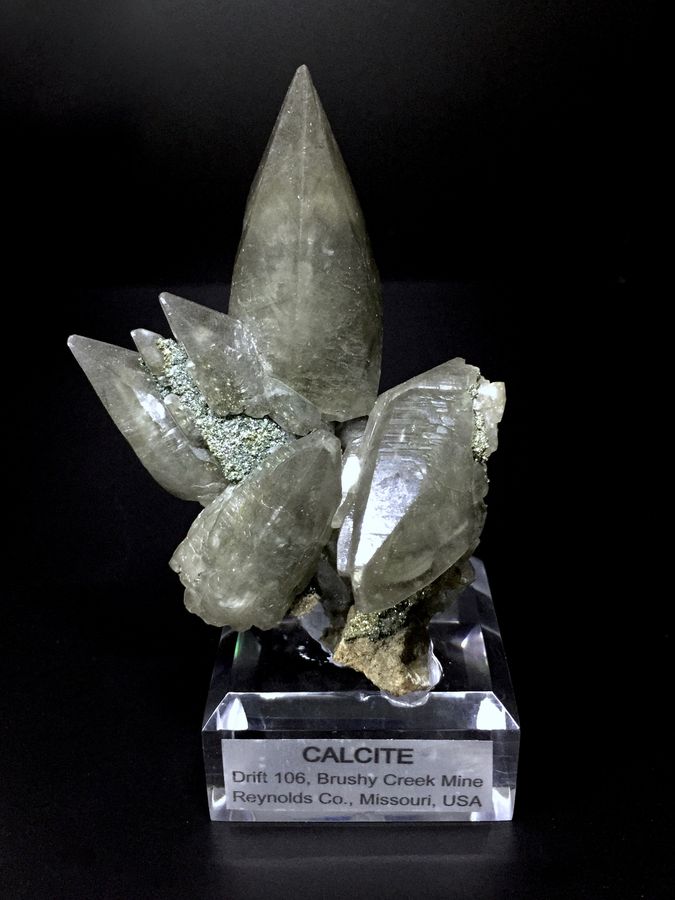

| Locality: | | Brushy Creek Mine, Greeley, Viburnum Trend District, Reynolds County, Missouri, USA | |
|
| Dimensions: | 14 cm x 6.5 cm x 5.5 cm |
| Description: |
| From the Watercourse Deposit around the time of initial discovery of the Drift 106 solution cavity in 1979. |
|
| Viewed: |
26063 Time(s) |
|
| Mineral: | Calcite |
| Locality: | | Brushy Creek Mine, Greeley, Viburnum Trend District, Reynolds County, Missouri, USA | |
|
| Dimensions: | 9.5 cm x 7 cm x 5 cm |
| Description: |
| A specimen from the initial discovery that also came out in 1979. |
|
| Viewed: |
26073 Time(s) |
|
| Mineral: | Calcite |

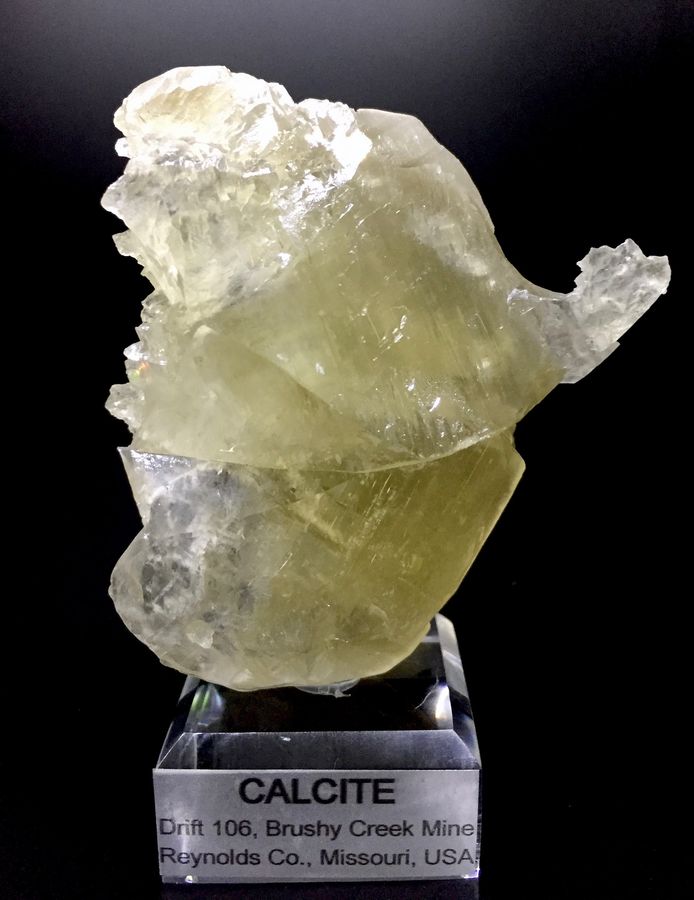

| Locality: | | Brushy Creek Mine, Greeley, Viburnum Trend District, Reynolds County, Missouri, USA | |
|
| Dimensions: | 7.5 cm x 6.5 cm x 3.5 cm |
| Description: |
| Another specimen from the watercourse deposit. This one is an etched twin from Drift 106. |
|
| Viewed: |
26047 Time(s) |
|
| Mineral: | Calcite and Pyrite |

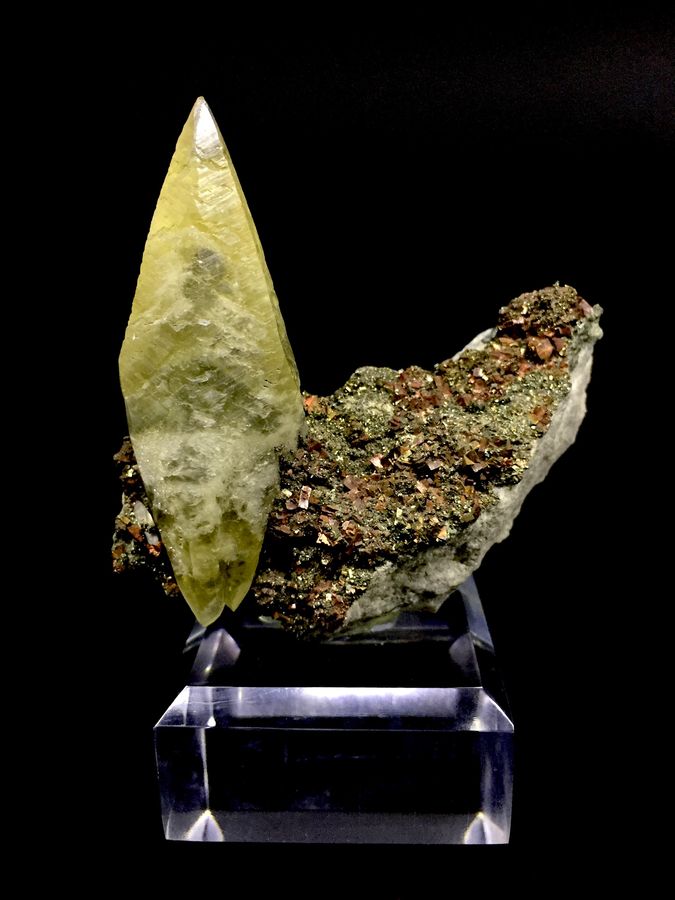

| Locality: | | Viburnum No. 28 Mine, Courtois, Viburnum Trend District, Washington County, Missouri, USA | |
|
| Dimensions: | 7.4 cm x 7.5 cm x 3 cm |
| Description: |
| I have not seem many specimens from No. 28 Mine and none from No. 27 Mine. |
|
| Viewed: |
26058 Time(s) |
|
| Mineral: | Calcite |
| Locality: | | Fletcher Mine, West Fork, Viburnum Trend District, Reynolds County, Missouri, USA | |
|
| Dimensions: | 9.5 cm x 7 cm x 9 cm |
| Description: |
| Fletcher Mine. Dickite inclusions. |
|
| Viewed: |
26013 Time(s) |
|
| Mineral: | Calcite |

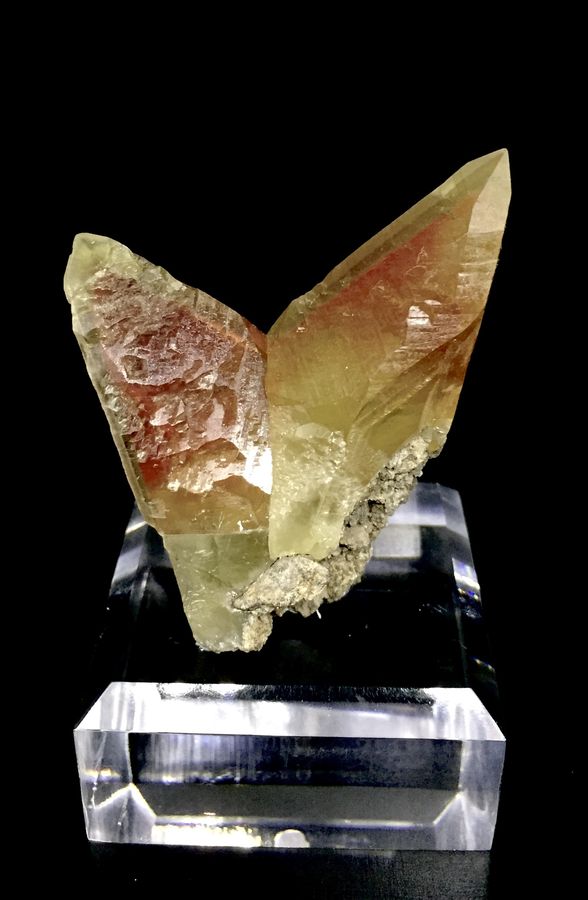

| Locality: | | Fletcher Mine, West Fork, Viburnum Trend District, Reynolds County, Missouri, USA | |
|
| Dimensions: | 5 cm x 4.7 cm x 3 cm |
| Description: |
| Calcite with hematite inclusions from the "Red Phantom Pocket" of 1998. |
|
| Viewed: |
26039 Time(s) |
|
|
|
| Back to top |
|
|
Turbo
Joined: 30 Sep 2009
Posts: 260
Location: Delaware
|
| Posted: Sep 27, 2017 17:44 Post subject: Re: Bayley Viburnum Trend Calcite Collection |
|
|
Collection continued.
| Mineral: | Calcite |

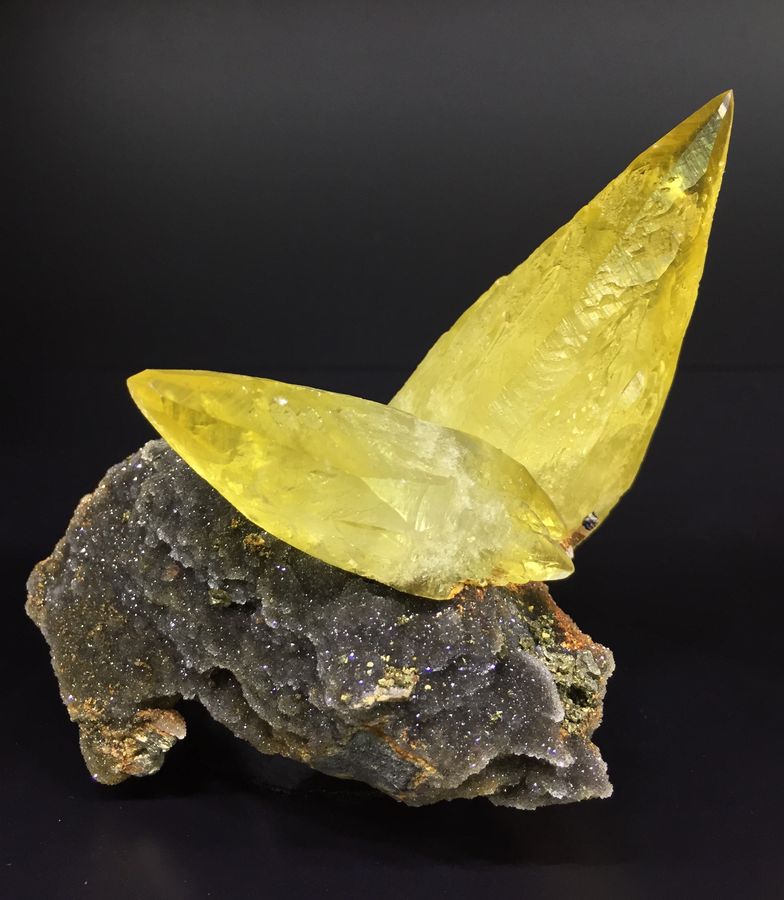

| Locality: | | Casteel Mine, Bixby, Viburnum Trend District, Iron County, Missouri, USA | |
|
| Dimensions: | 11 cm x 10 cm x 6 cm |
| Description: |
| This is from a small find from the spring of this year where the crystals had excellent vibrant color. |
|
| Viewed: |
26120 Time(s) |
|
| Mineral: | Calcite |

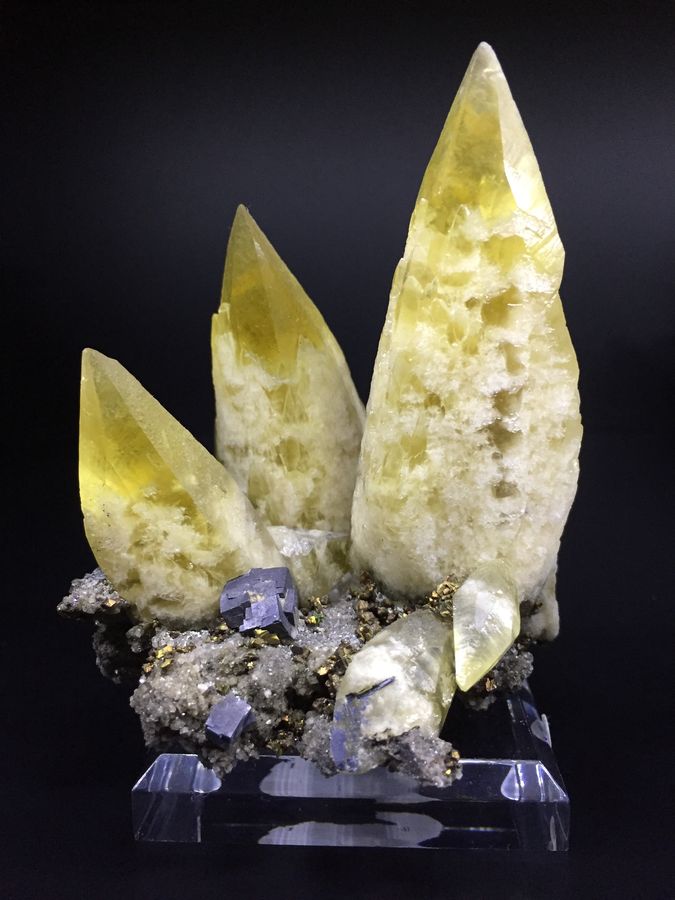

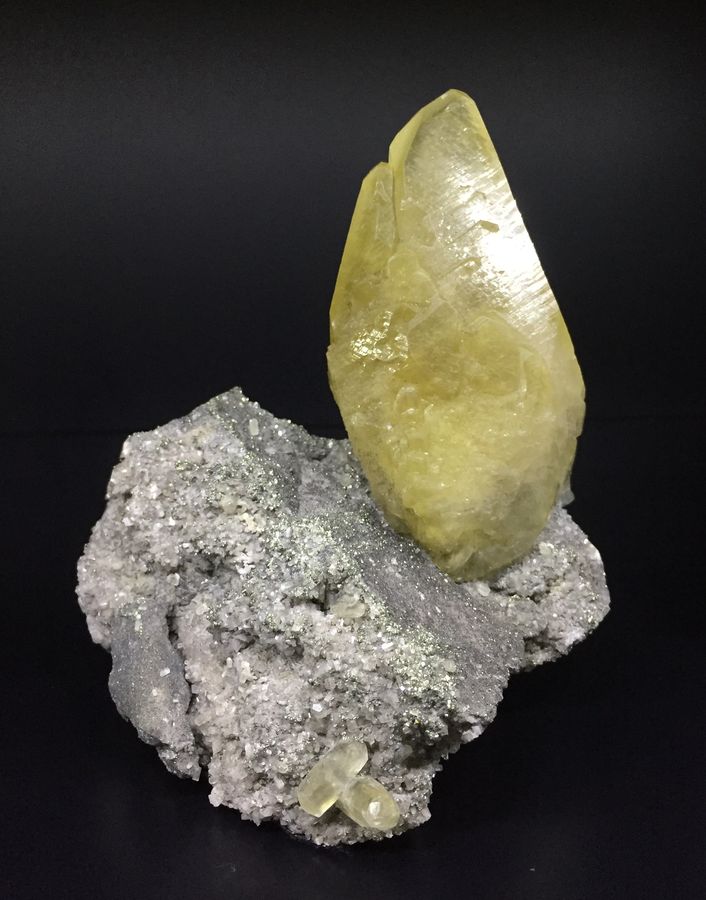

| Locality: | | Fletcher Mine, West Fork, Viburnum Trend District, Reynolds County, Missouri, USA | |
|
| Dimensions: | 14.5 cm x 12 cm x 10 cm |
| Description: |
|
| Viewed: |
25823 Time(s) |
|
| Mineral: | Calcite |
| Locality: | | Fletcher Mine, West Fork, Viburnum Trend District, Reynolds County, Missouri, USA | |
|
| Dimensions: | 23.5 cm x 15.2 cm x 15.9 cm |
| Description: |
| From the 2015 pillar pockets. |
|
| Viewed: |
25851 Time(s) |
|
| Mineral: | Calcite |

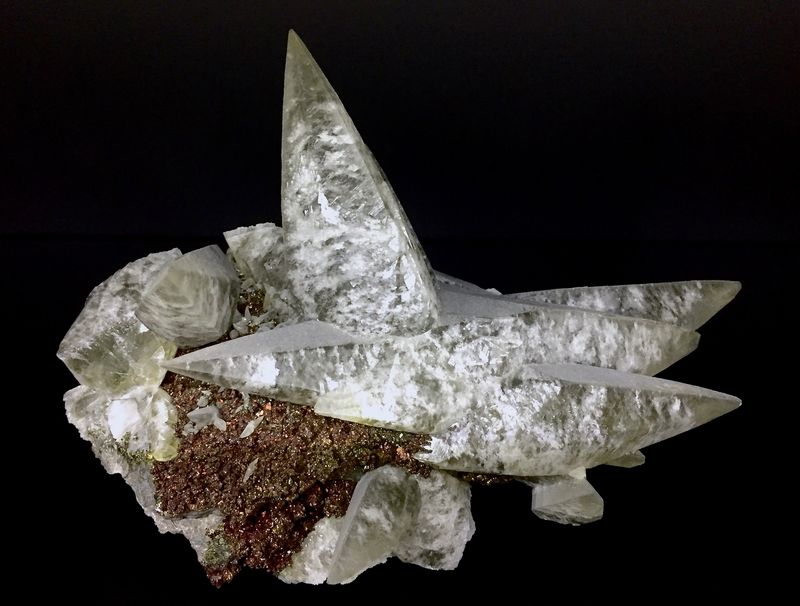

| Locality: | | Viburnum No. 29 Mine, Courtois, Viburnum Trend District, Washington County, Missouri, USA | |
|
| Dimensions: | 20 cm x 9 cm x 15 cm |
| Description: |
| From the 1995 discovery of a large solution cavity that rivaled that of Brushy Creek's Drift 106. |
|
| Viewed: |
25891 Time(s) |
|
| Mineral: | Calcite |

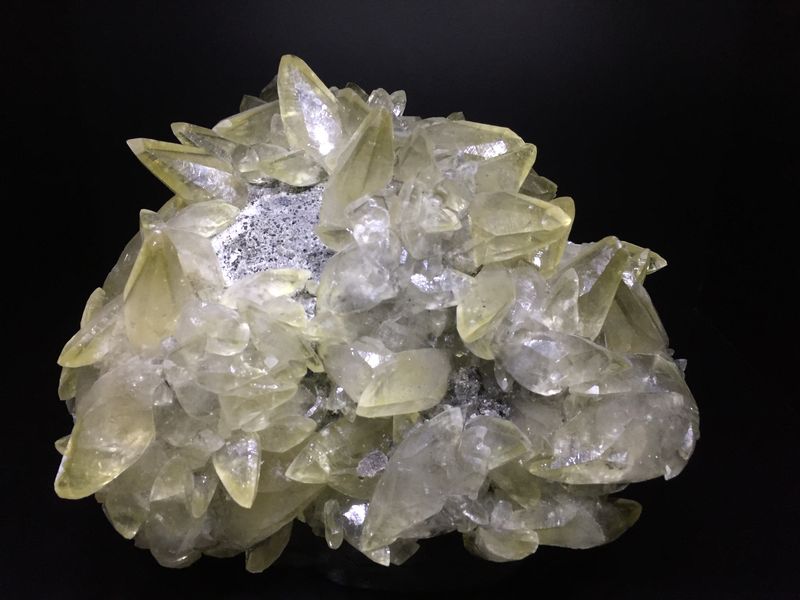

| Locality: | | Sweetwater Mine, Ellington, Viburnum Trend District, Reynolds County, Missouri, USA | |
|
| Dimensions: | 26 cm x 13 cm |
| Description: |
|
| Viewed: |
25877 Time(s) |
|
|
|
| Back to top |
|
|
Pete Richards
Site Admin
Joined: 29 Dec 2008
Posts: 843
Location: Northeast Ohio
|
| Posted: Sep 27, 2017 17:59 Post subject: Re: Bayley Viburnum Trend Calcite Collection |
|
|
What a comprehensive collection! Keep at it!
_________________
Collecting and studying crystals with interesting habits, twinning, and epitaxy |
|
| Back to top |
|
|
Turbo
Joined: 30 Sep 2009
Posts: 260
Location: Delaware
|
| Posted: Sep 27, 2017 18:01 Post subject: Re: Bayley Viburnum Trend Calcite Collection |
|
|
| Pete Richards wrote: | | What a comprehensive collection! Keep at it! |
Thanks Pete! More to come. That Brushy Creek twin is debatable. It's one you'd have to handle to be sure of. The etching complicates identification.
|
|
| Back to top |
|
|
Pete Richards
Site Admin
Joined: 29 Dec 2008
Posts: 843
Location: Northeast Ohio
|
| Posted: Sep 27, 2017 20:40 Post subject: Re: Bayley Viburnum Trend Calcite Collection |
|
|
| Turbo wrote: | | .... That Brushy Creek twin is debatable. It's one you'd have to handle to be sure of. The etching complicates identification. |
If you mean the image Brushy Creek 3, already posted, I would agree that it appears to be a twin. I would say it is a twin on {0001} (of course with the standard caution that it's hard to tell from a single photo); {0001} is probably the most common kind of twin. I think the specimen is more interesting for its etched overall form; the twinning is kind of an extra treat!
_________________
Collecting and studying crystals with interesting habits, twinning, and epitaxy |
|
| Back to top |
|
|
Tobi
Site Admin
Joined: 07 Apr 2009
Posts: 4235
Location: Germany
|
| Posted: Sep 28, 2017 10:57 Post subject: Re: Bayley Viburnum Trend Calcite Collection |
|
|
Ed, your collection of calcites is incredibly beautiful, thank you so much for presenting them in such good pictures! Hard to pick a favourite among these beauties, but to me, the one from Fletcher Mine (Fletcher Mine.JPG) is the greatest of these great specimens. I guess the combination with galena makes it my special favourite ;-)
I hope you'll show us a lot more of these treasures :-)
Thanks in advance
Tobi
|
|
| Back to top |
|
|
Turbo
Joined: 30 Sep 2009
Posts: 260
Location: Delaware
|
| Posted: Sep 28, 2017 19:41 Post subject: Re: Bayley Viburnum Trend Calcite Collection |
|
|
| Pete Richards wrote: | | Turbo wrote: | | .... That Brushy Creek twin is debatable. It's one you'd have to handle to be sure of. The etching complicates identification. |
If you mean the image Brushy Creek 3, already posted, I would agree that it appears to be a twin. I would say it is a twin on {0001} (of course with the standard caution that it's hard to tell from a single photo); {0001} is probably the most common kind of twin. I think the specimen is more interesting for its etched overall form; the twinning is kind of an extra treat! |
Yes, that's the one I am referring too. The {001} twins were much more common there than {012}, which to my knowledge is the only other occurrence in the Viburnum Trend.
|
|
| Back to top |
|
|
Turbo
Joined: 30 Sep 2009
Posts: 260
Location: Delaware
|
| Posted: Sep 28, 2017 19:42 Post subject: Re: Bayley Viburnum Trend Calcite Collection |
|
|
| Tobi wrote: | Ed, your collection of calcites is incredibly beautiful, thank you so much for presenting them in such good pictures! Hard to pick a favourite among these beauties, but to me, the one from Fletcher Mine (Fletcher Mine.JPG) is the greatest of these great specimens. I guess the combination with galena makes it my special favourite ;-)
I hope you'll show us a lot more of these treasures :-)
Thanks in advance
Tobi |
Thank you! More to come. That Fletcher specimen I call "The Trio." I found that in Tucson.
|
|
| Back to top |
|
|
Turbo
Joined: 30 Sep 2009
Posts: 260
Location: Delaware
|
| Posted: Sep 28, 2017 21:02 Post subject: Re: Bayley Viburnum Trend Calcite Collection |
|
|
More from the VT collection.
| Mineral: | Calcite |

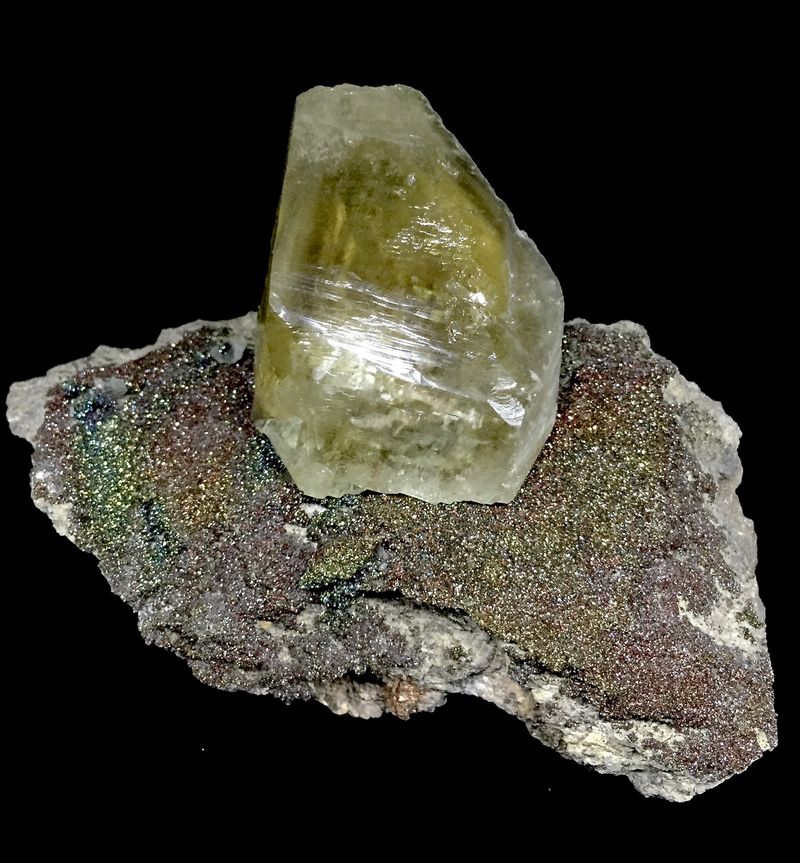

| Locality: | | Buick Mine, Bixby, Viburnum Trend District, Iron County, Missouri, USA | |
|
| Dimensions: | 16.4 cm x 11 cm x 6 cm |
| Description: |
| Once called the AMAX Lead Mine. This is a partially etch crystal with a flattened termination. Gorgeous marcasite and/or chalcopyrite covers the matrix. |
|
| Viewed: |
28010 Time(s) |
|
| Mineral: | Calcite |

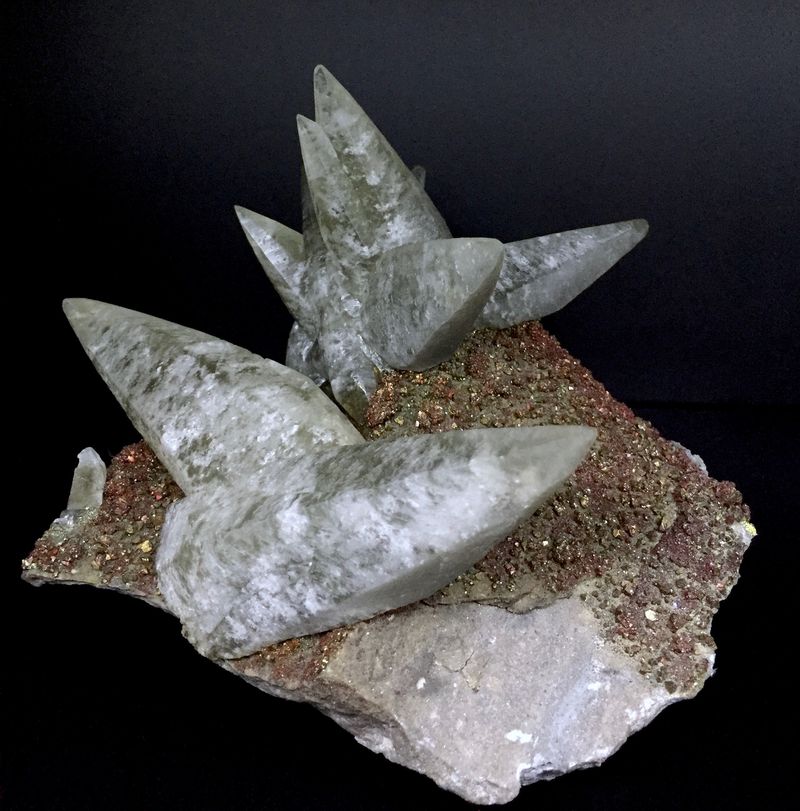

| Locality: | | Viburnum No. 29 Mine, Courtois, Viburnum Trend District, Washington County, Missouri, USA | |
|
| Dimensions: | 165 mm x 120 mm x 145 mm |
| Description: |
| Another from the 1995 cavern at No. 29 Mine. |
|
| Viewed: |
27957 Time(s) |
|
| Mineral: | Calcite |
| Locality: | | Sweetwater Mine, Ellington, Viburnum Trend District, Reynolds County, Missouri, USA | |
|
| Dimensions: | 15 inches x 7.25 inches x 9 inches |
| Description: |
| Of all the mines, Sweetwater is the most prolific specimen producer and produces some of the largest and most impactful pieces. |
|
| Viewed: |
28049 Time(s) |
|
| Mineral: | Calcite |

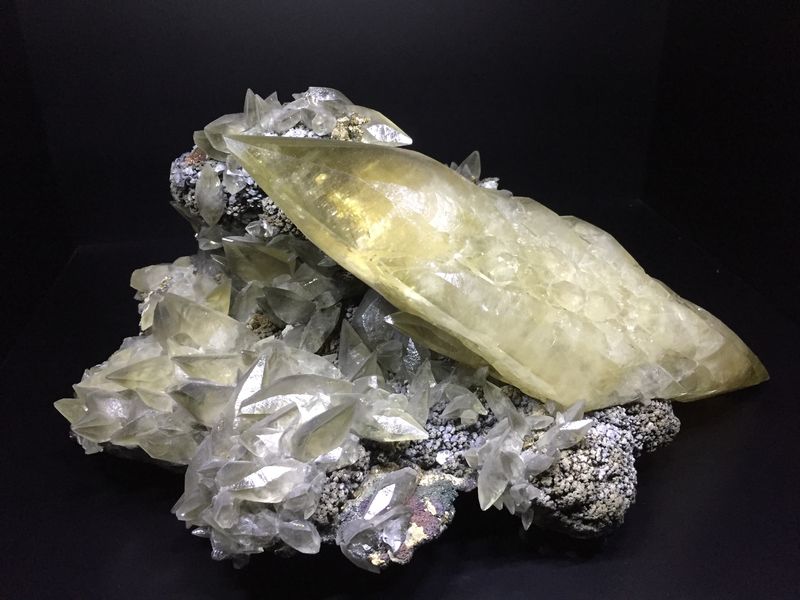

| Locality: | | Sweetwater Mine, Ellington, Viburnum Trend District, Reynolds County, Missouri, USA | |
|
| Dimensions: | 10.5 inches x 8 inches x 5.5 inches |
| Description: |
| Another large Sweetwater specimen. Sweetwater also produces an incredible variety of calcites. |
|
| Viewed: |
28017 Time(s) |
|
|
|
| Back to top |
|
|
Turbo
Joined: 30 Sep 2009
Posts: 260
Location: Delaware
|
| Posted: Sep 29, 2017 16:31 Post subject: Re: Bayley Viburnum Trend Calcite Collection |
|
|
Continued...
| Mineral: | Calcite |

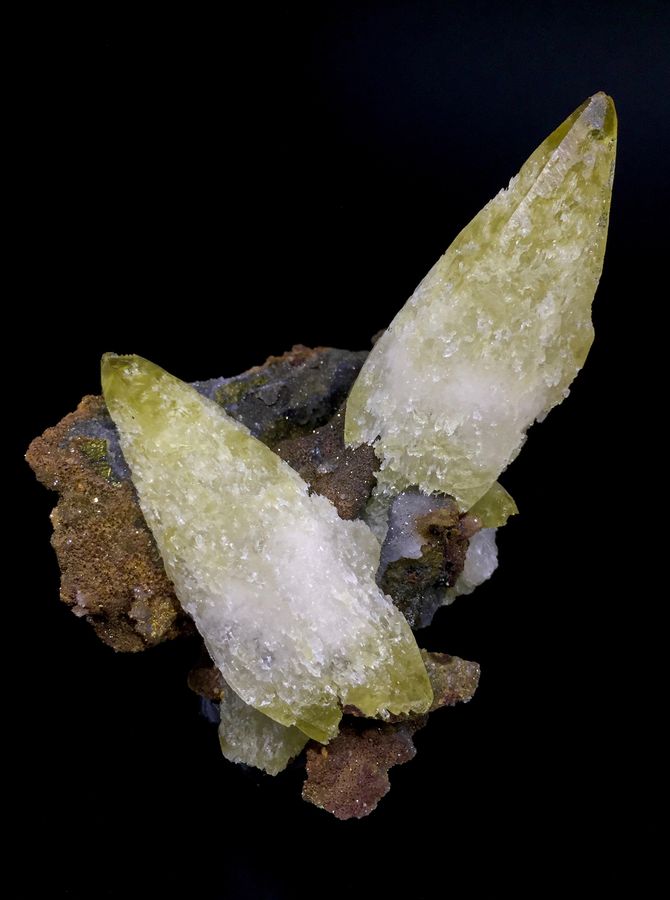

| Locality: | | Buick Mine, Bixby, Viburnum Trend District, Iron County, Missouri, USA | |
|
| Dimensions: | 10 cm x 10 cm x 11 cm |
| Description: |
| Etched calcites on a quartz coated matrix. Buick and Magmont produced the most quartz in the Viburnum Trend. |
|
| Viewed: |
27926 Time(s) |
|
| Mineral: | Calcite |

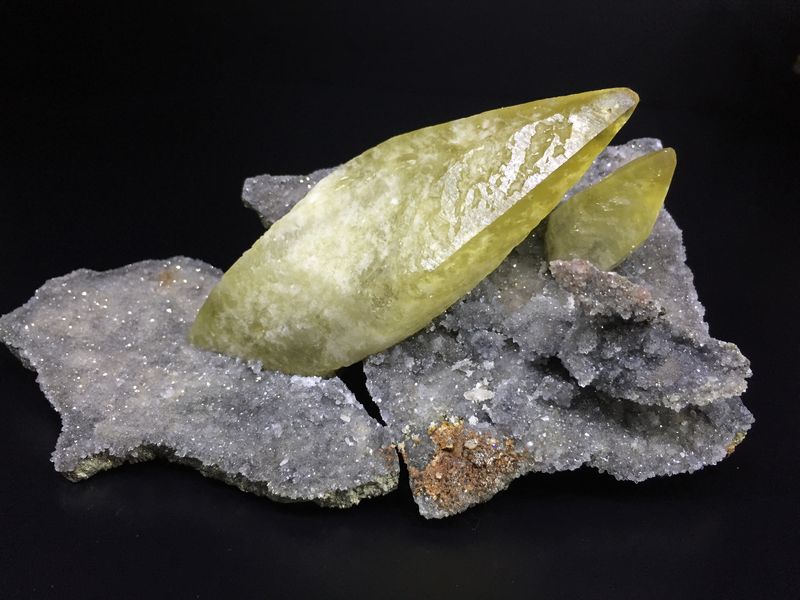

| Locality: | | Magmont Mine, Bixby, Viburnum Trend District, Iron County, Missouri, USA | |
|
| Dimensions: | 14 cm x 7.5 cm x 3 cm |
| Description: |
| Calcite on quartz-coated marcasite plates. Buick and Magmont are connected and specimens from the two mines often bear resemblance and associate with quartz. |
|
| Viewed: |
27896 Time(s) |
|
| Mineral: | Calcite |

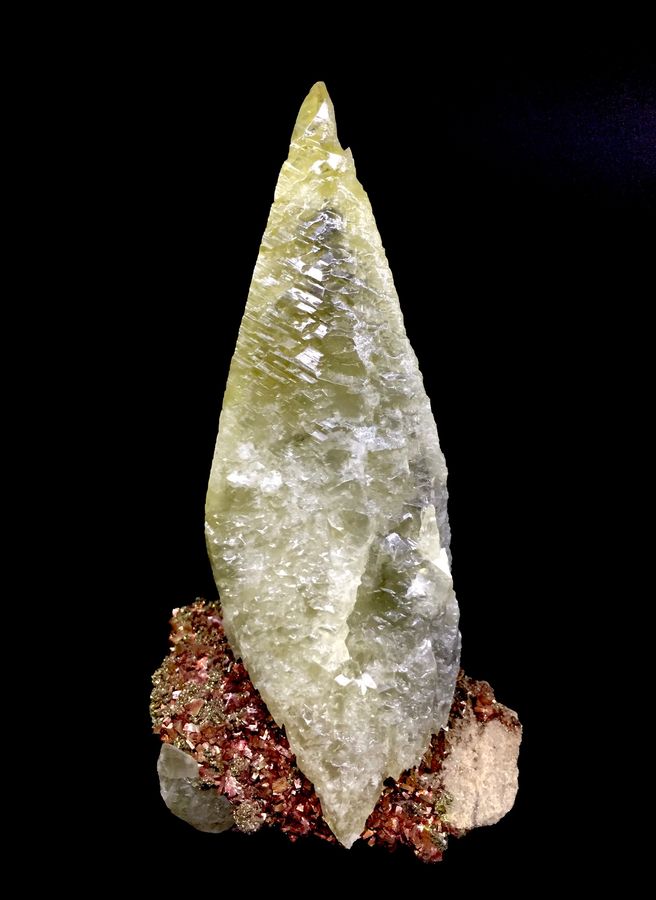

| Locality: | | Viburnum No. 28 Mine, Courtois, Viburnum Trend District, Washington County, Missouri, USA | |
|
| Dimensions: | 135 mm x 75 mm x 55 mm |
| Description: |
| Another from the same find as the previously posted specimen from No. 28 Mine. |
|
| Viewed: |
27851 Time(s) |
|
| Mineral: | Calcite |

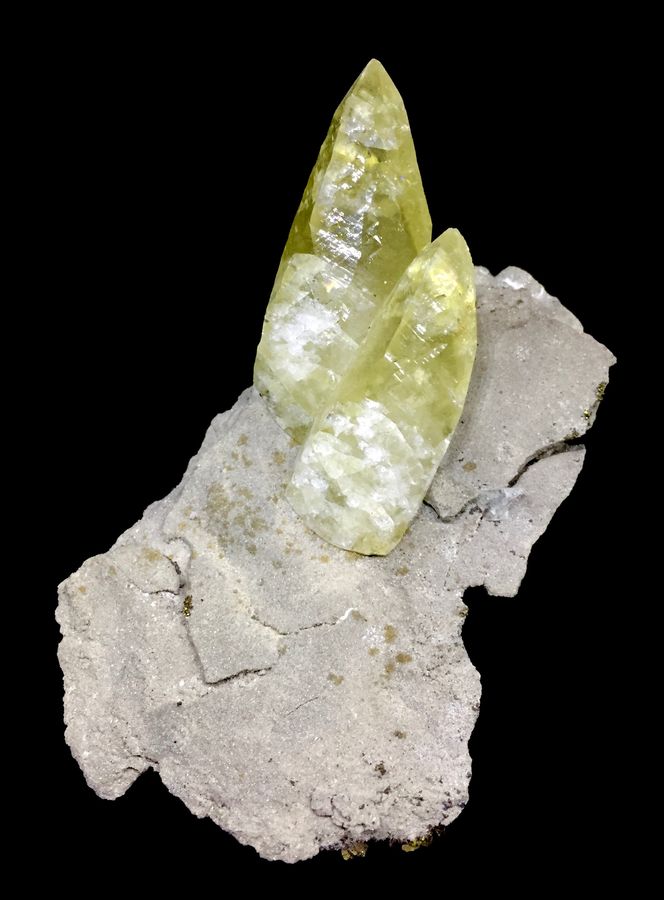

| Locality: | | Sweetwater Mine, Ellington, Viburnum Trend District, Reynolds County, Missouri, USA | |
|
| Dimensions: | 11 cm x 5.5 cm x 2 cm |
| Description: |
| An early Sweetwater specimen dated 1973. |
|
| Viewed: |
27870 Time(s) |
|
| Mineral: | Calcite |

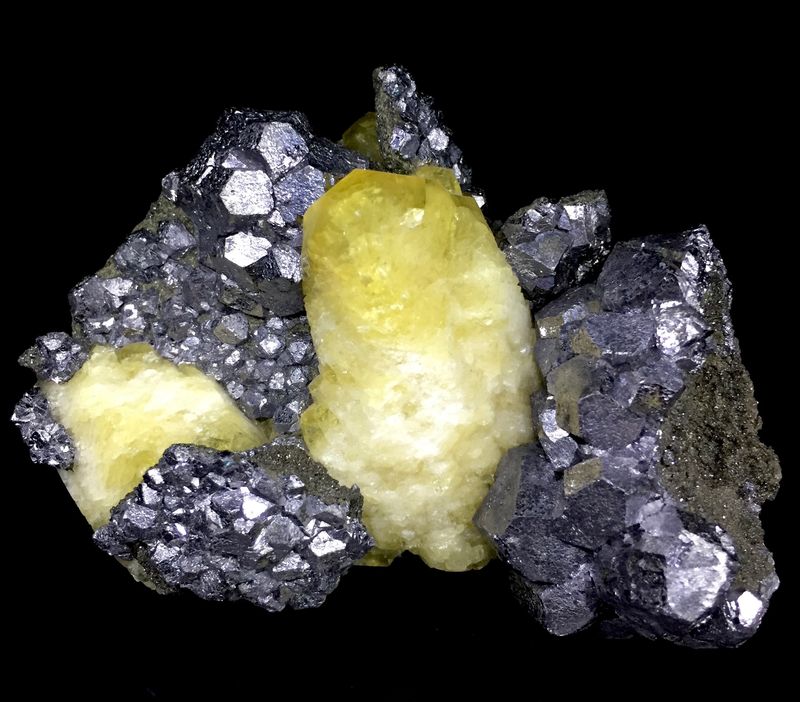

| Locality: | | West Fork Mine, West Fork, Viburnum Trend District, Reynolds County, Missouri, USA | |
|
| Dimensions: | 12 cm x 8 cm x 6 cm |
| Description: |
| Calcite on galena. This is the only West Fork calcite specimen I have come across so far. |
|
| Viewed: |
27865 Time(s) |
|
|
|
| Back to top |
|
|
Turbo
Joined: 30 Sep 2009
Posts: 260
Location: Delaware
|
| Posted: Oct 01, 2017 10:30 Post subject: Re: Bayley Viburnum Trend Calcite Collection |
|
|
This is one specimen I've been asking around about and have not yet found an answer. I've noticed some of the No. 29 Mine Calcites are labeled as "Czar Drift." In fact, the two that I have seen, this one being one of them, includes a Jim's Minerals label, from the Boron, CA show. My question is, are those specimens labeled "Czar Drift" part of the same big-cavern 1995 find in No. 29 Mine? They look identical, but I want to be sure. I have also not been able to find any reports of the No. 29 Mine discovery, which shocked me since it was so significant. Thanks in advance for any further knowledge on this!
Best,
Ed Bayley
| Mineral: | Calcite |

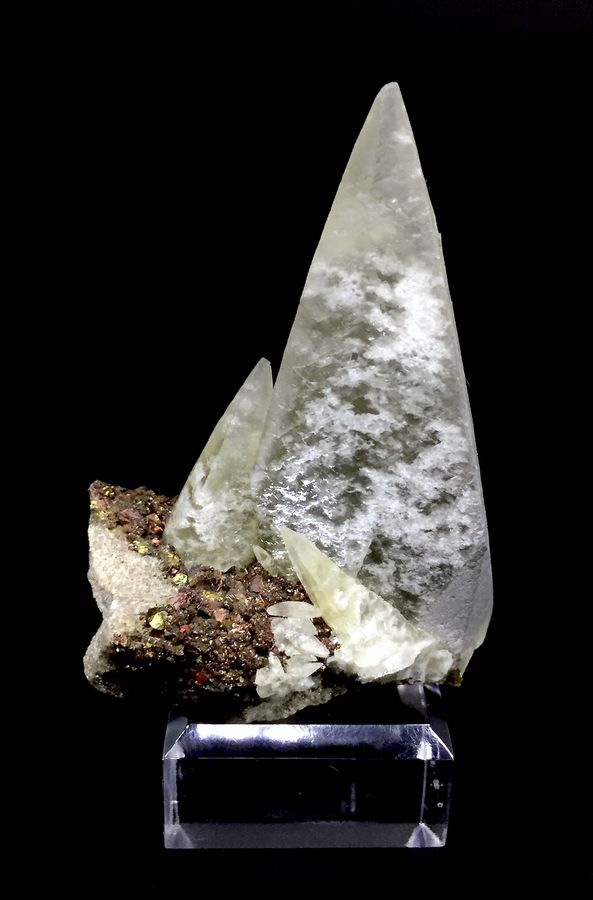

| Locality: | | Viburnum No. 29 Mine, Courtois, Viburnum Trend District, Washington County, Missouri, USA | |
|
| Dimensions: | 8x5.6x3.8cm |
| Description: |
| "Czar Drift" Specimen. Bob Trimingham and Jim's Minerals labels. |
|
| Viewed: |
27629 Time(s) |
|
|
|
| Back to top |
|
|
Turbo
Joined: 30 Sep 2009
Posts: 260
Location: Delaware
|
| Posted: Oct 05, 2017 21:13 Post subject: Re: Bayley Viburnum Trend Calcite Collection |
|
|
A few more.
| Mineral: | Calcite |

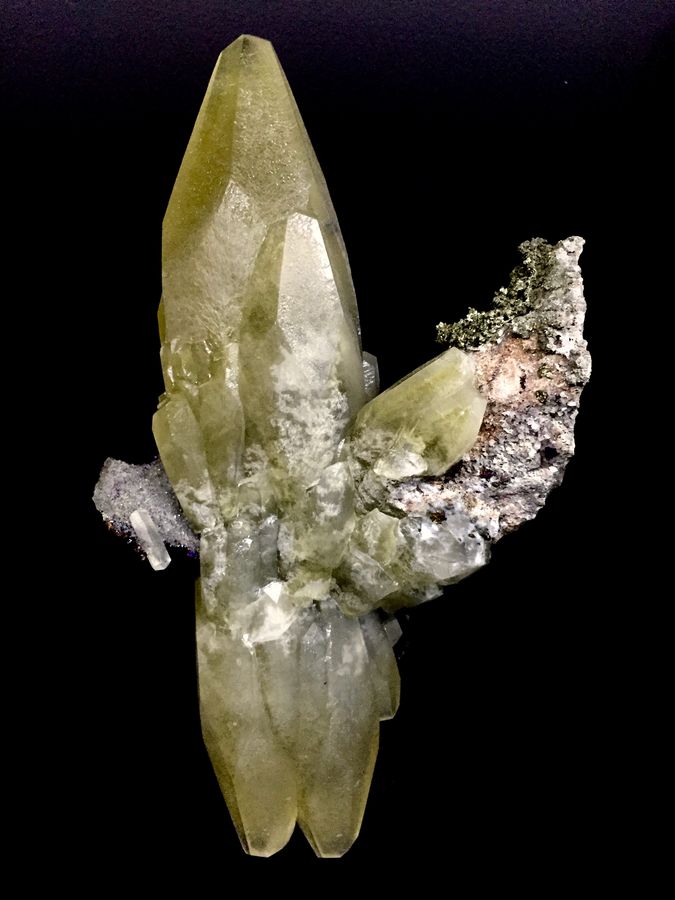

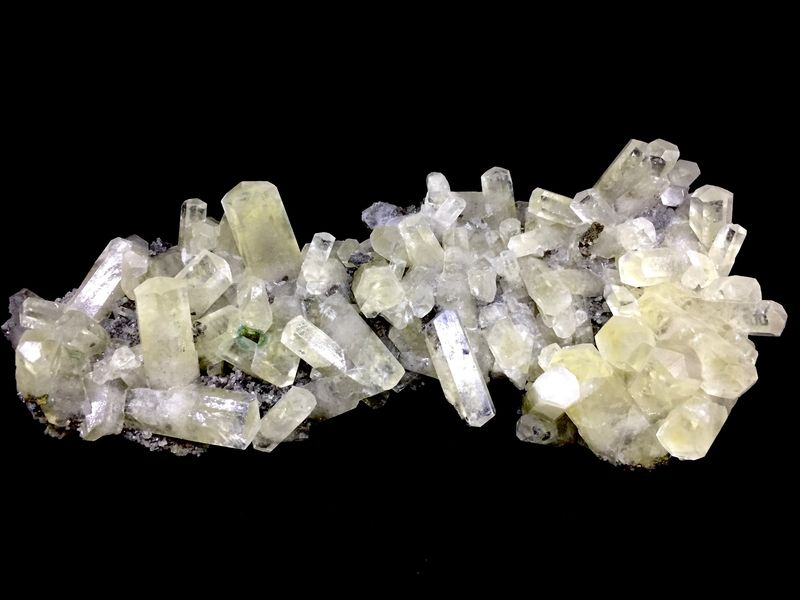

| Locality: | | Sweetwater Mine, Ellington, Viburnum Trend District, Reynolds County, Missouri, USA | |
|
| Dimensions: | 17.5 cm x 7 cm x 3 cm |
| Description: |
| Prismatic crystals from Sweetwater Mine. |
|
| Viewed: |
27410 Time(s) |
|
| Mineral: | Calcite |

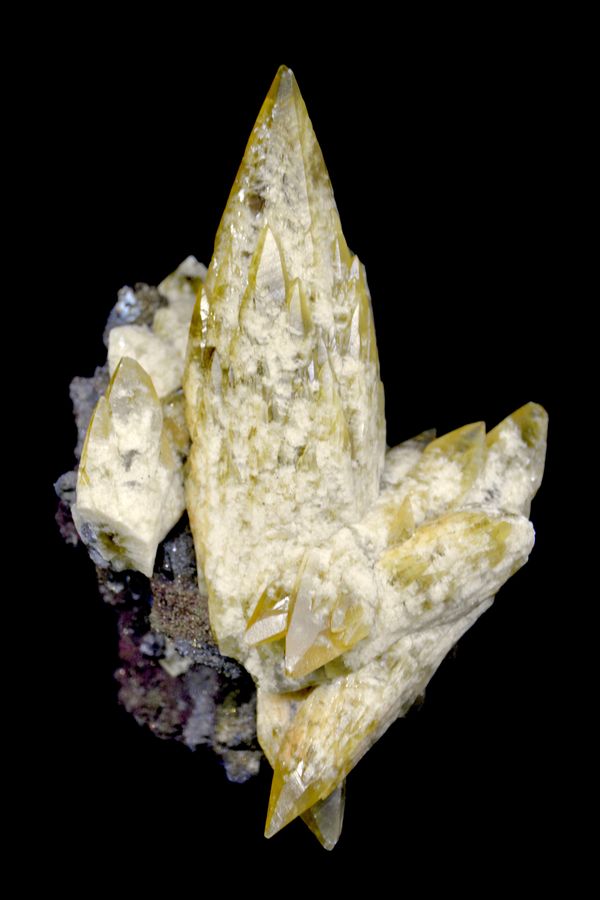

| Locality: | | Fletcher Mine, West Fork, Viburnum Trend District, Reynolds County, Missouri, USA | |
|
| Dimensions: | 16 cm x 12 cm x 6 cm |
| Description: |
| Calcite on pyrite from the 2015 pillar pockets. |
|
| Viewed: |
27426 Time(s) |
|
| Mineral: | Calcite |

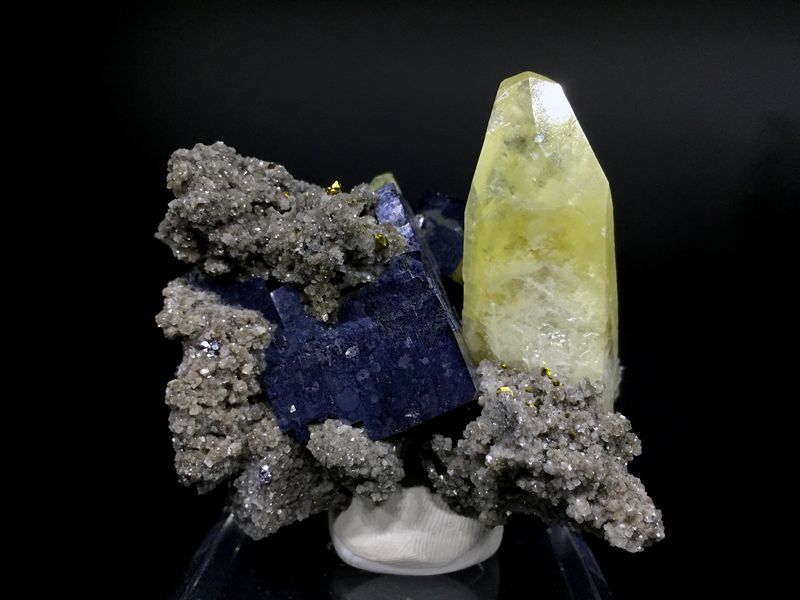

| Locality: | | Sweetwater Mine, Ellington, Viburnum Trend District, Reynolds County, Missouri, USA | |
|
| Dimensions: | 7 cm x 6 cm x 6 cm |
| Description: |
| Calcite and galena. A nice pair side by side. |
|
| Viewed: |
27446 Time(s) |
|
|
|
| Back to top |
|
|
Bob Harman
Joined: 06 Nov 2015
Posts: 765
|
| Posted: Oct 06, 2017 09:36 Post subject: Re: Bayley Viburnum Trend Calcite Collection |
|
|
Very nice specimens, especially of the various calcite habits.
One long running question about the Viburnum Trend specimens involves the multicolored iridescent chalcopyrite. Your last picture shows a few gold colored examples next to the galena and calcite. Many collectors and dealers say that the vast majority of these specimens are either enhanced or fabricated with a very brief acid soaking of non-iridescent crystals. Other collectors and dealers say that while you can enhance the iridescence, most good specimens are, in fact, natural. The very very brief soaking seems not to affect the calcites, dolomites and other minerals.
All that I know is that there are both opinions, the specimens are colorful, relatively affordable and very commonly out there in the mineral marketplace. BOB
|
|
