PostPosted: Jun 13, 2020 09:25    Post subject: Habit restriction of garnets

Although they belong to the isometric system holohedral class (hexaoctahedral) and although they occur in a variety of rocks with diverse pressure and temperature conditions of formation, garnets habit is almost* exclusively rhombic-dodecahedral, trapezohedral (icositetrahedral) or a combination.
After reading some literature about garnets and raising the topic in Mindat ( https://www.mindat.org/mesg-516040.html ), at the moment I've been unable to find specific reasons explaining this restriction.

What prevents garnets from forming the rest of the polyhedrons of his crystalline class?

Maybe somebody can help?



*some exceptions as follow:



{100} Grossular.jpeg
 Mineral: Grossular
 Locality:
Vesper Peak, Sultan Basin, Sultan District, Snohomish County, Washington, USA
 Dimensions: Main crystal: 10 mm
 Description:
Garnet crystal with rhombic-dodecahedral habit modified by the cube

Image modified from © Jaimy Henman
(https://www.mindat.org/photo-596294.html)
 Viewed:  4195 Time(s)

{100} Grossular.jpeg



{111} Hibschite.jpg

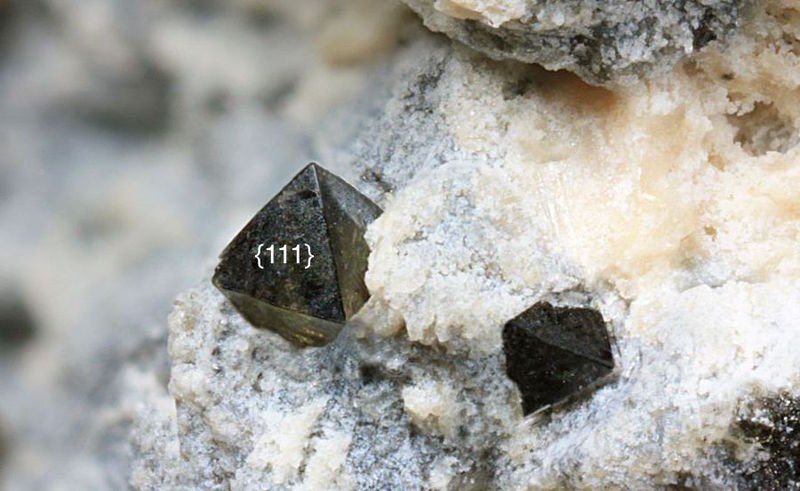

 Mineral: Grossular (variety hibschite)
 Locality:
Acquasaliente Creek, Contrade Maglio-Pornaro, Munari Valley, Tretto, Schio, Vicenza Province, Veneto, Italy
 Dimensions: Largest crystal: 0.5 mm
 Description:
Hibschite usually crystallizes with octahedral habit.

Image modified from © Antonio Zordan (https://www.mindat.org/photo-557286.html)
 Viewed:  4195 Time(s)

{111} Hibschite.jpg



 Mineral: Spessartine
 Locality:
Rock Run area, Potomac River, Montgomery County, Maryland, USA
 Dimensions: Crystal size: 0.5 mm
 Description:
A completely cubic garnet!

Image © - J. Nelson Cubic Garnets found in Maryland and Virginia streams, USA (http://mineralzine.chez.com/ancien/info4-4-b.htm)
 Viewed:  4196 Time(s)



Back to top
Reply to topic Reply with quote
Like
4


Pete Richards
Site Admin



Joined: 29 Dec 2008
Posts: 698
Location: Northeast Ohio


Access to the FMF Gallery title=

View user's profile

Send private message

PostPosted: Jun 13, 2020 13:32    Post subject: Re: Habit restriction of garnets

Josele, you always have great questions!

There are theories of crystal growth that account for this, but due to their complexity I'm only going to provide some generalities from them.

The Law of Bravais, simplified, says that the importance of a face on a crystal - its size and/or frequency of occurrence - is proportional to the density of atoms in that plane. This is sort of an atomic level explanation of the general geometric principle that faces that grow the slowest are the largest. It says that if faces contain lots of atoms, it takes longer to fill a layer of that face, so it grows more slowly.

The Law of Bravais is quite successful in predicting the morphology of many crystals, but there are notable failures, Garnet is one of them.

In 1937, J.D.H. Donnay and A. Harker published a paper A New Law of Crystal Morphology Extending the Law of Bravais. The extension was to take account of the effects of symmetry elements found in certain space groups called glide planes and screw axes. I won't try to repeat the argument. Suffice it to say that one of their examples is garnet, the structure of which contains a glide plane. With their new law, they predicted that forms on garnet should be the trapezohedron {211}, the dodecahedron {110}, the cube {100} and the hexoctahedron {321}, in that order. This result probably suggests the cube should be more important than what we observe, but it is a pretty good prediction, as such things go.

The paper was published by the American Mineralogist, and for Americans at least (which is what I am, so I don't know about others!), it can be downloaded free from their website http://www.minsocam.org/msa/ammin/toc/. It is a very important classical paper on the theory of crystal morphology, and I encourage those with the interest to look it up!

_________________
Collecting and studying crystals with interesting habits, twinning, and epitaxy
Back to top
Reply to topic Reply with quote
Like
8


SteveB




Joined: 12 Oct 2015
Posts: 145
Location: Canberra

View user's profile

Send private message

PostPosted: Jun 13, 2020 14:20    Post subject: Re: Habit restriction of garnets

I’m out of my depth with that paper and the answer to the question. Browsing it, and my gut instinct about molecular representations I’m wondering if it would be correct to say the Law of Bravais is only the best approximation that is currently known? Like Newton’s efforts in physics still work today for reasonably accurate real world predictions and observations, Einstein improved on Newton which allows for better accuracy at different scales but still we don’t have definitive equations to describe physics in all instances. That is do we need a “chemistry Einstein” to improve on Bravais?

Thanks for that link too, a ton of information in that library
Back to top
Reply to topic Reply with quote
Like
1


Pete Richards
Site Admin



Joined: 29 Dec 2008
Posts: 698
Location: Northeast Ohio


Access to the FMF Gallery title=

View user's profile

Send private message

PostPosted: Jun 13, 2020 15:16    Post subject: Re: Habit restriction of garnets

That's a good question too, Steve!

For sure I don't know the full answer, the full theory, and I'm pretty sure no one does. What is now known as the Donnay-Harker Law is an improvement over the Bravais Law. But it does not really even get into chemsitry, it's basically just about how long it takes to put a bunch of marbles on a sheet of paper. Many other factors influence the shapes of crystals, and we know some from growing crystals ourselves, but many of the factors that influenced the shape of the quartz crystal you just found are no longer around to observe, so we try to make smart guesses rather than foolish ones.

Crystals don't grow in a vacuum - they grow in a medium of some sort - liquid, molten rock, solid rock, which provides the ions they need to grow, but also contains many other substances, and some of them may affect the shape of the crystal by adhering to certain faces and slowing down their growth rate. Temperature and pressure often play a role, as does the rate of growth, or the relative abundance of the negatively and positively charged ions feeding the crystal growth. We will never work it all out to the point that we can say why an already-existing crystal has exactly the shape it does. It's pretty exciting to be able to correctly "predict" that a garnet should be trapezohedral and/or dodecahedral, but I for one am not going to tangle my brain about why Josele's grossular from Vesper Peak has a cube face (as do mine). It's something about that place and time, it's neat to see, but who knows why? At least the cube is in short list of predicted forms. The theory does not predict an octahedral garnet like his hibschite at all, and octahedral faces on garnet are extremely rare otherwise.

_________________
Collecting and studying crystals with interesting habits, twinning, and epitaxy
Back to top
Reply to topic Reply with quote
Like
4


Josele




Joined: 10 Apr 2012
Posts: 354
Location: Tarifa, Spain


Access to the FMF Gallery title=

View user's profile

Send private message

PostPosted: Jun 13, 2020 17:18    Post subject: Re: Habit restriction of garnets

Thank you Pete and Steve. Asking is always easier than answering. But often for the asker (me in this case!) the problem is understanding the smart responses.
This garnet issue has always puzzled me and I really much appreciate your clues to focus the matter, especially when there is not a clear and simple answer.
And thanks again for providing me reading for the next days.

To be continued...
Back to top
Reply to topic Reply with quote
Like


SteveB




Joined: 12 Oct 2015
Posts: 145
Location: Canberra

View user's profile

Send private message

PostPosted: Jun 13, 2020 18:59    Post subject: Re: Habit restriction of garnets

It’s interesting to consider. Its an area I’m very ignorant about, but my knowledge from other scientific disciplines sets me thinking along symmetries like chiral. Where the same molecular structure can form but as mirror image shapes of each other which cause a large difference in outcome. If i recall oranges and lemons share this somewhere (organic chemistry?) so the same molecule in left handed form produces a sweet fruit while right handed the same molecule results in bitter. Maybe its the chemical makeup where a certain element restricts and/or prefers certain molecular bonds with the corresponding structure angles.

As Pete pointed out crystals grow under varying and changing conditions. It may be worth looking into chemical compositions of various garnets and group by crystal formation. My gut tells me its a chemistry answer that needs to be looked for as the chemical elements can form many shapes but prefer certain stable forms requiring the least amount of energy to achieve for the conditions. I dont think I’ve seen rocks containing crystals of one mineral in differing forms or shapes (actually agate geodes could be considered) but as for garnets are there any good surveys of a single deposit where crystal shape is varied Or is it large geograhic distances to find variations? I think colour, clarity, and size are related to element saturation, temperature, pressure and time. I don’t think shape is primarily related to those factors or it’d be common to have rocks containing minerals for example that are half dodecahedral and half cubic as one single crystal. I’d be more inclined to think its related to the chemical makeup where the amount of certain element may be high enough to alter molecular shape while at lower amounts it may instead precipitate out .

Its not exactly something we can test at home like growing salt crystals on the window sill . It’s a siutation we can’t directly observe in nature to determine how the growth conditions some into play.
Back to top
Reply to topic Reply with quote
Like
1


Bob Morgan




Joined: 18 Jan 2018
Posts: 89
Location: Savannah, Georgia


Access to the FMF Gallery title=

View user's profile

Send private message

PostPosted: Jun 13, 2020 22:06    Post subject: Re: Habit restriction of garnets

There is another theoretical paper that models more closely the occurrences of faces of garnets. It is "Morphology of Garnets and Structure of F Slices Determined from a PBC Analysis" By P. Bennema that is in the Journal of Crystal Growth 62 (1983) 41-60. I do think we are getting closer to understanding the rarer faces with the Periodic Bond Chain (PBC) approach, particularly if relaxation of atoms at the surface is factored in that may produce bond chains that stabilize such faces.
Lots'a luck understanding it!
They did find that chemical composition of some garnets had an effect on the relative dominance between dodecahedral and trapezohedral faces.

There is another common garnet face that hasn't been mentioned, the hexoctahedral which usually appears as thin faces between dodecahedral and trapezohedral faces, most commonly on hessonites.

And Val 'd Ala in Italy also has cube faces similar to Vesper Peak
.
Then there are tetrahexahedral faces most noticeably on crystals from Inyo County, California, but also on some from Merilani, Tanzania and on rare occasions from Pakistan.

I have heard that some garnets from the Isle of Elba have small octahedral faces - very rare.

Finally, I know of two localities which have trisoctahedral faces. One is Black Lake, Quebec, Canada the other is Rudnyi, Kazahkstan. The latter has trisoctahedral pyramids between dodecahedral faces with a small central octahedral face in each.

I will try to produce photos of them if there is interest.
Back to top
Reply to topic Reply with quote
Like
3


fena kuiperi




Joined: 06 Apr 2016
Posts: 18

View user's profile

Send private message

PostPosted: Jun 14, 2020 03:03    Post subject: Re: Habit restriction of garnets

I'm just an amateur, but very interested in crystal morphology, photo's would be very welcome!
Back to top
Reply to topic Reply with quote
Like


Duncan Miller




Joined: 25 Apr 2009
Posts: 127
Location: South Africa


Access to the FMF Gallery title=

View user's profile

Send private message

PostPosted: Jun 14, 2020 04:10    Post subject: Re: Habit restriction of garnets

This fairly recent paper isn't about garnets, but it has a potentially useful list of references and gives one some idea of the complexity of research in trying to understand crystal habits. It should be downloadable in its entirety.
http://www.sciencedirect.com/science/article/pii/S0960897416300158
(link normalized by FMF)
Back to top
Reply to topic Reply with quote
Like
2


Roger Warin




Joined: 23 Jan 2013
Posts: 973


Access to the FMF Gallery title=

View user's profile

Send private message

PostPosted: Jun 14, 2020 16:19    Post subject: Re: Habit restriction of garnets

Hello,
The growth of the crystal is controlled in particular by the thermodynamic stability of the reticular planes, but it is also necessary to add to it the kinetics of the crystallization, very dependent on the conditions of temperature for example. This kinetics is also a function of the local concentration of ions which deposit on the crystal. This is where the difference in behavior between apex, edges, and planes comes in.
Relative to the cube, the octahedral and dodecahedral forms are the result of additions of units along directions of accelerated growth.
Of course, it can graft on competitions with other molecules or ions that can bind at the receptor site.
Roger Warin.

PS: temperature is an important factor. Thus, twins (an irregularity in the basic lattice) have a higher probability of appearance when the temperature is at the highest in the range allowed for a crystalline phase.
Back to top
Reply to topic Reply with quote
Like
2


Bob Morgan




Joined: 18 Jan 2018
Posts: 89
Location: Savannah, Georgia


Access to the FMF Gallery title=

View user's profile

Send private message

PostPosted: Jun 14, 2020 21:00    Post subject: Re: Habit restriction of garnets

Here are some photos of less common garnet faces.


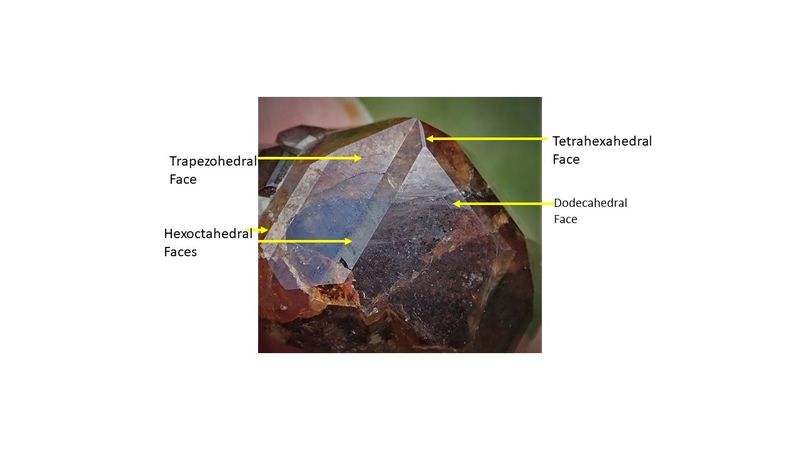

 Mineral: 'Garnet'
 Dimensions: 1.8 cm
 Description:
 Viewed:  3840 Time(s)




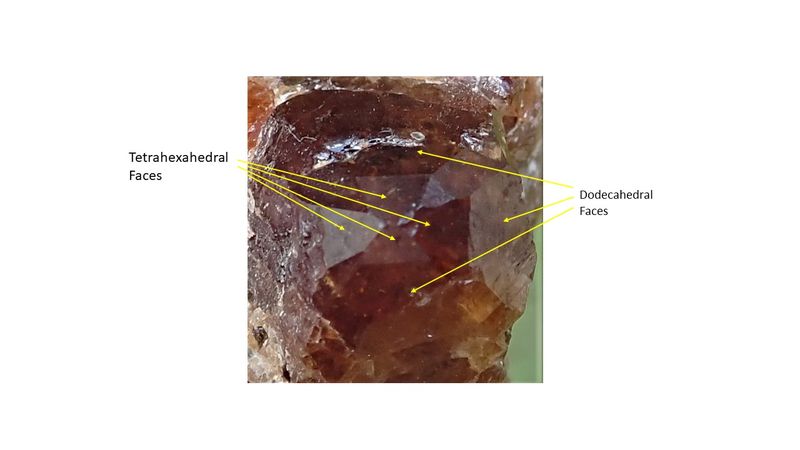

 Mineral: 'Garnet'
 Dimensions: .8 cm
 Description:
 Viewed:  3828 Time(s)




P6140027 (2).JPG
 Mineral: 'Garnet'
 Dimensions: 1.7 cm
 Description:

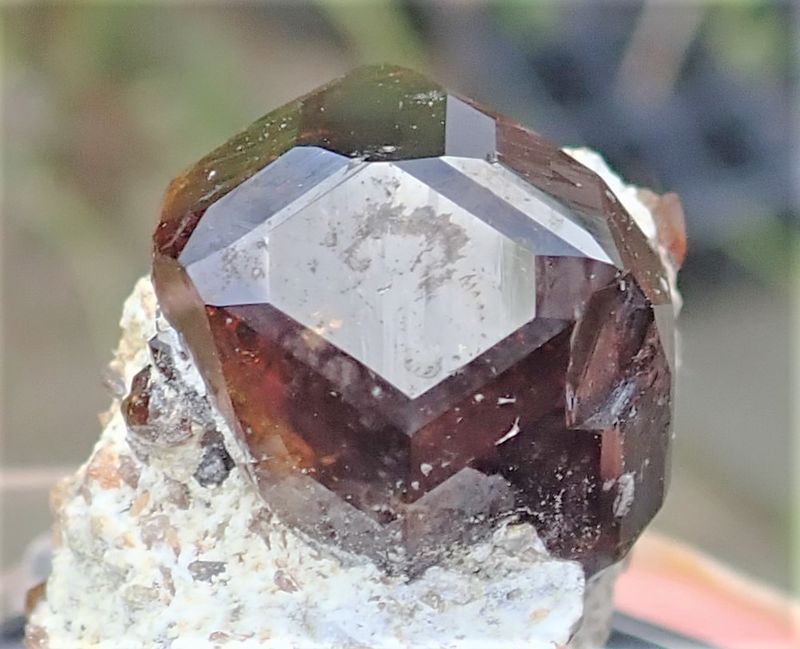

tetrahexahedral faces on both ends of a dodecahedral face bordered by hexoctahedral and trapezohedral bands
 Viewed:  3853 Time(s)

P6140027 (2).JPG


Back to top
Reply to topic Reply with quote
Like
7


Bob Morgan




Joined: 18 Jan 2018
Posts: 89
Location: Savannah, Georgia


Access to the FMF Gallery title=

View user's profile

Send private message

PostPosted: Jun 14, 2020 22:09    Post subject: Re: Habit restriction of garnets

More garnet faces


 Mineral: 'Garnet'
 Locality:
Tubussis Farm 22, Karibib District, Erongo Region, Namibia
 Dimensions: 1 cm across

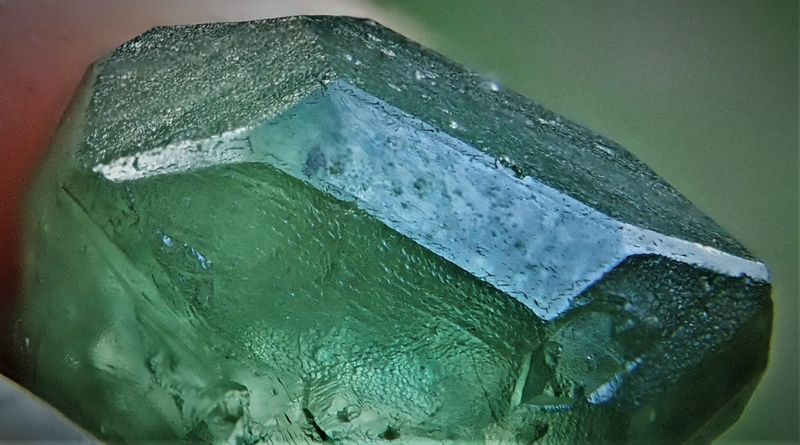

 Description:
The main face is dodecahedral. On each end are thin tetrahexahedral faces. On the left corner of the dodecahederal face is tetrahexahedral face of a shallower tetrahexahedral form.
 Viewed:  3825 Time(s)

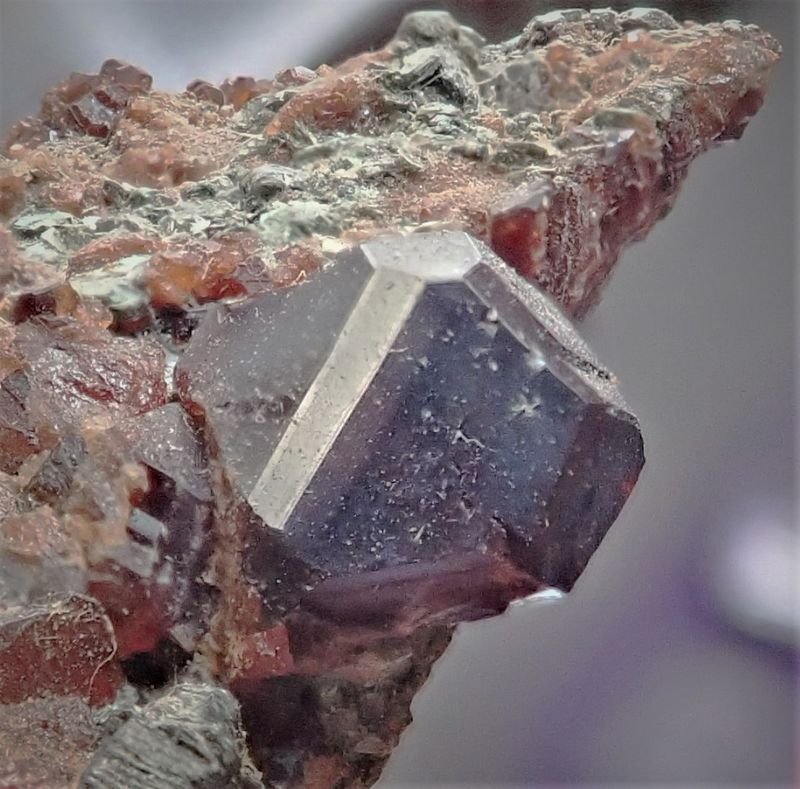

P6130018 (3).JPG
 Mineral: 'Garnet'
 Locality:
Val d'Ala, Valli di Lanzo, Metropolitan City of Turin Province, Piedmont (Piemonte), Italy
 Dimensions: 0.8 cm
 Description:
Dominantly trapezohederal with dodecahederal edges topped by a cube face
 Viewed:  3823 Time(s)

P6130018 (3).JPG



P6130014 (2).JPG
 Mineral: 'Garnet'
 Locality:
Rudny Altai, Rudny, Kostanay Region, Kazakhstan
 Dimensions: 0.5 cm

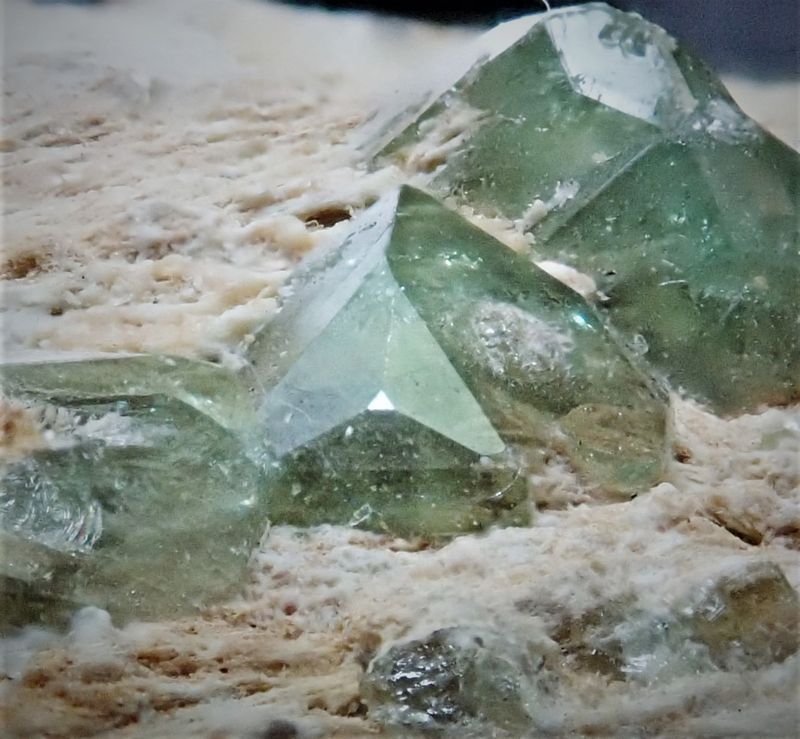

 Description:
A trisoctahederal pyramid nested between dodecahedral faces with a small triangular, octahederal top.
 Viewed:  3821 Time(s)

P6130014 (2).JPG


Back to top
Reply to topic Reply with quote
Like
11


fena kuiperi




Joined: 06 Apr 2016
Posts: 18

View user's profile

Send private message

PostPosted: Jun 15, 2020 03:35    Post subject: Re: Habit restriction of garnets

Thanks a lot for these photo's, very special to see these faces, makes my day!
Back to top
Reply to topic Reply with quote
Like
1


Sante Celiberti




Joined: 04 Oct 2019
Posts: 329
Location: Tuscany


Access to the FMF Gallery title=

View user's profile

Send private message

PostPosted: Jul 26, 2020 16:10    Post subject: Re: Habit restriction of garnets

Hello.

Thanks to the information contained in this thread I was able today to purchase this small sample of Alpine grossular at the 52th mineral fair of Massa Marittima which will end at midnight.
Without this valuable information I would not have considered it.

Thank you all.

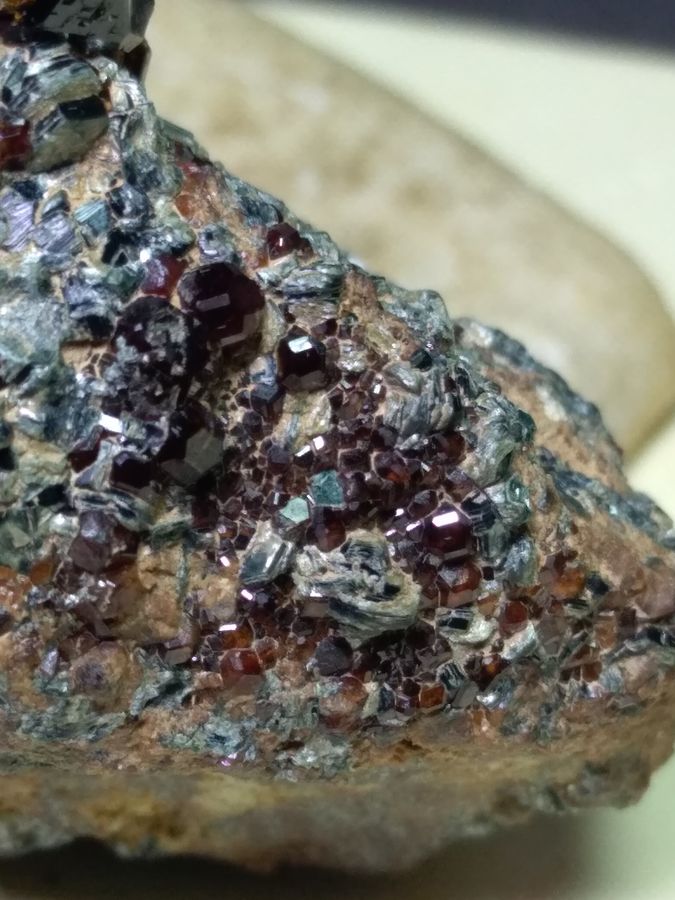

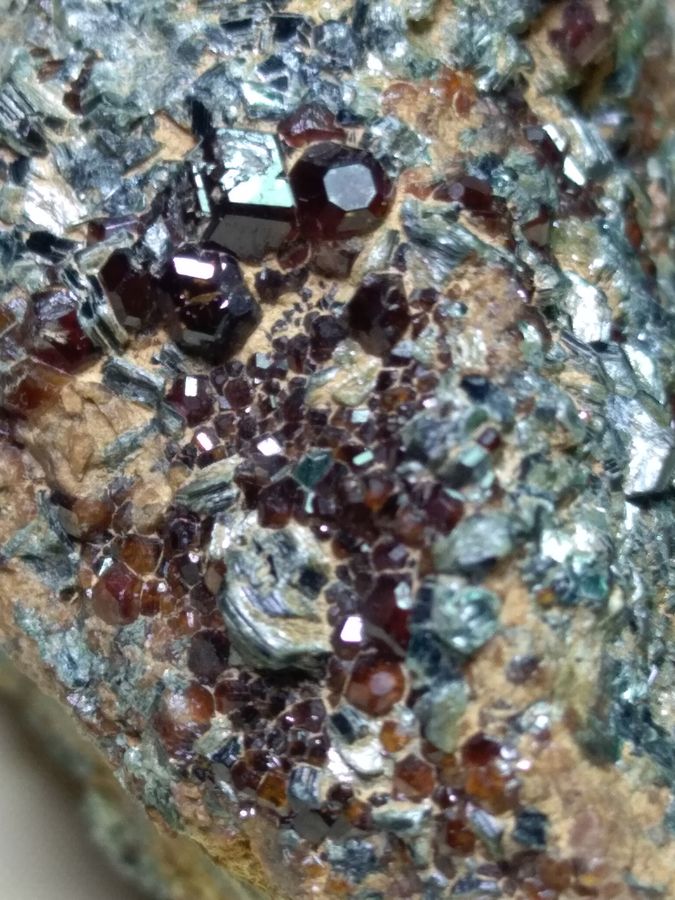

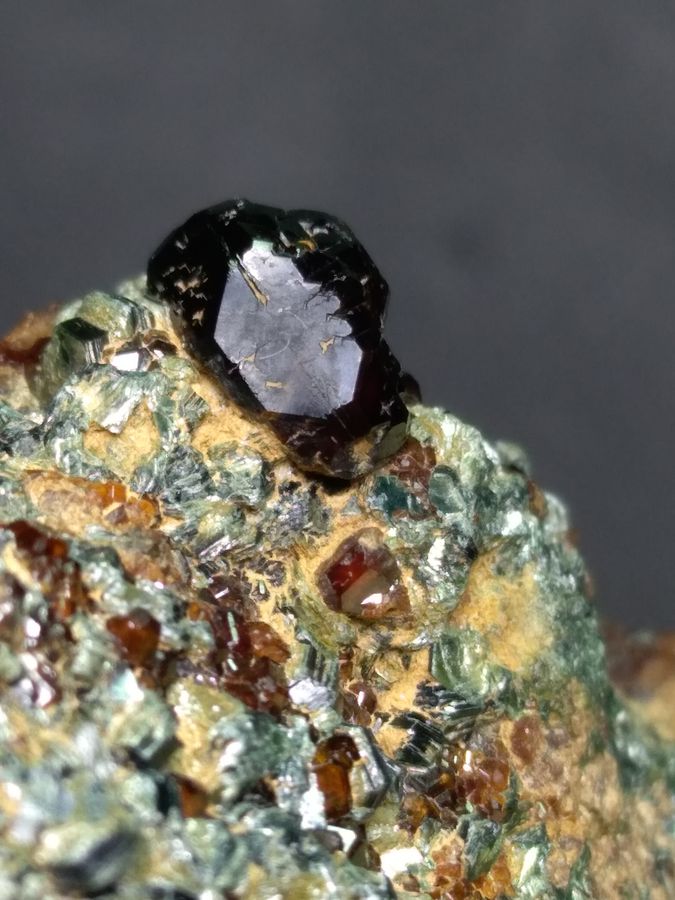

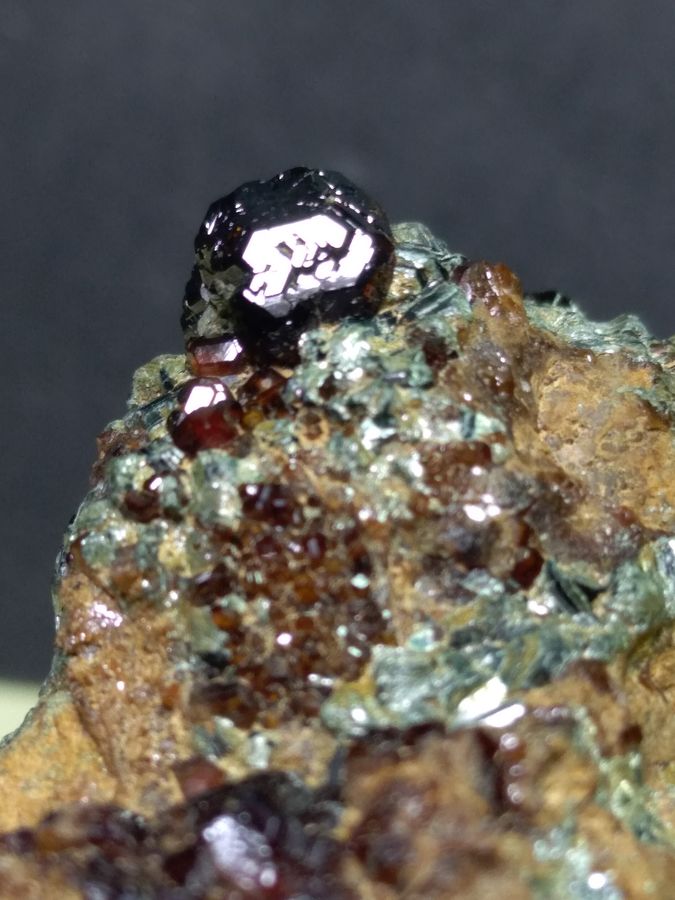

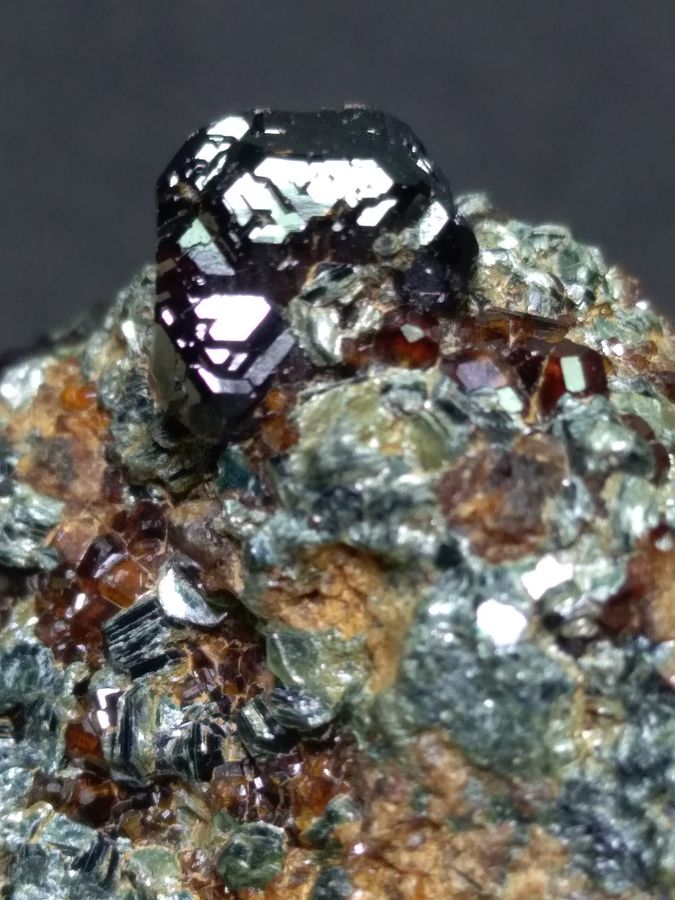

 Mineral: Grossular (variety hessonite), Clinochlore
 Locality:
Faiallo Pass, Urbe, Savona Province, Liguria, Italy
 Dimensions: 48 x 36 mm
 Description:
The main crystal, which measures 6 mm, shows a dominant cubic habit.
 Viewed:  2429 Time(s)




 Mineral: Grossular (variety hessonite), Clinochlore
 Locality:
Faiallo Pass, Urbe, Savona Province, Liguria, Italy
 Dimensions: 48 x 36 mm
 Description:
Back view. This face is perfectly parallel to the frontal one.
 Viewed:  2427 Time(s)




 Mineral: Grossular (Var.: Hessonite), Clinochlore
 Locality:
Faiallo Pass, Urbe, Savona Province, Liguria, Italy
 Dimensions: 48 x 36 mm
 Description:
A lateral face oriented 90° with the previous ones.
 Viewed:  2426 Time(s)




 Mineral: Grossular (variety hessonite), Clinochlore
 Locality:
Faiallo Pass, Urbe, Savona Province, Liguria, Italy
 Dimensions: 48 x 36 mm
 Description:
Zenithal view. A different view of the cubic dominance and a cubic face as confirmation.
 Viewed:  2424 Time(s)




 Mineral: Grossular (variety hessonite), Clinochlore
 Locality:
Faiallo Pass, Urbe, Savona Province, Liguria, Italy
 Dimensions: 48 x 36 mm
 Description:
Smaller crystals, some with suspected cubic faces.
 Viewed:  2427 Time(s)




 Mineral: Grossular (variety hessonite), Clinochlore
 Locality:
Faiallo Pass, Urbe, Savona Province, Liguria, Italy
 Dimensions: 48 x 36 mm
 Description:
Different side. Small crystals with suspected cubic faces.
 Viewed:  2429 Time(s)



Back to top
Reply to topic Reply with quote
Like
7

Display posts from previous:
   Index -> Minerals and Mineralogy   All times are GMT - 5 Hours
Page 1 of 1



Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum
You cannot attach files in this forum
You can download files in this forum


All pictures, text, design © Forum FMF 2006-2020


Powered by FMF
