 Posted: Aug 18, 2021 14:08 Post subject: A Tri-State Galena and Calcite |
|
|

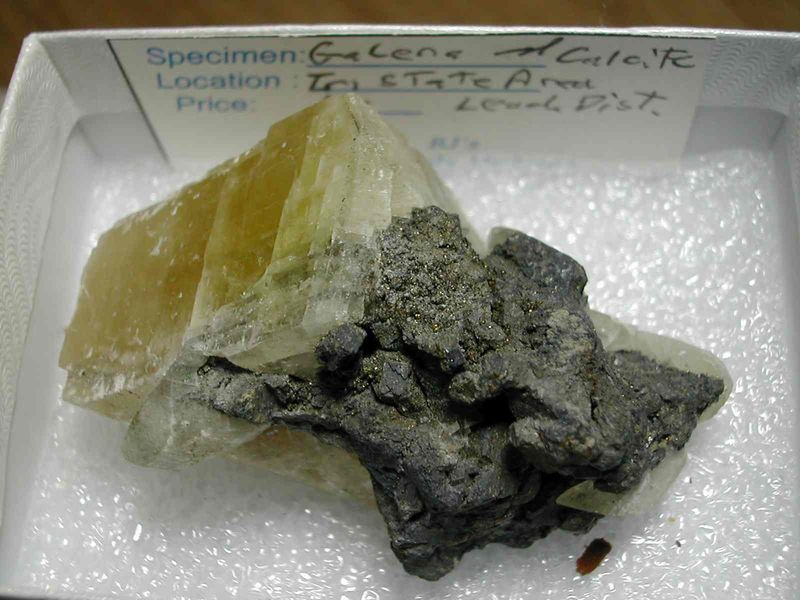

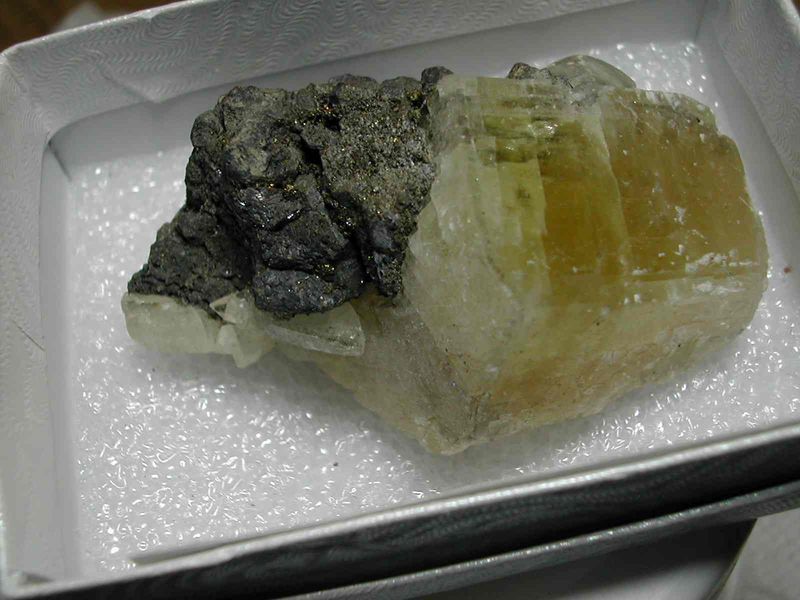

A Tri-State Galena and Calcite.
| Mineral: | Galena and Calcite |
| Locality: | | Tri-State District, Jasper County, Missouri, USA |  |
|
| Dimensions: | Unknown |
| Description: |
|
| Viewed: |
6967 Time(s) |
|
| Mineral: | Galena and Calcite |
| Locality: | | Tri-State District, Jasper County, Missouri, USA | |
|
| Dimensions: | Unknown |
| Description: |
|
| Viewed: |
6981 Time(s) |
|
|
|
| Back to top |
|
 |
Jordi Fabre
Overall coordinator of the Forum
Joined: 07 Aug 2006
Posts: 4827
Location: Barcelona
|
| Posted: Aug 19, 2021 02:27 Post subject: Re: A Tri-State Galena and Calcite |
|
|
| R Saunders wrote: |
Mineral: Galena and Calcite
Locality: Tri-State District, Jasper County, Missouri, USA
Size:
Description:
|
Size please?
|
|
| Back to top |
|
|
R Saunders
Joined: 28 Jul 2018
Posts: 126
Location: Michigan
|
| Posted: Aug 20, 2021 00:39 Post subject: Re: A Tri-State Galena and Calcite |
|
|
| Jordi Fabre wrote: | | R Saunders wrote: |
Mineral: Galena and Calcite
Locality: Tri-State District, Jasper County, Missouri, USA
Size:
Description:
|
Size please?
|
In storage and cannot measure it..
Bob
______________________________________________
OK
|
|
| Back to top |
|
|
R Saunders
Joined: 28 Jul 2018
Posts: 126
Location: Michigan
|
| Posted: Sep 22, 2021 09:43 Post subject: Re: A Tri-State Galena and Calcite |
|
|
| my records show that it weighs 108 grams.
|
|
| Back to top |
|
|
rgangue
Joined: 21 Sep 2020
Posts: 10
Location: Missouri
|
| Posted: Sep 22, 2021 10:18 Post subject: Re: A Tri-State Galena and Calcite |
|
|
This has all the earmarks of actually being from the Viburnum Trend Mining District not the Tri-State District. These are often confused with each other since at least part of each district is in the State of Missouri, USA. They are both Mississippi Valley Type deposits but there are characteristic differences.
They are located about 200 miles apart. The Tri-State District encompasses parts of three states: Oklahoma, Kansas, Missouri (hence the name) and is on the SW corner of Missouri. The Viburnum Trend is in Eastern Missouri. The Tri-State was zinc rich and had much more and larger sphalerite crystals. The matrix is characteristically Chert or a light gray limestone. The Viburnum Trend was more Lead rich and on a dolostone host. The easiest detection is the Viburnum trend has small whitish rhombs of dolomite somewhere on most specimens. The dolomite from the Tri-State tends to be much larger saddle shaped tan to pink crystals.
I wrote an article showing a comparison of the districts for my webpage but alas it was lost in my divorce.
|
|
| Back to top |
|
|
R Saunders
Joined: 28 Jul 2018
Posts: 126
Location: Michigan
|
| Posted: Sep 22, 2021 10:56 Post subject: Re: A Tri-State Galena and Calcite |
|
|
| Thank you, it was purchased at a rock show and was tagged that way.
|
|
| Back to top |
|
|
rgangue
Joined: 21 Sep 2020
Posts: 10
Location: Missouri
|
| Posted: Sep 22, 2021 11:24 Post subject: Re: A Tri-State Galena and Calcite |
|
|
| R Saunders wrote: | | Thank you, it was purchased and a rock show and was tagged that way. |
I see many of these mislabeled by people who think the districts are one and the same. I am fairly certain its from the Viburnum Trend. I little better picture of the other sides would verify.
|
|
| Back to top |
|
|
John Hodgson
Joined: 14 May 2020
Posts: 14
Location: Michigan
|
| Posted: Sep 22, 2021 19:37 Post subject: Re: A Tri-State Galena and Calcite |
|
|

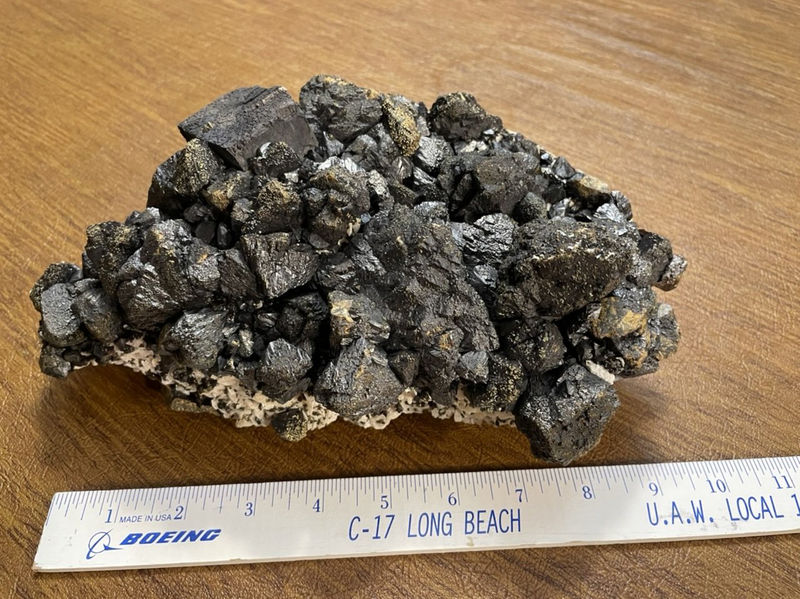

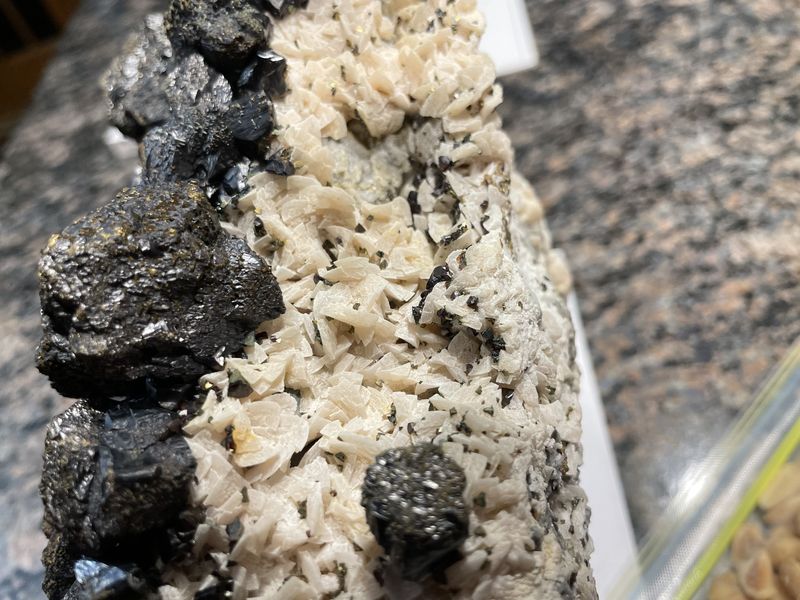

This is very interesting. I have a large specimen of galena, sphalerite, chalcopyrite and dolomite that was labeled Eagle Picher Mine, Ottawa County, OK. This is in the Tri-State area. The dolomite appears very white and rhomb-like. However, the sphalerite crystals are large. Could this be the wrong location?
| Mineral: | Galena, Sphalerite, |
| Locality: | | Eagle Picher Mine, Picher Field, Cardin, Tri-State District, Ottawa County, Oklahoma, USA | |
|
| Dimensions: | 26 cm x 15 cm x 11 cm |
| Description: |
|
| Viewed: |
6308 Time(s) |
|
| Mineral: | Galena, Sphalerite, Chalcopyrite, Dolomite |
| Locality: | | Eagle Picher Mine, Picher Field, Cardin, Tri-State District, Ottawa County, Oklahoma, USA | |
|
| Dimensions: | 26 cm x 15 cm x 11 cm |
| Description: |
|
| Viewed: |
6315 Time(s) |
|
|
|
| Back to top |
|
|
Edelmin
Joined: 24 Mar 2009
Posts: 42
Location: Salamanca
|
| Posted: Sep 23, 2021 07:07 Post subject: Re: A Tri-State Galena and Calcite |
|
|
John,
Your specimen is clearly form the Tri-State-District so there is no reason to doubt about the mine.
Best regards,
Felix
_________________
Felix G. Garcia
Edelmin |
|
| Back to top |
|
|
rgangue
Joined: 21 Sep 2020
Posts: 10
Location: Missouri
|
| Posted: Sep 23, 2021 10:27 Post subject: Re: A Tri-State Galena and Calcite |
|
|
Agreed, there is no doubt this is a Tri-State piece. Notice the rhombs of dolomite have a typical curvature often called saddle-shaped. Those Sphalerite crystals are much larger than anything from Viburnum Trend.
If I get time I will post a typical dolomite from Viburnum Trend.
|
|
