[Roger Warin]

Hello,
I have a question: is there a solid solution of ajoite?

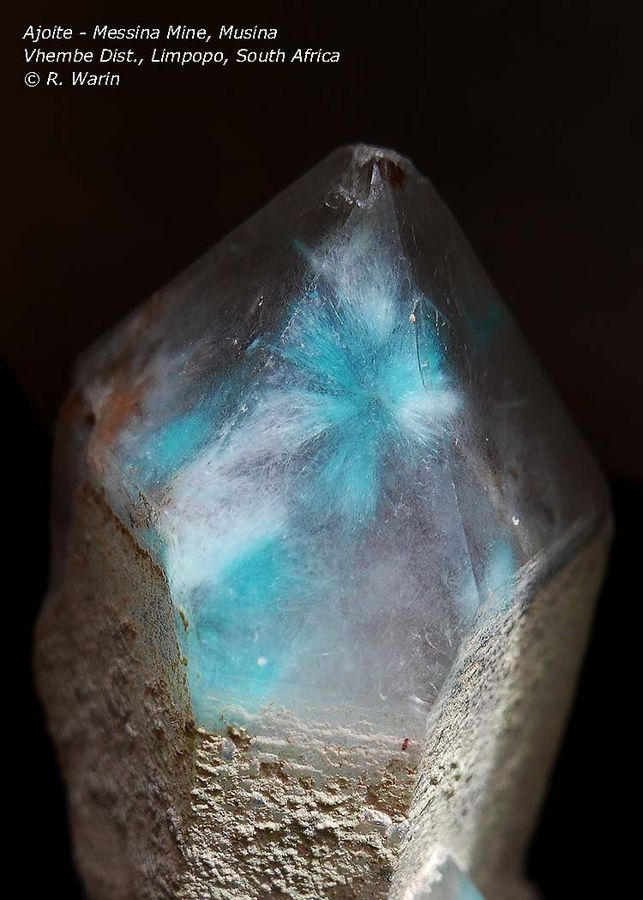

FOV : Quartz crystal width = 55 mm.
In my photo, we see the ajoite fibers discolouring, as if there was a loss of copper.

K3Cu2+20Al3Si29O76(OH)16 · 8H2O
Triclinic 1 or -1 ? No wonder with such a formula.
Thank you.

[Peter Megaw]

Roger, Ajoite is famous for "deteriorating" into chrysocolla, so my first guess would be that that's what you're seeing rather than a compositional shift within an ajoite-XXX series. (yes, I realize changing to chrysocolla is a compositional shift). As I remember, historically there were questions about ajoite even being a valid species because it was so hard to get a decent pattern off of things identified as ajoite. This deterioration was well developed in the recent finds of ajoite from Rancho Jacalito, Sonora, Mexico...only a small percentage of what got analyzed was still ajoite.

[Roger Warin]

Thank you very much Peter,
The chemical formula makes me uncomfortable (I'm just a chemist).
Another fact surprises me in my photo, it is the alternation of blue and white shades.
I therefore readily agree with your answer, especially since the origin seems to me to be hydrothermal in nature.
The structure (AMS-data: Pluth J J, Smith J V - 2002) is obviously complex but seems ordered.
However, along the "a" axis, this unit cell surprises me a lot.
I'm asking myself a neophyte question, isn't it a semi-crystalline structure, as we find in some polymers?
The crystalline germs could be spherulites.
A thin section would highlight the Extinction Crosses of Malta, in XPol).
Excuse my curiosity.

[Roger Warin]

Hello,

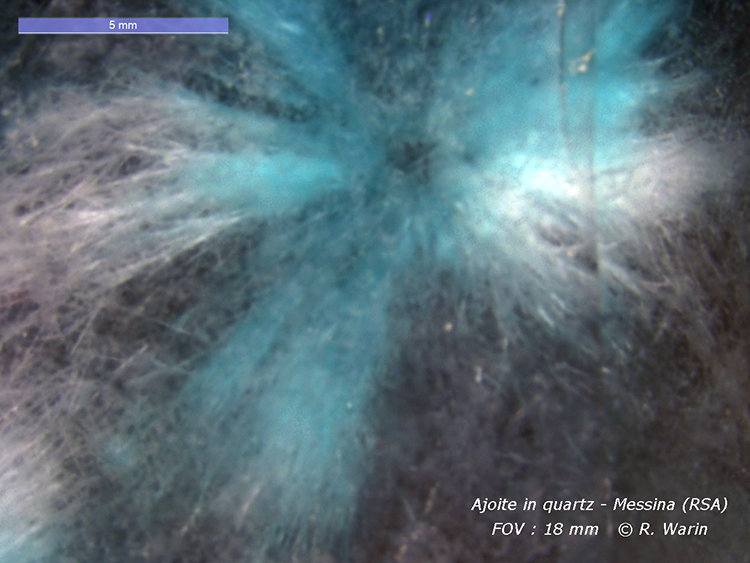

This photo is taken with a binocular (8X).
Difficult focusing, stacking of 33 shots.
We cannot say that they are rectilinear needle-like crystals.
The deposit of ajoite takes place during a first stop of the crystallization of quartz (or during a slowing down).
Then the quartz resumes its growth.
The aggregate of ajoite is found incorporated into a kind of silica gel before it crystallizes, it seems to me. We would thus have this formation of space shaeves.
What do you think ?
