Fiebre Verde

Joined: 11 Sep 2013
Posts: 944
Location: Paris Area



|
Posted: Jan 27, 2016 12:22 Post subject: Re: Collection of Fiebre Verde - Cunas (#182) |
|
|

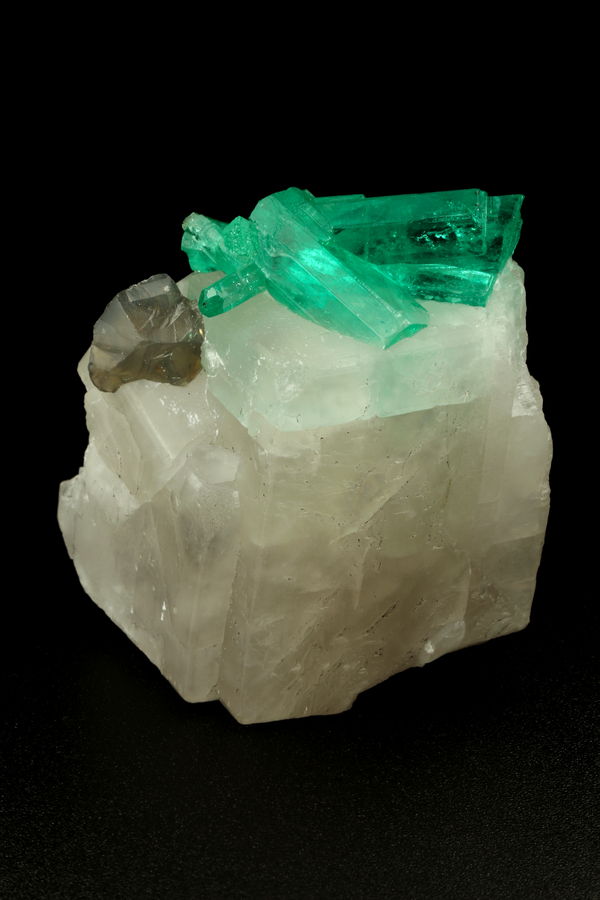

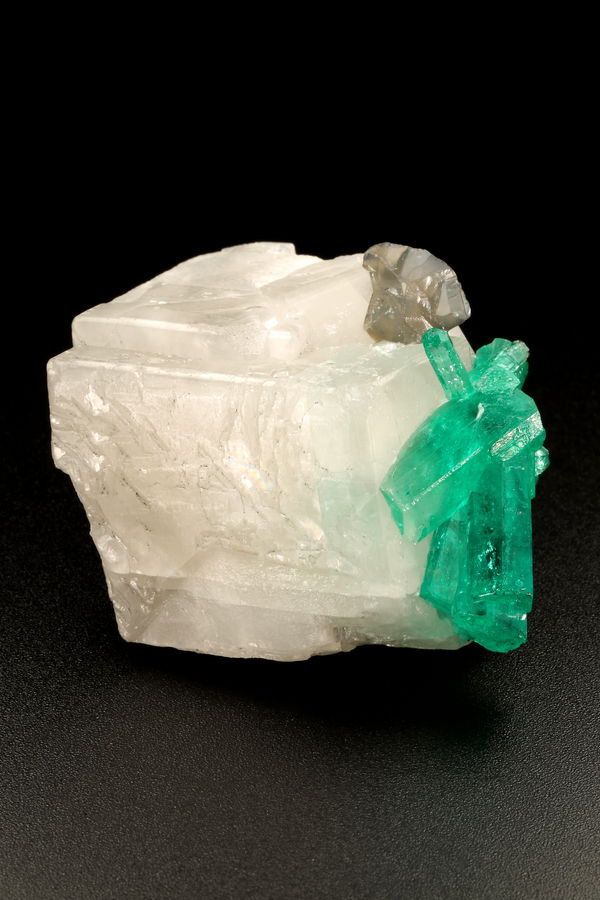

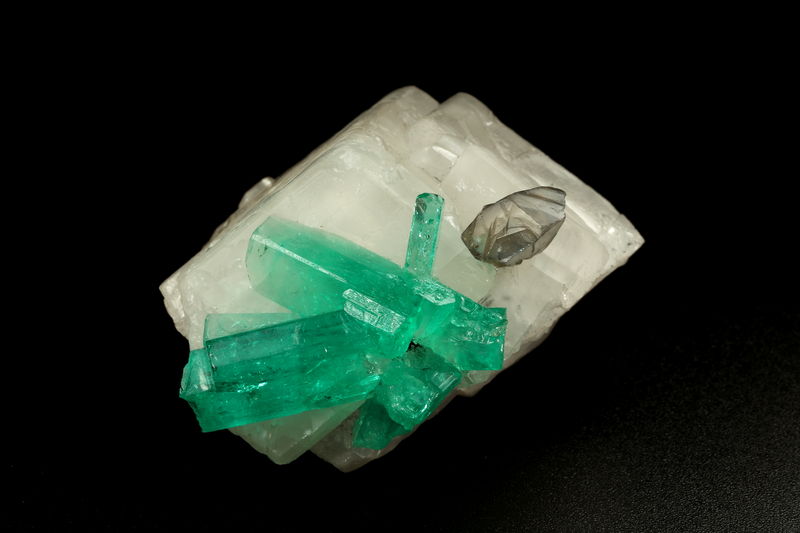

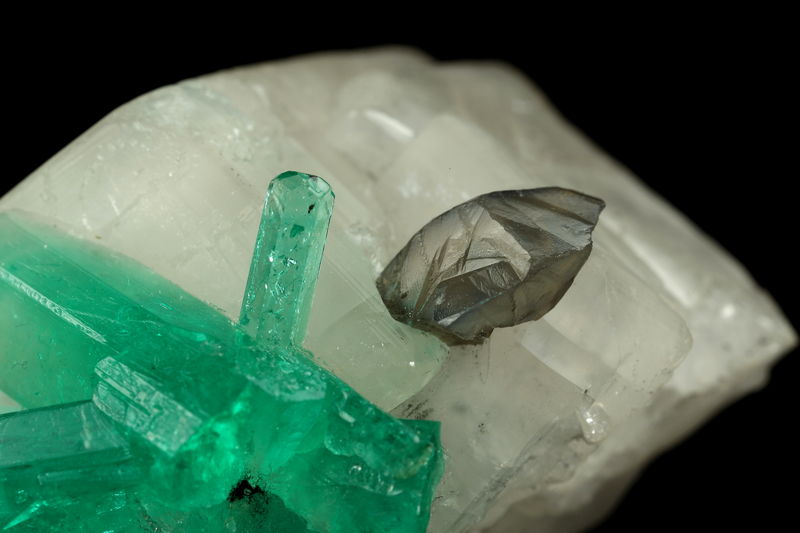

Dolomite crystal and emerald cluster over a white calcite rhomb.
Mineral: | Beryl (variety emerald), Calcite, Dolomite |
Locality: | La Pita mining district, Cunas Mine, Municipio Maripí, Western Emerald Belt, Boyacá Department, Colombia |  |
|
Dimensions: | rhomb size=30x30x30mm, longest xl=18mm |
Description: |
|
Viewed: |
69286 Time(s) |

|
Mineral: | Beryl (variety emerald), Calcite, Dolomite |
Locality: | La Pita mining district, Cunas Mine, Municipio Maripí, Western Emerald Belt, Boyacá Department, Colombia |  |
|
Dimensions: | rhomb size=30x30x30mm, longest xl=18mm |
Description: |
|
Viewed: |
69207 Time(s) |

|
Mineral: | Beryl (variety emerald), Calcite, Dolomite |
Locality: | La Pita mining district, Cunas Mine, Municipio Maripí, Western Emerald Belt, Boyacá Department, Colombia |  |
|
Dimensions: | rhomb size=30x30x30mm, longest xl=18mm |
Description: |
|
Viewed: |
69340 Time(s) |

|
Mineral: | Beryl (variety emerald), Calcite, Dolomite |
Locality: | La Pita mining district, Cunas Mine, Municipio Maripí, Western Emerald Belt, Boyacá Department, Colombia |  |
|
Dimensions: | rhomb size=30x30x30mm, longest xl=18mm |
Description: |
|
Viewed: |
69278 Time(s) |

|
|
|
Back to top |
|
 |
Fiebre Verde

Joined: 11 Sep 2013
Posts: 944
Location: Paris Area



|
Posted: Jan 28, 2016 15:09 Post subject: Re: Collection of Fiebre Verde - Cunas (#30) |
|
|

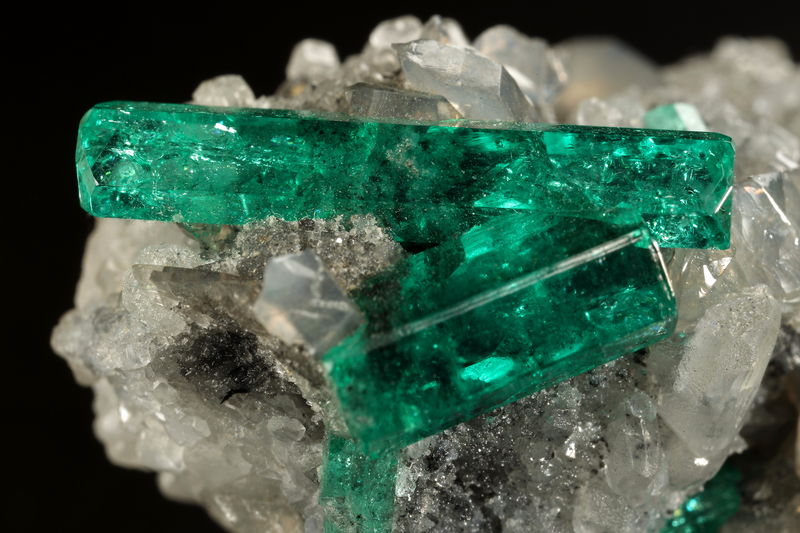

Main crystal is double terminated.
Host rock is black shale.
Mineral: | Beryl (variety emerald), Calcite, Dolomite, Pyrite |
Locality: | La Pita mining district, Cunas Mine, Municipio Maripí, Western Emerald Belt, Boyacá Department, Colombia |  |
|
Dimensions: | 28x33x28mm, main xls=18mm & 9mm |
Description: |
|
Viewed: |
69106 Time(s) |

|
Mineral: | Beryl (variety emerald), Calcite, Dolomite, Pyrite |
Locality: | La Pita mining district, Cunas Mine, Municipio Maripí, Western Emerald Belt, Boyacá Department, Colombia |  |
|
Dimensions: | 28x33x28mm, main xls=18mm & 9mm |
Description: |
|
Viewed: |
69093 Time(s) |

|
|
|
Back to top |
|
 |
Fiebre Verde

Joined: 11 Sep 2013
Posts: 944
Location: Paris Area



|
Posted: Jan 29, 2016 17:16 Post subject: Re: Collection of Fiebre Verde - Coscuez (#10) |
|
|

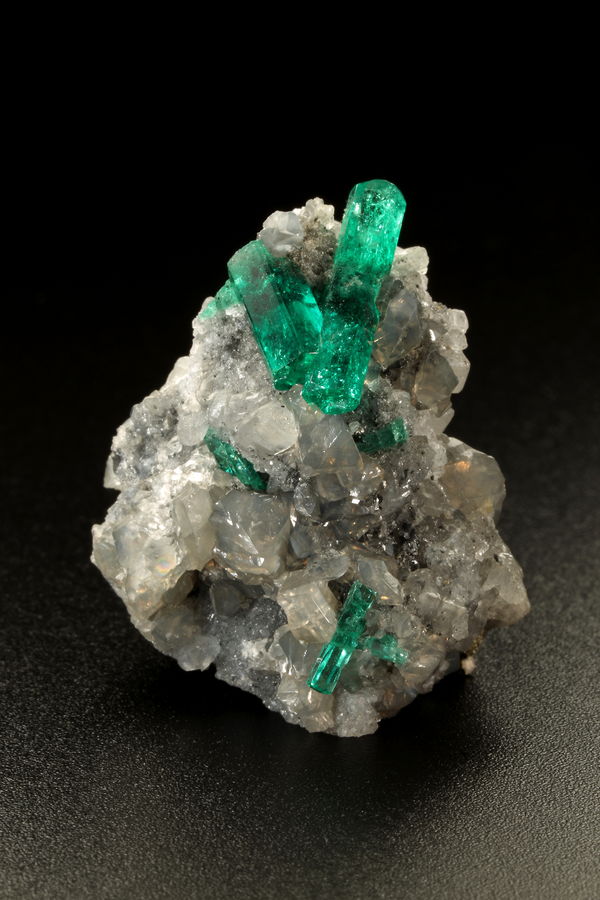

In September 2015, the UK-based mining company Gemfields has entered into binding agreements to acquire controlling interests in two emerald projects in Colombia, one of them being Coscuez. At completion, Gemfields will acquire an indirect 70% interest in a Colombian company which will hold the mining contract for the Coscuez mine.
It's still too early to measure the impact of this major takeover on the specimen production from this historical mine.
Mineral: | Beryl (variety emerald), Calcite, Dolomite |

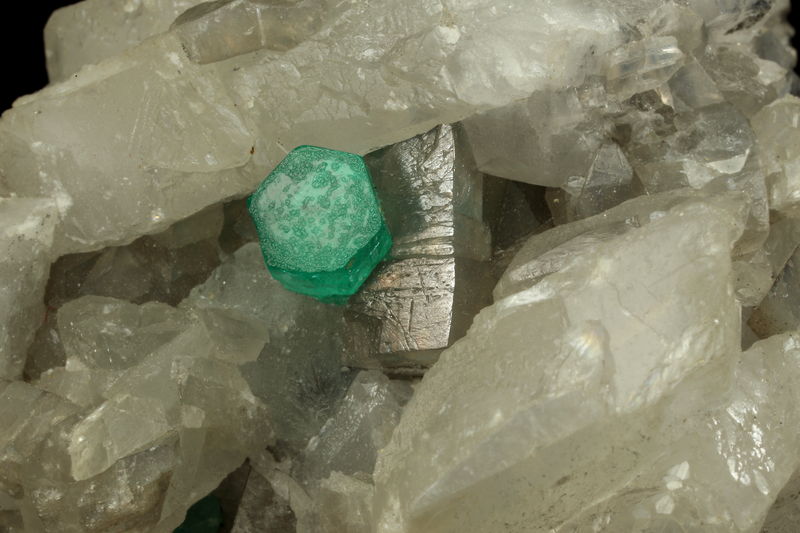

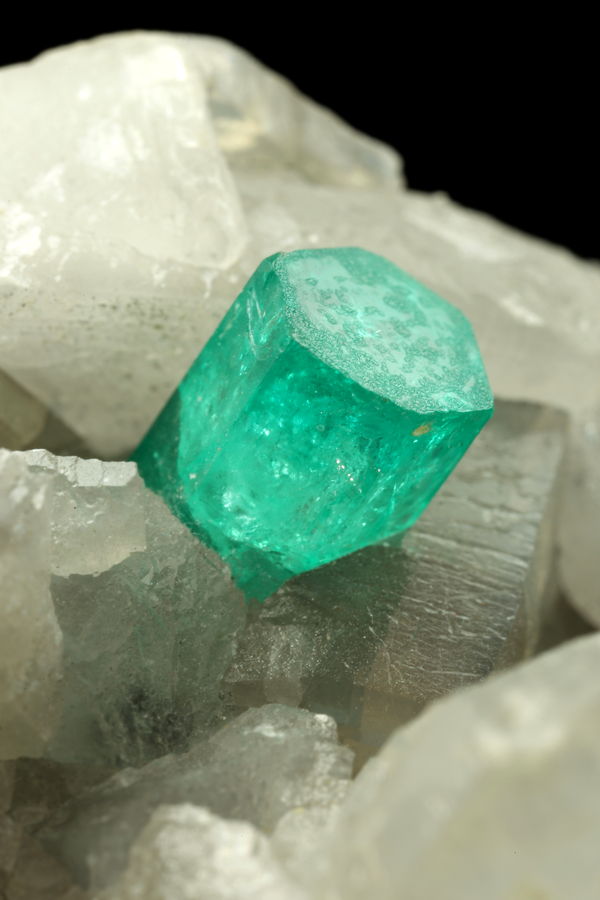

Locality: | Coscuez mining district, Municipio San Pablo de Borbur, Western Emerald Belt, Boyacá Department, Colombia |  |
|
Dimensions: | 40x43x40mm, xl=9mm |
Description: |
|
Viewed: |
69021 Time(s) |

|
Mineral: | Beryl (variety emerald), Calcite, Dolomite |
Locality: | Coscuez mining district, Municipio San Pablo de Borbur, Western Emerald Belt, Boyacá Department, Colombia |  |
|
Dimensions: | 40x43x40mm, xl=9mm |
Description: |
|
Viewed: |
68971 Time(s) |

|
Mineral: | Beryl (variety emerald), Calcite, Dolomite |
Locality: | Coscuez mining district, Municipio San Pablo de Borbur, Western Emerald Belt, Boyacá Department, Colombia |  |
|
Dimensions: | 40x43x40mm, xl=9mm |
Description: |
|
Viewed: |
69058 Time(s) |

|
Mineral: | Beryl (variety emerald), Calcite, Dolomite |
Locality: | Coscuez mining district, Municipio San Pablo de Borbur, Western Emerald Belt, Boyacá Department, Colombia |  |
|
Dimensions: | 40x43x40mm, xl=9mm |
Description: |
|
Viewed: |
69014 Time(s) |

|
Mineral: | Beryl (variety emerald), Calcite, Dolomite |
Locality: | Coscuez mining district, Municipio San Pablo de Borbur, Western Emerald Belt, Boyacá Department, Colombia |  |
|
Dimensions: | 40x43x40mm, xl=9mm |
Description: |
|
Viewed: |
69003 Time(s) |

|
|
|
Back to top |
|
 |
Fiebre Verde

Joined: 11 Sep 2013
Posts: 944
Location: Paris Area



|
Posted: Jan 30, 2016 13:11 Post subject: Re: Collection of Fiebre Verde - Hexagonal tabular pink apatite & emerald (#242) |
|
|

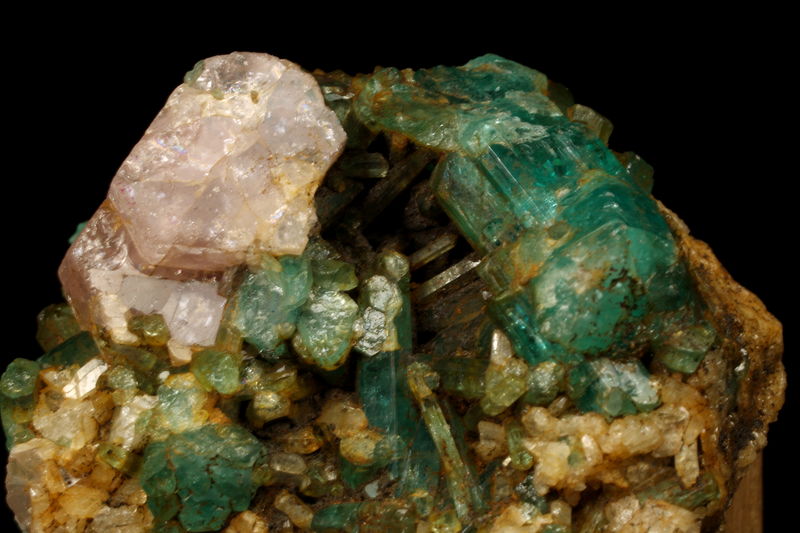

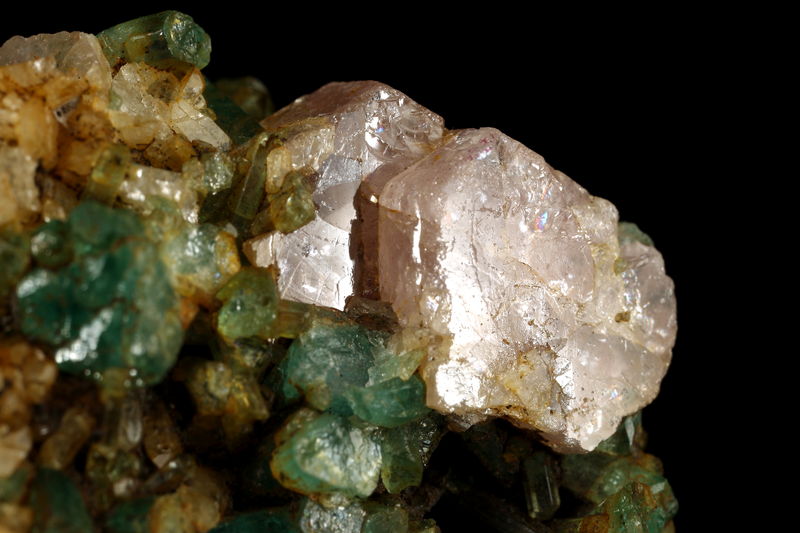

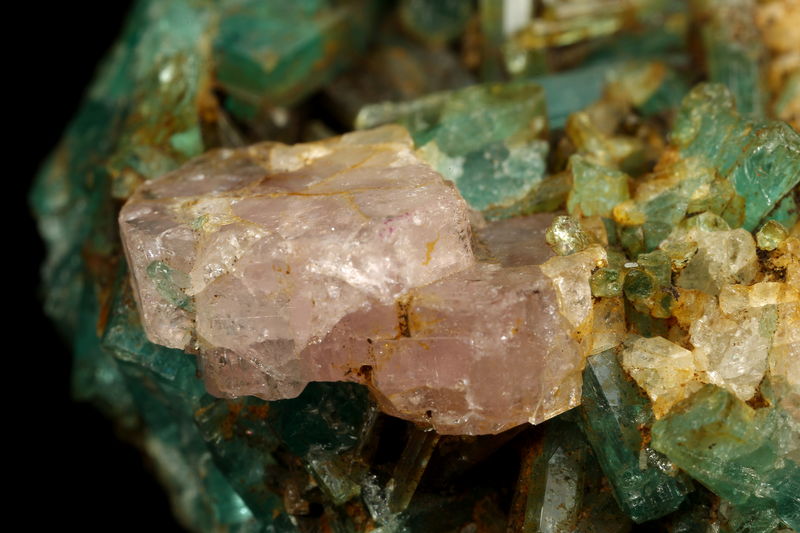

Not the most aesthetic specimen of my collection but probably the most exotic one.
I found this specimen in a European show, 7 years ago. The label mentions Peñas Blancas for the locality name but nothing is less sure.
Assuming it's not a fake (which is a reasonable assumption considering the poor quality of the apatite crystals and the way they are contacted by the emeralds from almost every side), here is the dilemma:
1) The only Colombian locality producing/having produced pink tabular apatite is La Marina mine which is located right in the heart of the Western Emerald Belt.
2) The Mindat mineral list for La Marina is limited to albite, euclase and apatite. Never heard of any emerald occurrence in La Marina, even from the most enthusiastic dealers in Bogota (I like to challenge them but that's another story...)
Of course, the other option is that it's not Colombian.
It is reported that pink apatite, beryl (variety emerald) and albite (variety cleavelandite) can be found in the Laghman pegmatite province in Afghanistan. But Laghman province is vast and these minerals do not necessarily coexist in the same locality. Not even mentioning that Laghman emeralds are known to be embedded in schist matrix.
So Laghman is a very remote possibility...
In the absence of further evidence, I will label this specimen as Colombian.
Matrix is highly oxidized albite.
Mineral: | Beryl (variety emerald), Albite (variety cleavelandite), Calcite, Apatite |
Locality: | Colombia |  |
|
Dimensions: | 37x18x33mm |
Description: |
|
Viewed: |
68960 Time(s) |

|
Mineral: | Beryl (variety emerald), Albite (variety cleavelandite), Calcite, Apatite |
Locality: | Colombia |  |
|
Dimensions: | 37x18x33mm |
Description: |
|
Viewed: |
68979 Time(s) |

|
Mineral: | Beryl (variety emerald), Albite (variety cleavelandite), Calcite, Apatite |
Locality: | Colombia |  |
|
Dimensions: | 37x18x33mm |
Description: |
|
Viewed: |
68920 Time(s) |

|
Mineral: | Beryl (variety emerald), Albite (variety cleavelandite), Calcite, Apatite |
Locality: | Colombia |  |
|
Dimensions: | 37x18x33mm |
Description: |
|
Viewed: |
68981 Time(s) |

|
Mineral: | Beryl (variety emerald), Albite (variety cleavelandite), Calcite, Apatite |
Locality: | Colombia |  |
|
Dimensions: | 37x18x33mm |
Description: |
|
Viewed: |
68936 Time(s) |

|
Mineral: | Beryl (variety emerald), Albite (variety cleavelandite), Calcite, Apatite |
Locality: | Colombia |  |
|
Dimensions: | 37x18x33mm |
Description: |
|
Viewed: |
68908 Time(s) |

|
|
|
Back to top |
|
 |
Josele

Joined: 10 Apr 2012
Posts: 410
Location: Tarifa, Spain



|
|
Back to top |
|
 |
Fiebre Verde

Joined: 11 Sep 2013
Posts: 944
Location: Paris Area



|
Posted: Jan 30, 2016 16:00 Post subject: Re: Collection of Fiebre Verde |
|
|
Thanks for the quick feedback Josele.
This is almost embarrassing...
I don't have a UV lamp at hand so no fluorescence test possible before I get one :-(
Also how did I possibly miss these 2 mindat references?
And finally yes, you're correct, I did overlook Pakistan as another possibility.
A big THANK YOU for pointing out these links - that's very interesting!! This might be the light at the end of the tunnel.
It happens that I know personally the owner of this photo gallery. Gives me some hope to narrow down the ID of this specimen to a district, or even better, a locality.
|
|
Back to top |
|
 |
Fiebre Verde

Joined: 11 Sep 2013
Posts: 944
Location: Paris Area



|
Posted: Feb 01, 2016 08:53 Post subject: Re: Collection of Fiebre Verde - Coscuez (#583) |
|
|

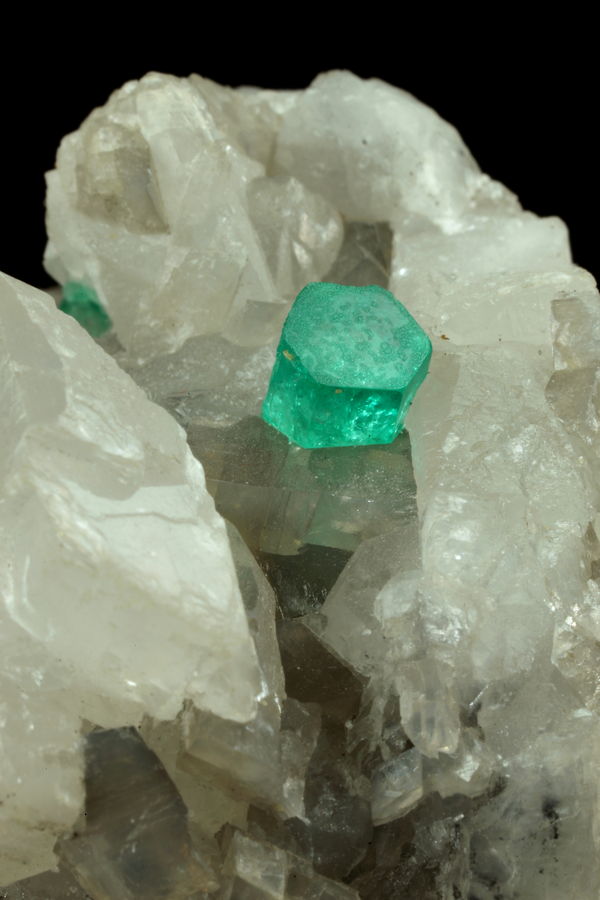

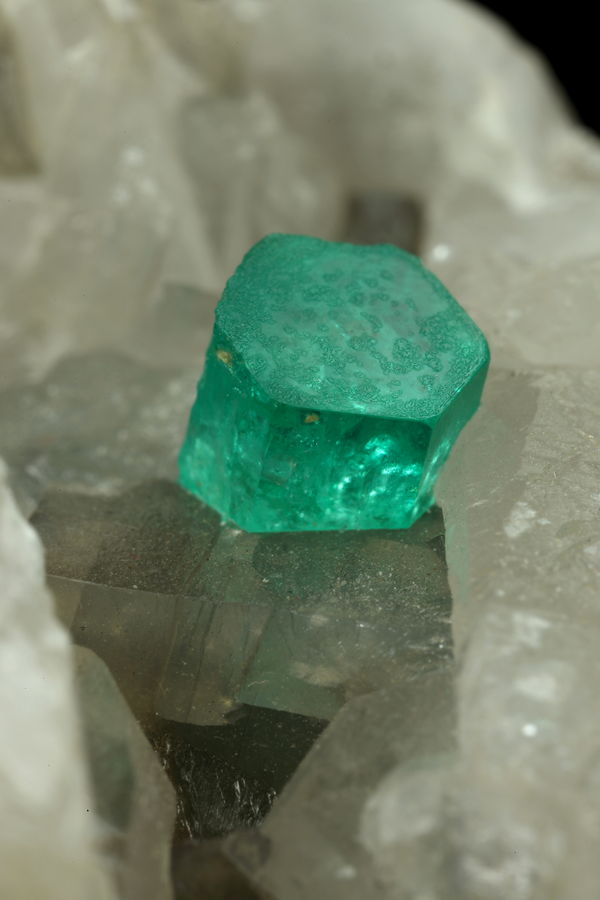

Fine beryl from Coscuez.
Mineral: | Beryl (variety emerald), Calcite |
Locality: | Coscuez mining district, Municipio San Pablo de Borbur, Western Emerald Belt, Boyacá Department, Colombia |  |
|
Dimensions: | 44x41x23mm, xl=15x9x7mm |
Description: |
|
Viewed: |
65707 Time(s) |

|
Mineral: | Beryl (variety emerald), Calcite |
Locality: | Coscuez mining district, Municipio San Pablo de Borbur, Western Emerald Belt, Boyacá Department, Colombia |  |
|
Dimensions: | 44x41x23mm, xl=15x9x7mm |
Description: |
|
Viewed: |
65769 Time(s) |

|
Mineral: | Beryl (variety emerald), Calcite |
Locality: | Coscuez mining district, Municipio San Pablo de Borbur, Western Emerald Belt, Boyacá Department, Colombia |  |
|
Dimensions: | 44x41x23mm, xl=15x9x7mm |
Description: |
|
Viewed: |
65694 Time(s) |

|
Mineral: | Beryl (variety emerald), Calcite |
Locality: | Coscuez mining district, Municipio San Pablo de Borbur, Western Emerald Belt, Boyacá Department, Colombia |  |
|
Dimensions: | 44x41x23mm, xl=15x9x7mm |
Description: |
|
Viewed: |
65717 Time(s) |

|
|
|
Back to top |
|
 |
Tobi
Site Admin

Joined: 07 Apr 2009
Posts: 4248
Location: Germany



|
Posted: Feb 01, 2016 11:21 Post subject: Re: Collection of Fiebre Verde |
|
|
I will never get tired of watching these green gems - please more :)
|
|
Back to top |
|
 |
Fiebre Verde

Joined: 11 Sep 2013
Posts: 944
Location: Paris Area



|
Posted: Feb 01, 2016 11:33 Post subject: Re: Collection of Fiebre Verde |
|
|
Tobi wrote: | I will never get tired of watching these green gems - please more :) |
Thanks Tobi.
It just so happens that there are a few more left :-)
Gérard
|
|
Back to top |
|
 |
Fiebre Verde

Joined: 11 Sep 2013
Posts: 944
Location: Paris Area



|
Posted: Feb 02, 2016 08:57 Post subject: Re: Collection of Fiebre Verde - Gachalá (#274) |
|
|
A large beryl crystal from El Toro, in the Gachalá mining district.
The El Toro mine is located next to the Matecaña tunnel which is known to have produced in the early 00’s the famous emerald gastropods (BTW, for those interested in this topic, some very interesting discussions and photos can be found in this forum).
The material produced from El Toro is frequently coated with a thin film of brown limonite which gives a stunning copper iridescence. In Gachalá, the limonite is formed from the weathering of pyrite.
Obviously the limonite coating has been removed from the beryl but not from the surrounding quartz crystals which I think, improves the overall aesthetic of this specimen (and incidentally makes the photographer’s life much easier).
In the future, I will post more specimens from El Toro where the film of limonite has been completely removed.
Out of all the El Toro crystals I have seen, the vast majority were light green and opaque. This one has a good luster and some degree of transparency in the upper part.
Mineral: | Beryl (variety emerald), Quartz |
Locality: | Gachalá mining district, El Toro Mine, Municipio Gachalá, Eastern Emerald Belt, Cundinamarca Department, Colombia |  |
|
Dimensions: | 37x48x41mm, xl=17x20mm |
Description: |
|
Viewed: |
65531 Time(s) |

|
Mineral: | Beryl (variety emerald), Quartz |
Locality: | Gachalá mining district, El Toro Mine, Municipio Gachalá, Eastern Emerald Belt, Cundinamarca Department, Colombia |  |
|
Dimensions: | 37x48x41mm, xl=17x20mm |
Description: |
|
Viewed: |
65620 Time(s) |

|
Mineral: | Beryl (variety emerald), Quartz |
Locality: | Gachalá mining district, El Toro Mine, Municipio Gachalá, Eastern Emerald Belt, Cundinamarca Department, Colombia |  |
|
Dimensions: | 37x48x41mm, xl=17x20mm |
Description: |
|
Viewed: |
65606 Time(s) |

|
|
|
Back to top |
|
 |
Fiebre Verde

Joined: 11 Sep 2013
Posts: 944
Location: Paris Area



|
Posted: Feb 03, 2016 15:45 Post subject: Re: Collection of Fiebre Verde - Gachalá (#575) |
|
|
Another specimen from an unknown locality of the Gachalá district.
The beryl crystal features 2 planar surfaces, a light green surface and a dark green surface.
The light green one is actually a contact plane.
The darker one is a bit more challenging - the step-like tabular patterns might suggest that the whole surface is actually a system of complex terminations.
I have never seen anything like this at this scale - looking for your suggestions and ideas!
Sorry for the quality of the close-ups - I tried again and again, but could not get anything better :-(
Host rock is black shale.
Mineral: | Beryl (variety emerald), Calcite, Pyrite |
Locality: | Gachalá mining district, Municipio Gachalá, Eastern Emerald Belt, Cundinamarca Department, Colombia |  |
|
Dimensions: | 55x36x35mm, xl=24x20mm |
Description: |
|
Viewed: |
65460 Time(s) |

|
Mineral: | Beryl (variety emerald), Calcite, Pyrite |
Locality: | Gachalá mining district, Municipio Gachalá, Eastern Emerald Belt, Cundinamarca Department, Colombia |  |
|
Dimensions: | 55x36x35mm, xl=24x20mm |
Description: |
|
Viewed: |
65495 Time(s) |

|
Mineral: | Beryl (variety emerald), Calcite, Pyrite |
Locality: | Gachalá mining district, Municipio Gachalá, Eastern Emerald Belt, Cundinamarca Department, Colombia |  |
|
Dimensions: | 55x36x35mm, xl=24x20mm |
Description: |
|
Viewed: |
65480 Time(s) |

|
Mineral: | Beryl (variety emerald), Calcite, Pyrite |
Locality: | Gachalá mining district, Municipio Gachalá, Eastern Emerald Belt, Cundinamarca Department, Colombia |  |
|
Dimensions: | 55x36x35mm, xl=24x20mm |
Description: |
|
Viewed: |
65507 Time(s) |

|
|
|
Back to top |
|
 |
Fiebre Verde

Joined: 11 Sep 2013
Posts: 944
Location: Paris Area



|
Posted: Feb 05, 2016 06:09 Post subject: Re: Collection of Fiebre Verde - La Pita (#259) |
|
|
Aggregate of 5 crystals from the La Pita district - all double terminated.
Host rock is black shale.
Mineral: | Beryl (variety emerald), Calcite |
Locality: | La Pita mining district, Municipio Maripí, Western Emerald Belt, Boyacá Department, Colombia |  |
|
Dimensions: | 27x40x31mm, aggregate=15x13mm |
Description: |
|
Viewed: |
65388 Time(s) |

|
Mineral: | Beryl (variety emerald), Calcite |
Locality: | La Pita mining district, Municipio Maripí, Western Emerald Belt, Boyacá Department, Colombia |  |
|
Dimensions: | 27x40x31mm, aggregate=15x13mm |
Description: |
|
Viewed: |
65394 Time(s) |

|
Mineral: | Beryl (variety emerald), Calcite |
Locality: | La Pita mining district, Municipio Maripí, Western Emerald Belt, Boyacá Department, Colombia |  |
|
Dimensions: | 27x40x31mm, aggregate=15x13mm |
Description: |
|
Viewed: |
65408 Time(s) |

|
|
|
Back to top |
|
 |
Fiebre Verde

Joined: 11 Sep 2013
Posts: 944
Location: Paris Area



|
Posted: Feb 06, 2016 16:10 Post subject: Re: Collection of Fiebre Verde - Peñas Blancas (#546) |
|
|
The iron-stained creamy calcite combined with the clear quartz and the velvety blue-green emeralds makes this specimen unmistakably from Peñas Blancas.
The calcite and the emeralds are dusted with brownish-black goethite.
Host rock is black shale.
Mineral: | Beryl (variety emerald), Calcite, Quartz, Goethite |
Locality: | Peñas Blancas Mine, Municipio San Pablo de Borbur, Western Emerald Belt, Boyacá Department, Colombia |  |
|
Dimensions: | 49x52x70mm, main xl=7x4mm |
Description: |
|
Viewed: |
65329 Time(s) |

|
Mineral: | Beryl (variety emerald), Calcite, Quartz, Goethite |
Locality: | Peñas Blancas Mine, Municipio San Pablo de Borbur, Western Emerald Belt, Boyacá Department, Colombia |  |
|
Dimensions: | 49x52x70mm, main xl=7x4mm |
Description: |
|
Viewed: |
65283 Time(s) |

|
Mineral: | Beryl (variety emerald), Calcite, Quartz, Goethite |
Locality: | Peñas Blancas Mine, Municipio San Pablo de Borbur, Western Emerald Belt, Boyacá Department, Colombia |  |
|
Dimensions: | 49x52x70mm, main xl=7x4mm |
Description: |
|
Viewed: |
65283 Time(s) |

|
Mineral: | Beryl (variety emerald), Calcite, Quartz, Goethite |
Locality: | Peñas Blancas Mine, Municipio San Pablo de Borbur, Western Emerald Belt, Boyacá Department, Colombia |  |
|
Dimensions: | 49x52x70mm, main xl=7x4mm |
Description: |
|
Viewed: |
65279 Time(s) |

|
Mineral: | Beryl (variety emerald), Calcite, Quartz, Goethite |
Locality: | Peñas Blancas Mine, Municipio San Pablo de Borbur, Western Emerald Belt, Boyacá Department, Colombia |  |
|
Dimensions: | 49x52x70mm, main xl=7x4mm |
Description: |
|
Viewed: |
65310 Time(s) |

|
Mineral: | Beryl (variety emerald), Calcite, Quartz, Goethite |
Locality: | Peñas Blancas Mine, Municipio San Pablo de Borbur, Western Emerald Belt, Boyacá Department, Colombia |  |
|
Dimensions: | 49x52x70mm, main xl=7x4mm |
Description: |
|
Viewed: |
65341 Time(s) |

|
Mineral: | Beryl (variety emerald), Calcite, Quartz, Goethite |
Locality: | Peñas Blancas Mine, Municipio San Pablo de Borbur, Western Emerald Belt, Boyacá Department, Colombia |  |
|
Dimensions: | 49x52x70mm, main xl=7x4mm |
Description: |
|
Viewed: |
65285 Time(s) |

|
Mineral: | Beryl (variety emerald), Calcite, Quartz, Goethite |
Locality: | Peñas Blancas Mine, Municipio San Pablo de Borbur, Western Emerald Belt, Boyacá Department, Colombia |  |
|
Dimensions: | 49x52x70mm, main xl=7x4mm |
Description: |
|
Viewed: |
65329 Time(s) |

|
|
|
Back to top |
|
 |
Fiebre Verde

Joined: 11 Sep 2013
Posts: 944
Location: Paris Area



|
Posted: Feb 07, 2016 16:20 Post subject: Re: Collection of Fiebre Verde - Peñas Blancas (#15) |
|
|
Coating of botryoidal white calcite with clear quartz crystals.
Host rock is fine-grained argillite shale.
Peñas Blancas is the northernmost locality of the Western Emerald Belt.
It's located about 10km north-northeast of the Coscuez district.
Mineral: | Beryl (variety emerald), Calcite, Quartz |
Locality: | Peñas Blancas Mine, Municipio San Pablo de Borbur, Western Emerald Belt, Boyacá Department, Colombia |  |
|
Dimensions: | 105x130x50mm, largest xl=18mm |
Description: |
|
Viewed: |
65211 Time(s) |

|
Mineral: | Beryl (variety emerald), Calcite, Quartz |
Locality: | Peñas Blancas Mine, Municipio San Pablo de Borbur, Western Emerald Belt, Boyacá Department, Colombia |  |
|
Dimensions: | 105x130x50mm, largest xl=18mm |
Description: |
|
Viewed: |
65285 Time(s) |

|
|
|
Back to top |
|
 |
Fiebre Verde

Joined: 11 Sep 2013
Posts: 944
Location: Paris Area



|
Posted: Feb 08, 2016 16:09 Post subject: Re: Collection of Fiebre Verde - Chivor (#90) |
|
|
Host rock is fine-grained grey shale.
Mineral: | Beryl (variety emerald), Calcite, Pyrite |
Locality: | Chivor mining district, Municipio Chivor, Eastern Emerald Belt, Boyacá Department, Colombia |  |
|
Dimensions: | 56x63x43mm, xl=30x7mm |
Description: |
|
Viewed: |
65217 Time(s) |

|
Mineral: | Beryl (variety emerald), Calcite, Pyrite |
Locality: | Chivor mining district, Municipio Chivor, Eastern Emerald Belt, Boyacá Department, Colombia |  |
|
Dimensions: | 56x63x43mm, xl=30x7mm |
Description: |
|
Viewed: |
65185 Time(s) |

|
Mineral: | Beryl (variety emerald), Calcite, Pyrite |
Locality: | Chivor mining district, Municipio Chivor, Eastern Emerald Belt, Boyacá Department, Colombia |  |
|
Dimensions: | 56x63x43mm, xl=30x7mm |
Description: |
|
Viewed: |
65198 Time(s) |

|
Mineral: | Beryl (variety emerald), Calcite, Pyrite |
Locality: | Chivor mining district, Municipio Chivor, Eastern Emerald Belt, Boyacá Department, Colombia |  |
|
Dimensions: | 56x63x43mm, xl=30x7mm |
Description: |
|
Viewed: |
65180 Time(s) |

|
Mineral: | Beryl (variety emerald), Calcite, Pyrite |
Locality: | Chivor mining district, Municipio Chivor, Eastern Emerald Belt, Boyacá Department, Colombia |  |
|
Dimensions: | 56x63x43mm, xl=30x7mm |
Description: |
|
Viewed: |
65163 Time(s) |

|
Mineral: | Beryl (variety emerald), Calcite, Pyrite |
Locality: | Chivor mining district, Municipio Chivor, Eastern Emerald Belt, Boyacá Department, Colombia |  |
|
Dimensions: | 56x63x43mm, xl=30x7mm |
Description: |
|
Viewed: |
65160 Time(s) |

|
Mineral: | Beryl (variety emerald), Calcite, Pyrite |
Locality: | Chivor mining district, Municipio Chivor, Eastern Emerald Belt, Boyacá Department, Colombia |  |
|
Dimensions: | 56x63x43mm, xl=30x7mm |
Description: |
|
Viewed: |
65120 Time(s) |

|
|
|
Back to top |
|
 |
|
