Epitaxial rutile
  Goto page Previous  1, 2
  Index -> Minerals and Mineralogy
Like
19


View previous topic :: View next topic
Author Message

Josele




Joined: 10 Apr 2012
Posts: 410
Location: Tarifa, Spain


Access to the FMF Gallery title=

View user's profile

Send private message

PostPosted: Nov 25, 2021 10:27    Post subject: Epitaxial or twinned rutile?

I have not photomicrography equipment but recently I bough a mobile phone with microscope camera (30x). Depth of field is very short, focal length is fixed and there is no possibility of stacking photos. Even so, some shots are useful to observe details.

I took some photos of the same rutile in last photo and also of another one on hematite. What I see leads me to think about the possibility that epitaxy and twinning coexist in some sagenite nets. Maybe this is a common thing but I haven't read about it.

Comments are welcome, thanks for your interest.



 Mineral: Rutile
 Locality:
Alchuri, Shigar District, Gilgit-Baltistan (Northern Areas), Pakistan
 Dimensions: FoV: 2.0 mm
 Description:
Contacts between needles are not perfectly encased elbows as we see in macro twins

Central diagonal needles are somewhat divergent, maybe one is epitactic and the other one twinned?
 Viewed:  18171 Time(s)




 Mineral: Rutile
 Locality:
Alchuri, Shigar District, Gilgit-Baltistan (Northern Areas), Pakistan
 Dimensions: FoV: 2.66 mm
 Description:
Unconnected needles form about 60º angles while some small elbows above left at the photo are ≈65º
 Viewed:  18183 Time(s)




 Mineral: Rutile
 Locality:
Alchuri, Shigar District, Gilgit-Baltistan (Northern Areas), Pakistan
 Dimensions: FoV: 2.66 mm
 Description:
Vertical and oblique rutile are connected forming ≈65º angles
 Viewed:  18193 Time(s)




 Mineral: Rutile
 Locality:
Tormiq Valley, Baltistan District, Gilgit-Baltistan (Northern Areas), Pakistan
 Dimensions: FoV: 2.66 mm
 Description:
Connected needles at the lower half of photo are at ≈65º while overlapped ones in the upper half form ≈60º anglesTwinning, epitaxy or both?
 Viewed:  18176 Time(s)




 Mineral: Rutile on hematite with muscovite
 Locality:
Alchuri, Shigar District, Gilgit-Baltistan (Northern Areas), Pakistan
 Dimensions: 6 x 4.5 x 1.5 cm
 Description:
Hematite with epitaxial rutile running perfectly parallel to its three crystallographic basal axes
 Viewed:  18183 Time(s)




 Mineral: Rutile
 Locality:
Tormiq Valley, Baltistan District, Gilgit-Baltistan (Northern Areas), Pakistan
 Dimensions: FoV: 2.5 cm
 Description:
Macroscopically, rutile runs parallel to crystallographic axes forming ≈60º angles…
 Viewed:  18177 Time(s)




 Mineral: Rutile
 Locality:
Tormiq Valley, Baltistan District, Gilgit-Baltistan (Northern Areas), Pakistan
 Dimensions: FoV: 2.66 mm
 Description:
…but microscopically most angles are ≈65º and elbows look like perfect twin joints
 Viewed:  18181 Time(s)




 Mineral: Rutile
 Locality:
Tormiq Valley, Baltistan District, Gilgit-Baltistan (Northern Areas), Pakistan
 Dimensions: FoV: 2.66 mm
 Description:
Full of elbows at ≈65º
 Viewed:  18188 Time(s)




 Mineral: Rutile
 Locality:
Tormiq Valley, Baltistan District, Gilgit-Baltistan (Northern Areas), Pakistan
 Dimensions: FoV: 2.66 mm
 Description:
Even staggered neat elbows at ≈65º

Epitaxy, twinning or a combination?
 Viewed:  18138 Time(s)



Back to top
Reply to topic Reply with quote
Like
3


Eck Noch




Joined: 09 Jan 2021
Posts: 28
Location: California

View user's profile

Send private message

PostPosted: Nov 25, 2021 11:57    Post subject: Re: Epitaxial rutile

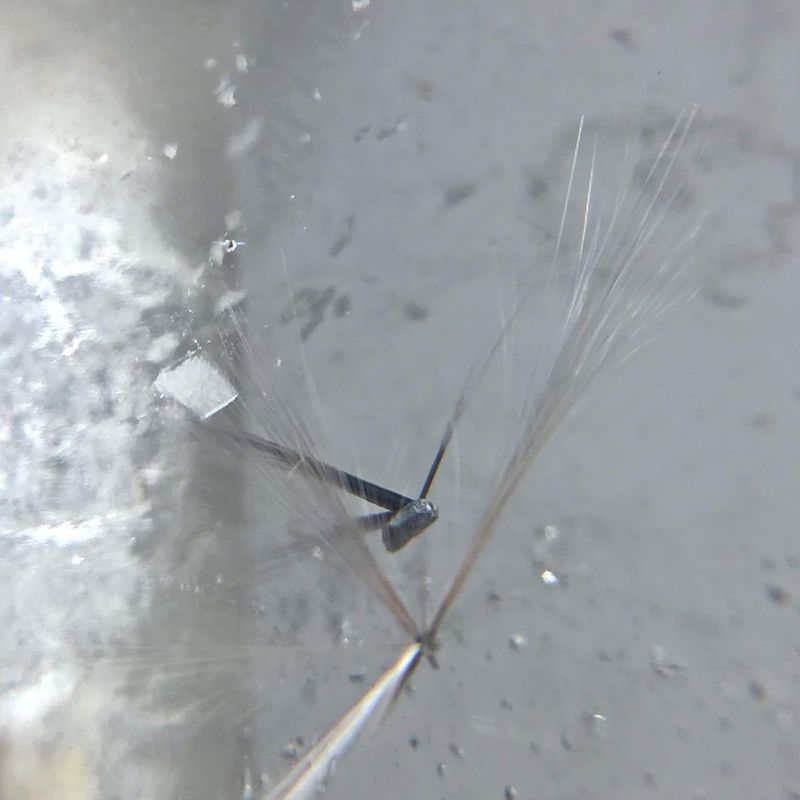

Here is a fun one taken of my self collected material from the Eclipse Mine, photomicrograh by Nathan Renfro. Proposed epitaxy of rutile on Anatase or Brookite.


 Mineral: Rutile
 Locality:
El Dorado County, California, USA
 Dimensions: 3mm
 Description:
 Viewed:  18123 Time(s)



Back to top
Reply to topic Reply with quote
Like
3


Eck Noch




Joined: 09 Jan 2021
Posts: 28
Location: California

View user's profile

Send private message

PostPosted: Nov 25, 2021 12:18    Post subject: Re: Epitaxial rutile

Here is a sample of photos I took myself with my iPhone 6, these were all collected from the Eclipse Pocket at our Eclipse Mine. Here you can clearly make out the Anatase cores on some, and on others it is not visible... there are easily 5 different colors of rutile that came from this pocket.


 Mineral: Anatase, Rutile
 Locality:
El Dorado County, California, USA
 Dimensions: 8mm
 Description:
 Viewed:  18137 Time(s)




 Mineral: Anatase, Rutile, Chlorite
 Locality:
El Dorado County, California, USA
 Description:
 Viewed:  18141 Time(s)




 Mineral: Rutile
 Locality:
El Dorado County, California, USA
 Dimensions: 9mm
 Description:
I love the blonde color of this Rutile. Also from the Eclipse Pocket at the Eclipse Mine. Unknown core mineral.
 Viewed:  18111 Time(s)




 Mineral: Anatase, Rutile, Dolomite
 Locality:
El Dorado County, California, USA
 Dimensions: 7mm
 Description:
Two colors of rutile side by side.
 Viewed:  18125 Time(s)



Back to top
Reply to topic Reply with quote
Like
1


Eck Noch




Joined: 09 Jan 2021
Posts: 28
Location: California

View user's profile

Send private message

PostPosted: Nov 25, 2021 12:33    Post subject: Re: Epitaxial rutile

Another photo micrograph by Nathan Renfro of material from the Eclipse Pocket.


 Mineral: Rutile on Quartz
 Locality:
El Dorado County, California, USA
 Description:
Photo Credit: Nathan Renfro
 Viewed:  18127 Time(s)



Back to top
Reply to topic Reply with quote
Like
3


Bob Morgan




Joined: 18 Jan 2018
Posts: 251
Location: Savannah, Georgia


Access to the FMF Gallery title=

View user's profile

Send private message

PostPosted: Feb 27, 2022 18:28    Post subject: Re: Epitaxial rutile

If you want to explore rutile twinning there is an article that is above my pay grade:
Structural rationale for the occurrence of the elbow twins in cassiterite and rutile by Massimo Nespoli and Bernd Soignier in the Journal of Mineralogical and Petrological Sciences, Volume 110, pages 157-165, 2015.
It is theoretical and mathematical but has some interesting illustrations, and helps me appreciate that twinning is more complex than just simple twin planes.
Back to top
Reply to topic Reply with quote
Like
