Pseudoctahedral Calcite

  Index -> Rockhounding trips
Like
13


View previous topic :: View next topic
Author Message

dontgogreen




Joined: 02 Aug 2015
Posts: 77


Access to the FMF Gallery title=

View user's profile

Send private message

PostPosted: Nov 06, 2016 21:01    Post subject: Pseudoctahedral Calcite

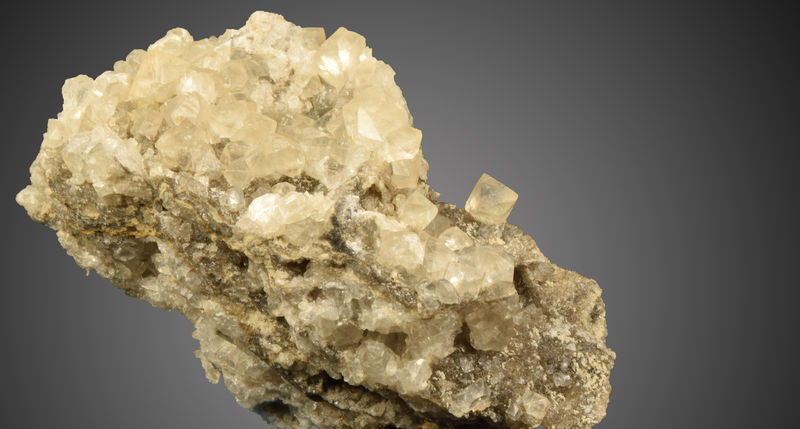

There is a large roadcut in West Virginia along Corridor H where I have found a variety of minerals such as quartz, calcite, strontianite, and sulfur. They are not particularly flashy or large specimens, in fact a prominent collector described them as "homely", but I did notice that many of the calcites have a psuedoctahedral habit. Can anyone comment on the occurrence of this habit in calcite?


 Mineral: Calcite
 Locality:
Corridor H roadway, West Virginia, USA
 Dimensions: Crystal = 4mm
 Description:
 Viewed:  6703 Time(s)



Back to top
Reply to topic Reply with quote
Like
1


dontgogreen




Joined: 02 Aug 2015
Posts: 77


Access to the FMF Gallery title=

View user's profile

Send private message

PostPosted: Nov 06, 2016 21:02    Post subject: Re: Pseudoctahedral Calcite

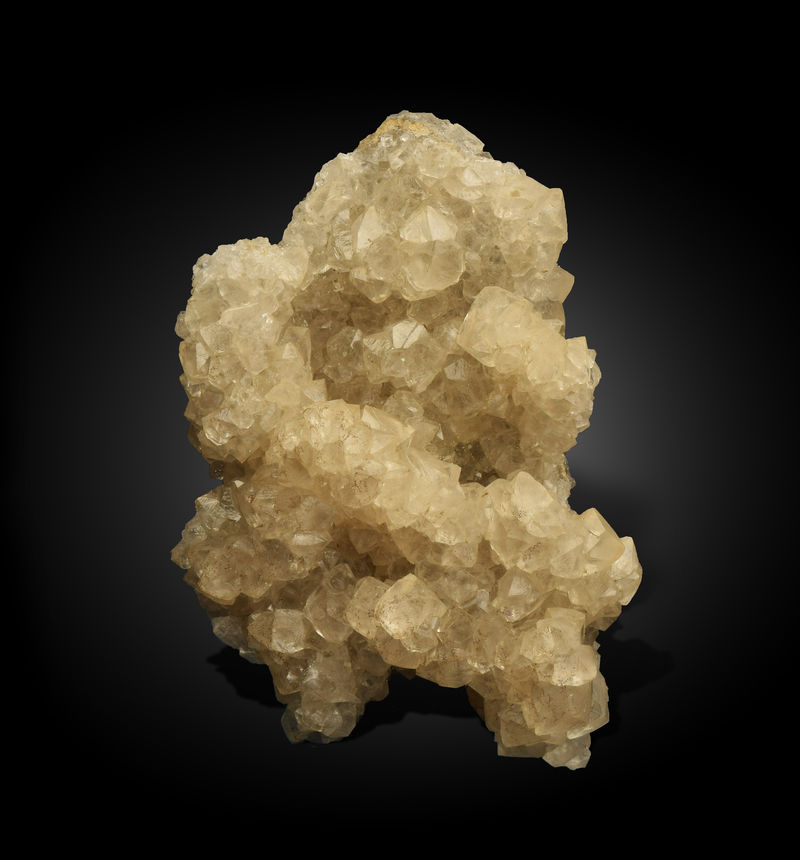

A second specimen


 Mineral: Calcite
 Locality:
Corridor H roadway, West Virginia, USA
 Dimensions: Crystal = 4mm
 Description:
 Viewed:  6670 Time(s)



Back to top
Reply to topic Reply with quote
Like
1


dontgogreen




Joined: 02 Aug 2015
Posts: 77


Access to the FMF Gallery title=

View user's profile

Send private message

PostPosted: Nov 06, 2016 21:03    Post subject: Re: Pseudoctahedral Calcite

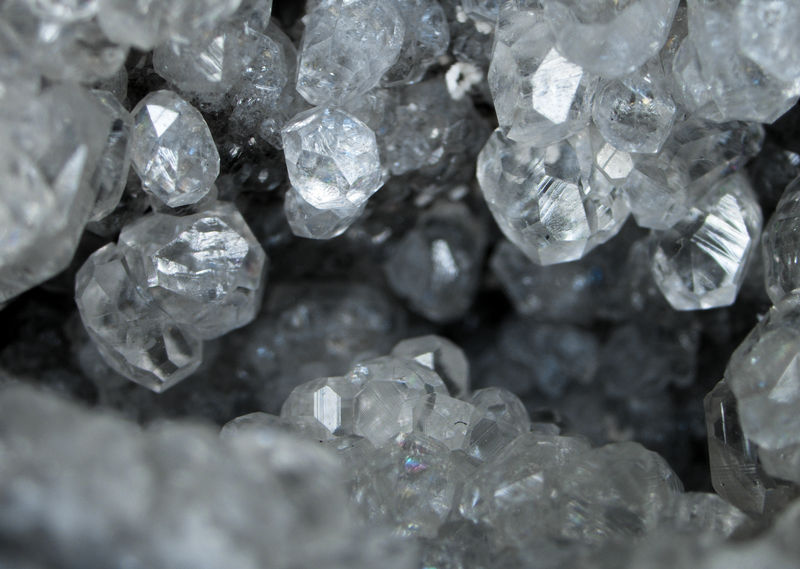

A third


 Mineral: Calcite
 Locality:
Corridor H roadway, West Virginia, USA
 Dimensions: Crystal = 4mm
 Description:
 Viewed:  6654 Time(s)



Back to top
Reply to topic Reply with quote
Like
1


dontgogreen




Joined: 02 Aug 2015
Posts: 77


Access to the FMF Gallery title=

View user's profile

Send private message

PostPosted: Nov 06, 2016 21:10    Post subject: Re: Pseudoctahedral Calcite

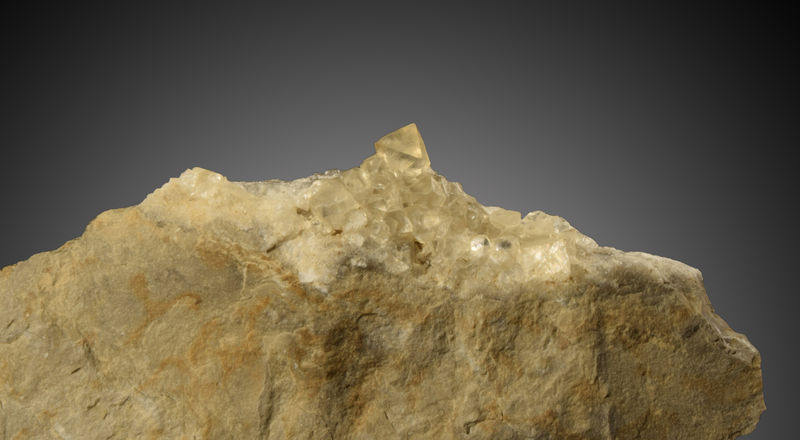

These calcites occur in a vuggy limestone, about one foot in thickness that dips about 45 degrees. The area has undergone quite a bit of deformation in the form of folding. There are several of these calcite-producing layers at this particular outcrop, however the majority of the limestone and shales here are barren of minerals. This particular layer produces the pseudoctahedral calcites in association with powdery strontianite. Some small strontianite sprays were located nearby, but not within this layer where it was usually in massive pods of about 1-3in.


 Mineral: Calcite
 Locality:
Corridor H roadway, West Virginia, USA
 Dimensions: 5.1cm
 Description:
 Viewed:  6674 Time(s)



Back to top
Reply to topic Reply with quote
Like
1


Mark Holtkamp




Joined: 26 Dec 2013
Posts: 12

View user's profile

Send private message

PostPosted: Nov 07, 2016 07:14    Post subject: Re: Pseudoctahedral Calcite

Long time ago there was an article in Lapis magazine about a pseudo-octahedral crystal from the Juchem quarry in Germany. I also found one for sale on minfind, from Aussig in the Czech Republic.

These crystals are probably a combination of a suitable rhombohedron (e.g. {301} and the base pinacoid.

https://www.smorf.nl/draw.php?json=q_a1UtI1NtLPVdLxs_LXCbCqdrQy1HECYmcrAz0LUxOdQCtLA50gEBFsZWhkUKsTYhVd7WFloOMNxD5AhS5WhrU6QBFjFJHYWgA=
(link normalized by FMF)

Cheers, Mark
Back to top
Reply to topic Reply with quote
Like
1


Pete Richards
Site Admin



Joined: 29 Dec 2008
Posts: 632
Location: Northeast Ohio


Access to the FMF Gallery title=

View user's profile

Send private message

PostPosted: Nov 07, 2016 09:01    Post subject: Re: Pseudoctahedral Calcite

Pseudo-octahedral calcite has also been found in other places. There was an article in the last 10 years about an Australian example (sorry not to have a better citation). Pseudo-octahedral calcite crystals were found in a boulder at the Minesota Mine in Michigan's Upper Peninsula, and described in Rocks & Minerals by Pete Rodewald and me. See R. Peter Richards & Peter Rodewald (2008) Pseudo-Octahedral Calcite from The Minesota Mine, Ontonagon County, Michigan, Rocks & Minerals, 83:4, 308-313, DOI: 10.3200/RMIN.83.4.308-313.

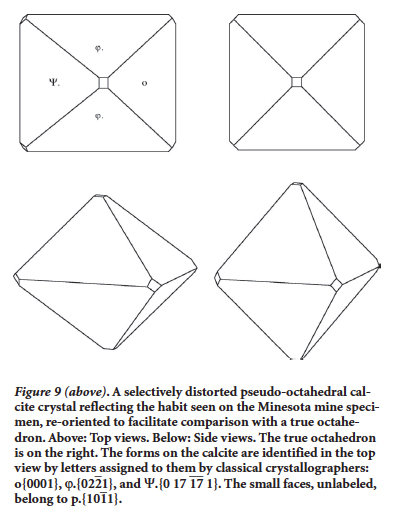

These crystals turned out to be a complex combination of four forms. The summary figure is appended below.



 Mineral: Calcite
 Locality:
Minesota Mine (Minnesota Mine), Rockland, Ontonagon County, Michigan, USA
 Description:
 Viewed:  6508 Time(s)




_________________
Collecting and studying crystals with interesting habits, twinning, and epitaxy
Back to top
Reply to topic Reply with quote
Like
3


prcantos
Site Admin



Joined: 17 Apr 2012
Posts: 243
Location: Granada (Spain)


Access to the FMF Gallery title=

View user's profile

Send private message

PostPosted: Nov 07, 2016 13:06    Post subject: Re: Pseudoctahedral Calcite

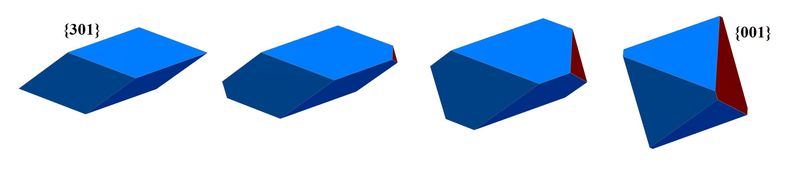

I can provide a graphical approach where the rhombohedron {301} is changed into a pseudoctahedron by a combination with the pinacoid {001}, according to

Mark Holtkamp wrote:
These crystals are probably a combination of a suitable rhombohedron (e.g. {301} and the base pinacoid.



 Description:
 Viewed:  6442 Time(s)




_________________
Pablo Rodríguez Cantos
Λίθον˛ον απεδοκίμασαν˛οι οικοδομουντες
Back to top
Reply to topic Reply with quote
Like
1


dontgogreen




Joined: 02 Aug 2015
Posts: 77


Access to the FMF Gallery title=

View user's profile

Send private message

PostPosted: Nov 07, 2016 13:16    Post subject: Re: Pseudoctahedral Calcite

The crystal drawings shown by Mr. Richards are more similar to a true octahedron than the crystals I have found. Each of these pseudo-octahedral crystals has one face that is terminated by a very low-angle rhombohedron, but since the crystals are almost equant in dimension, they appear octahedral from many angles.
Back to top
Reply to topic Reply with quote
Like


Pete Richards
Site Admin



Joined: 29 Dec 2008
Posts: 632
Location: Northeast Ohio


Access to the FMF Gallery title=

View user's profile

Send private message

PostPosted: Nov 07, 2016 17:50    Post subject: Re: Pseudoctahedral Calcite

As a purely geometric exercise, there are a number of possible ways to make a calcite crystal that looks somewhat like an octahedron. Some of these are unlikely, if the forms used to make them are rare or unknown on calcite. Palache's table of calcite forms, though dating from the 1940's, is the Bible for calcite forms. He does not list {30-31} as a known form, which is problematic for its proposed use in this discussion. He does list {03-31} which is identical in "steepness" but rotated by 60° relative to {30-31}; it could contribute to an "octahedral" crystal of the same appearance, but it is also an uncommon form.
_________________
Collecting and studying crystals with interesting habits, twinning, and epitaxy
Back to top
Reply to topic Reply with quote
Like
1


dontgogreen




Joined: 02 Aug 2015
Posts: 77


Access to the FMF Gallery title=

View user's profile

Send private message

PostPosted: Nov 29, 2018 11:14    Post subject: Re: Pseudoctahedral Calcite

We made another trip back to this area to see what had turned up. It took about half an hour to gather a large quantity of grey vuggy limestone riddled with calcite crystals. Many of the large pieces make excellent bookends and decorator pieces. Under the microscope, the crystals exhibit different, more complex forms than those collected previously. Additionally, breaking open some massive vein material revealed native sulfur and fluorite (mostly broken) associated with orange iron staining, probably from the dissolution of sulfides. The occurrence of native sulfur and purple fluorite makes me wonder if perhaps a pyrite crystal was weathered, allowing the sulfur to crystallize in its native state and allowing the iron to color the fluorite. This is just speculation.

I also learned that a large cave had been opened near this area several years ago during road construction. The team that explored it took lots of photos which can be seen here:

https://www.tristategrotto.net/Bob/Scherr%20Crystal%20Cave/album/index.html
(link normalized by FMF)

After exploration, the cave was sealed, and its whereabouts are unknown to the public. From the available info, I gather that it is quite close by to this locality.



 Description:
near Scherr, West Virginia
 Viewed:  1300 Time(s)




 Mineral: Calcite
 Description:
near Scherr, West Virginia
FOV 1 cm
 Viewed:  1296 Time(s)




 Mineral: Calcite
 Description:
near Scherr, West Virginia
30 cm
 Viewed:  1298 Time(s)




 Mineral: Sulfur, fluorite, calcite
 Description:
near Scherr, West Virginia
~15 cm each
 Viewed:  1303 Time(s)



Back to top
Reply to topic Reply with quote
Like
2


makokerowill




Joined: 29 Nov 2018
Posts: 2
Location: Córdoba

View user's profile

Send private message

PostPosted: Nov 29, 2018 13:07    Post subject: Re: Pseudoctahedral Calcite

Buenas tardes amigos !
Conocéis algún yacimiento español donde hayan aparecido calcitas pseudo-octaédricas ?Saludos.
dontgogreen wrote:
There is a large roadcut in West Virginia along Corridor H where I have found a variety of minerals such as quartz, calcite, strontianite, and sulfur. They are not particularly flashy or large specimens, in fact a prominent collector described them as "homely", but I did notice that many of the calcites have a psuedoctahedral habit. Can anyone comment on the occurrence of this habit in calcite?
Back to top
Reply to topic Reply with quote
Like


Jordi Fabre
Overall coordinator of the Forum



Joined: 07 Aug 2006
Posts: 4267
Location: Barcelona


Access to the FMF Gallery title=

View user's profile

Send private message

PostPosted: Nov 29, 2018 13:10    Post subject: Re: Pseudoctahedral Calcite

makokerowill wrote:
Buenas tardes amigos !
Conocéis algún yacimiento español donde hayan aparecido calcitas pseudo-octaédricas ?Saludos.
dontgogreen wrote:
There is a large roadcut in West Virginia along Corridor H where I have found a variety of minerals such as quartz, calcite, strontianite, and sulfur. They are not particularly flashy or large specimens, in fact a prominent collector described them as "homely", but I did notice that many of the calcites have a psuedoctahedral habit. Can anyone comment on the occurrence of this habit in calcite?

This is an English language Forum. Please ask your question in the Spanish side. Thank you.
Back to top
Reply to topic Reply with quote
Like
