Niels Brouwer
Joined: 26 Sep 2016
Posts: 54
|
 Posted: Dec 06, 2018 06:53 Post subject: Re: Baryte collection of Niels Brouwer |
|
|
A couple of specimens from Romania, the country which got me started with collecting baryte in the first place.
| Mineral: | Baryte, Orpiment |
| Locality: | | Baia Sprie, Maramures, Romania |  |
|
| Dimensions: | 8,5 x 6,6 x 5,3 cm |
| Description: |
| Intergrown, steely blue to slightly purple, tabular baryte with distinct yellow zoning due to inclusions of orpiment. |
|
| Viewed: |
23658 Time(s) |
|

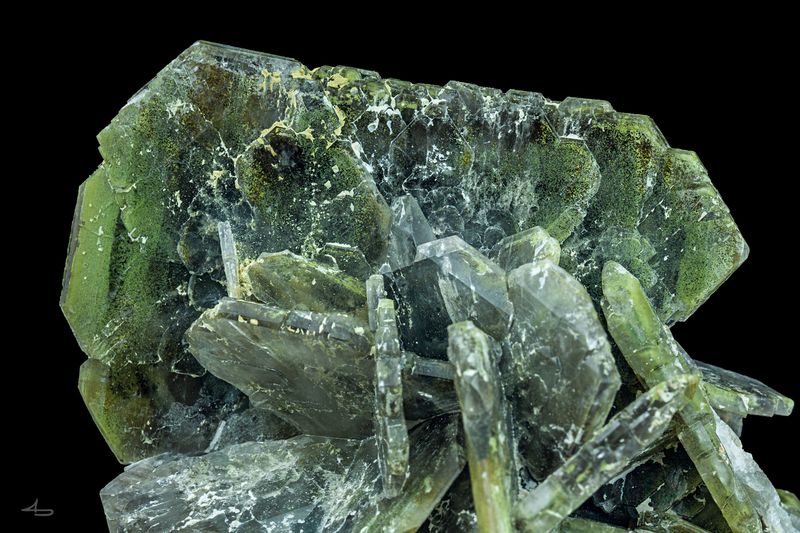

| Mineral: | Baryte, Orpiment |
| Locality: | | Baia Sprie, Maramures, Romania | |
|
| Dimensions: | 8,5 x 6,6 x 5,3 cm |
| Description: |
| Close-up of the largest crystal. |
|
| Viewed: |
23620 Time(s) |
|

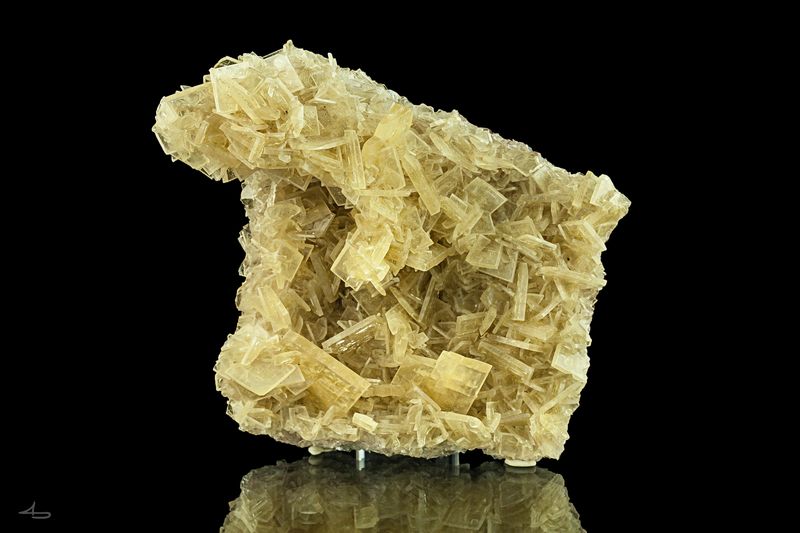

| Mineral: | Baryte |
| Locality: | | Cavnic mining area, Cavnic, Maramures, Romania | |
|
| Dimensions: | 9,7 x 8,0 x 3,3 cm |
| Description: |
| Sharp tabular baryte crystals up to 2 cm with a transparent yellow colour. The thin plate consists completely of baryte, with a higher ridge making it a more three-dimensional specimen. |
|
| Viewed: |
23663 Time(s) |
|
| Locality: | | Baia Sprie, Maramures, Romania | |
|
| Dimensions: | 10,8 x 7,8 x 3,7 cm |
| Description: |
| Rosettes of very thin lustrous orange baryte, grown along the edges of the darker matrix. |
|
| Viewed: |
23653 Time(s) |
|
|
|
| Back to top |
|
 |
Niels Brouwer
Joined: 26 Sep 2016
Posts: 54
|
| Posted: Dec 06, 2018 07:19 Post subject: Re: Baryte collection of Niels Brouwer |
|
|
Next up, a few from the classic mining regions of the UK.
| Mineral: | Baryte |
| Locality: | | Mowbray Mine, Frizington, West Cumberland Iron Field, former Cumberland, Cumbria, England / United Kingdom | |
|
| Dimensions: | 13,4 x 8,1 x 5,5 cm |
| Description: |
| Large chocolate brown intergrown baryte crystals with slightly lighter coloured, complex terminations. |
|
| Viewed: |
23635 Time(s) |
|

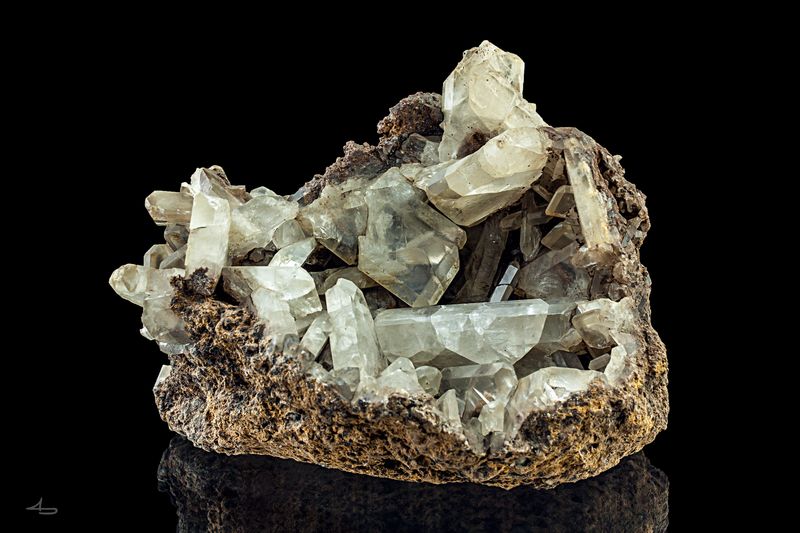

| Mineral: | Baryte |
| Locality: | | Dufton Fell Mine, Dufton, Eden District, former Cumberland, Cumbria, England / United Kingdom | |
|
| Dimensions: | 11,9 x 8,5 x 8,3 cm |
| Description: |
| Large clear tabular baryte crystals to 55 mm lining the inside of a cavity. The mine originally operated as a lead mine, as so many others in the region, but it was one of the first to switch to mining baryte instead. Specimen dates back to before the first world war. |
|
| Viewed: |
23657 Time(s) |
|
| Mineral: | Baryte |
| Locality: | | Dufton Fell Mine, Dufton, Eden District, former Cumberland, Cumbria, England / United Kingdom | |
|
| Dimensions: | 11,9 x 8,5 x 8,3 cm |
| Description: |
| Close-up of the clear baryte crystals. |
|
| Viewed: |
23611 Time(s) |
|

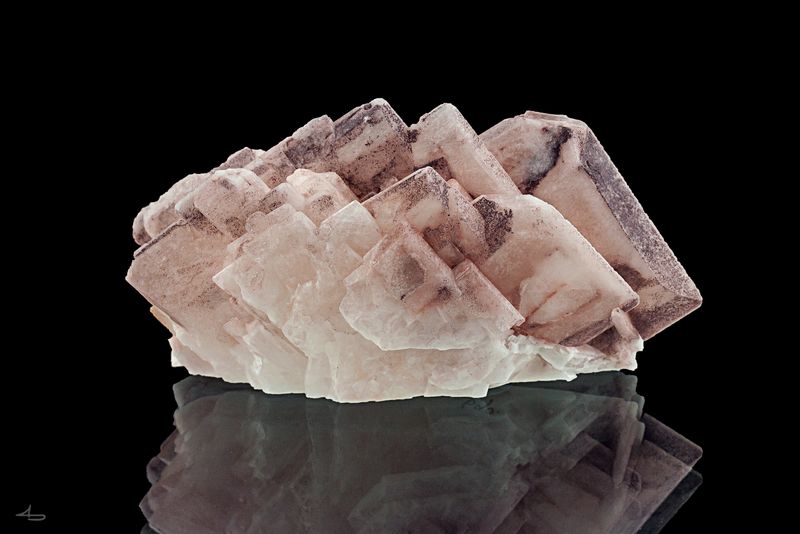

| Mineral: | Baryte, Hematite |
| Locality: | | Gutterby Pit, Cleator Moor, Copeland, West Cumberland Iron Field, former Cumberland, Cumbria, England / United Kingdom | |
|
| Dimensions: | 7 x 3,5 x 2,5 cm |
| Description: |
| Parallel white tabular baryte crystals with contrasting pink colours due to inclusions and surface coating of hematite. |
|
| Viewed: |
23725 Time(s) |
|

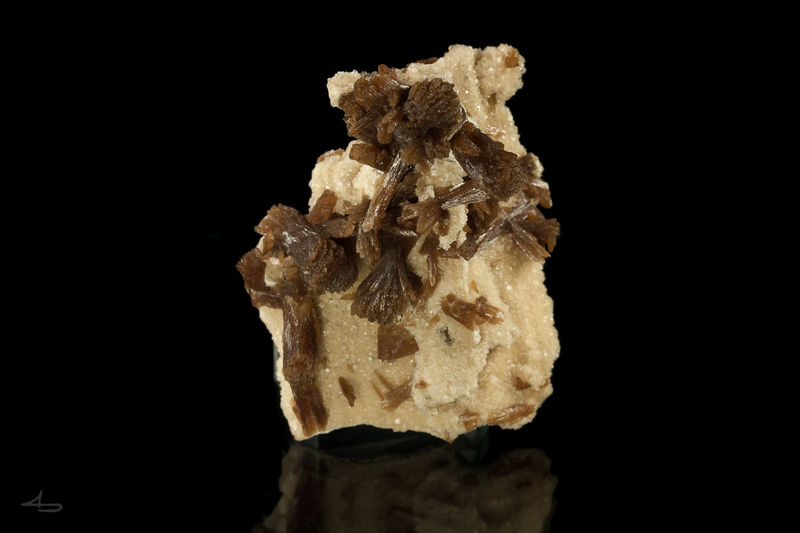

| Mineral: | Baryte, Calcite |
| Locality: | | Admiralty Quarry, Isle of Portland, Portland, Weymouth and Portland District, Dorset, South West Region, England / United Kingdom | |
|
| Dimensions: | 5 x 3,5 x 2 cm |
| Description: |
| In visible light, the chocolate brown baryte contrasts nicely with the white calcite matrix... |
|
| Viewed: |
23636 Time(s) |
|
| Mineral: | Baryte, Calcite |
| Locality: | | Admiralty Quarry, Isle of Portland, Portland, Weymouth and Portland District, Dorset, South West Region, England / United Kingdom | |
|
| Dimensions: | 5 x 3,5 x 2 cm |
| Description: |
| ... whereas under UV light, the baryte sheaves display a beautiful dark yellow fluorescence and phosphorescence. |
|
| Viewed: |
23629 Time(s) |
|

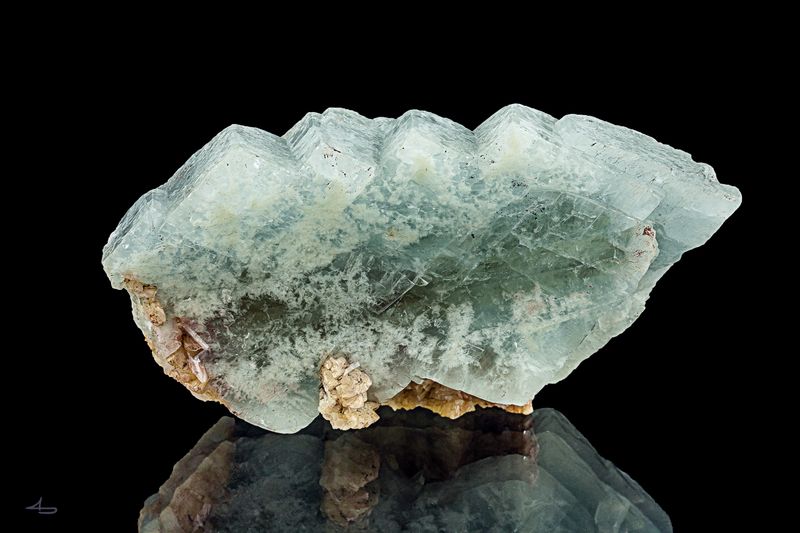

| Mineral: | Baryte, Dolomite |
| Locality: | | Frizington, West Cumberland Iron Field, former Cumberland, Cumbria, England / United Kingdom | |
|
| Dimensions: | 7,9 x 4,1 x 1,7 cm |
| Description: |
| Classic light blue, lustrous, complex cockscomb crystal of baryte with minor beige dolomite where the crystal was attached to the matrix. A band of slightly more yellow zoning runs along the middle of the crystal. |
|
| Viewed: |
23626 Time(s) |
|

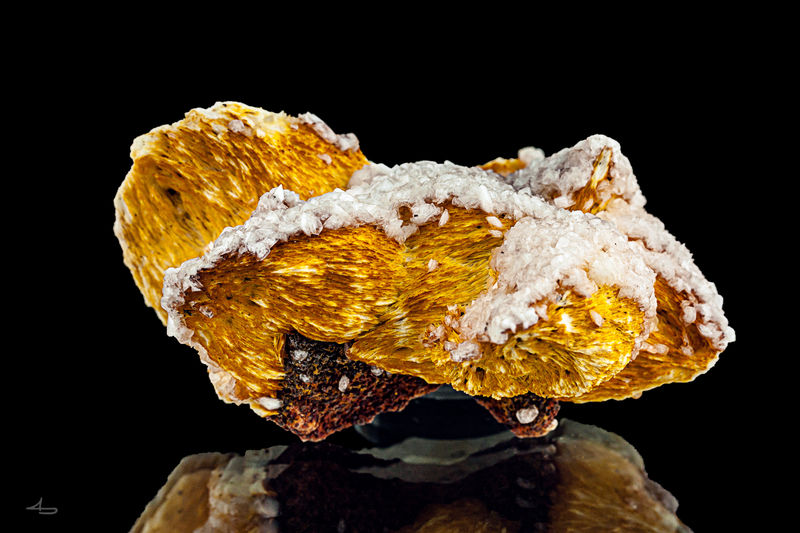

| Mineral: | Baryte, Calcite |
| Locality: | | Machen Quarry, Machen, Caerphilly, Wales / United Kingdom | |
|
| Dimensions: | 8,2 x 5,5 x 4,0 cm |
| Description: |
| Bright white baryte with orange coating, dusted from one side with bright, nicely contrasting white calcite. |
|
| Viewed: |
23642 Time(s) |
|
|
|
| Back to top |
|
|
Niels Brouwer
Joined: 26 Sep 2016
Posts: 54
|
| Posted: Dec 06, 2018 07:38 Post subject: Re: Baryte collection of Niels Brouwer |
|
|
Another couple of German barytes. The vast amount of variation between the different localities in Germany, or even within a single mine, never ceases to amaze me.

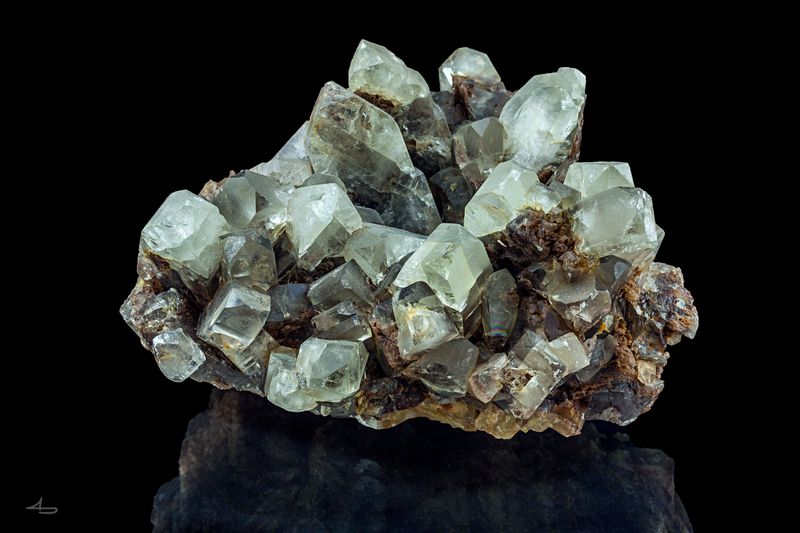

| Mineral: | Baryte, Fluorite |
| Locality: | | Clara Mine, Rankach Valley, Oberwolfach, Wolfach, Black Forest, Baden-Württemberg, Germany | |
|
| Dimensions: | 11,4 x 9,9 x 6,2 cm |
| Description: |
| Cluster of large clear blocky baryte crystals. These crystals formed parallel over an earlier generation of baryte. In the matrix, several clear blue cubic fluorite crystals are enclosed by baryte. |
|
| Viewed: |
23625 Time(s) |
|

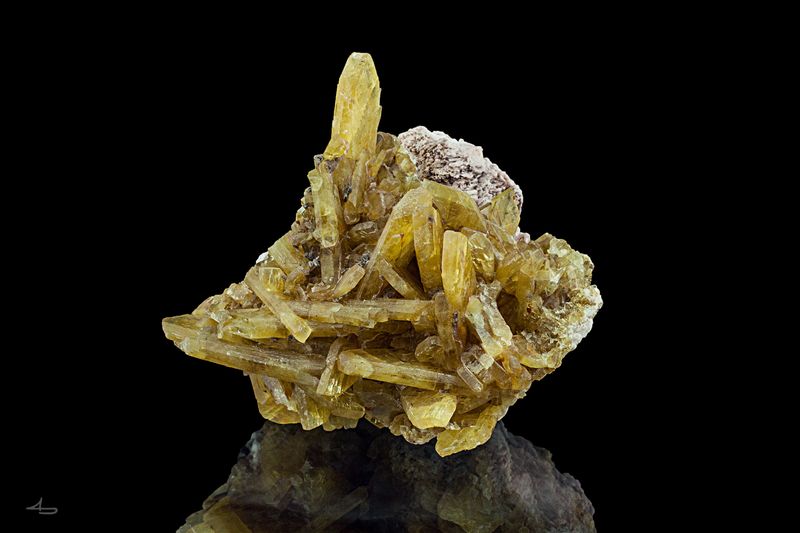

| Mineral: | Baryte |
| Locality: | | Clara Mine, Rankach Valley, Oberwolfach, Wolfach, Black Forest, Baden-Württemberg, Germany | |
|
| Dimensions: | 10,4 x 8,3 x 6,6 cm |
| Description: |
| Cluster of freestanding golden yellow pointed baryte to 5 cm. The colour gives rise to the nickname 'Honigspat' or 'honeyspar', whereas the crystal shape to 'Meißelspat' or 'chisel spar'. On a matrix of an earlier generation of baryte. |
|
| Viewed: |
23638 Time(s) |
|

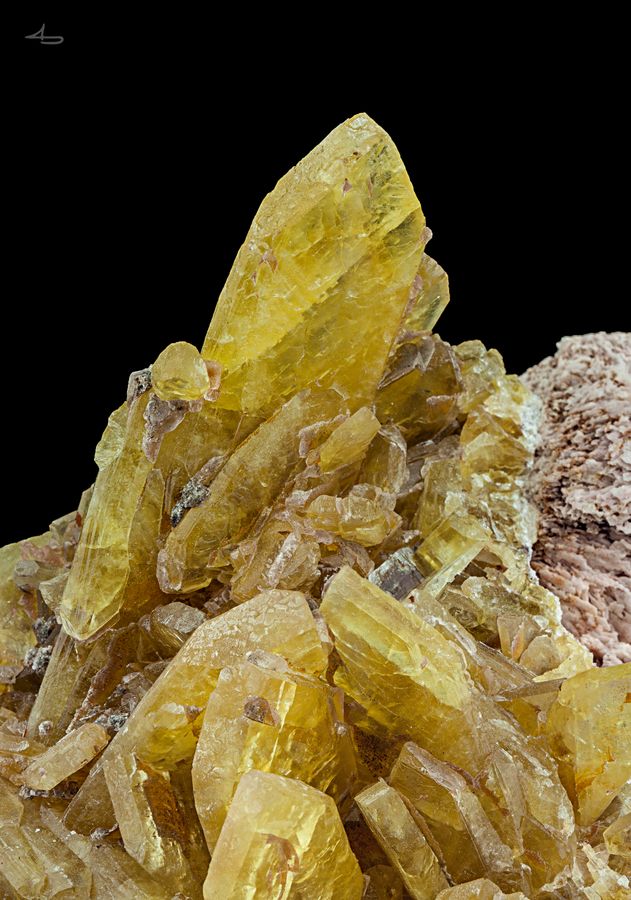

| Mineral: | Baryte |
| Locality: | | Clara Mine, Rankach Valley, Oberwolfach, Wolfach, Black Forest, Baden-Württemberg, Germany | |
|
| Dimensions: | 10,4 x 8,3 x 6,6 cm |
| Description: |
| Close-up of the freestanding crystals. |
|
| Viewed: |
23602 Time(s) |
|
| Mineral: | Baryte |
| Locality: | | Winterberg Quarry, Iberg, Bad Grund, Göttingen District, Harz, Lower Saxony/Niedersachsen, Germany | |
|
| Dimensions: | 6,8 cm x 6,5 cm x 6,4 cm |
| Description: |
| Rounded groups of lustrous elongated tabular baryte crystals. The outer layer of the baryte is clear, whereas the core is opaque. Brown goethite gives a nice contrast. |
|
| Viewed: |
23691 Time(s) |
|

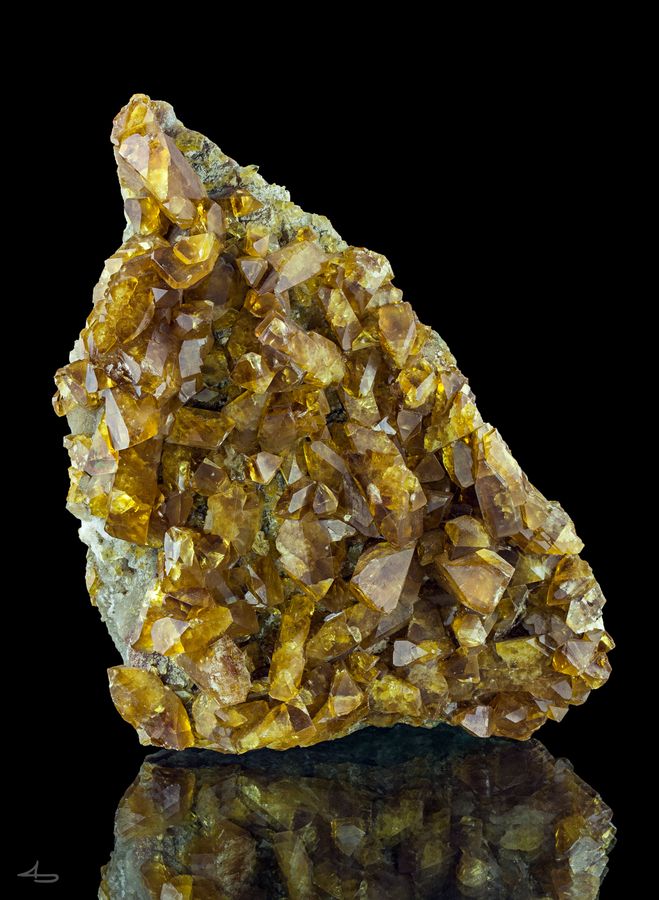

| Mineral: | Baryte, Fluorite |
| Locality: | | Pöhla-Tellerhäuser Mine, Pöhla, Schwarzenberg District, Erzgebirgskreis, Saxony/Sachsen, Germany | |
|
| Dimensions: | 18,3 x 11,3 x 8,3 cm |
| Description: |
| Large example of golden baryte on green fluorite matrix from this classic German locality. When these barytes were found in the mine, a specialist team would extract them. At the time, most of these were sold in West-Germany in order to bring back western currency to the DDR, although a fair number found their way into the personal collections of the miners. |
|
| Viewed: |
23616 Time(s) |
|
|
|
| Back to top |
|
|
Tobi
Site Admin
Joined: 07 Apr 2009
Posts: 4235
Location: Germany
|
| Posted: Dec 06, 2018 13:50 Post subject: Re: Baryte collection of Niels Brouwer |
|
|
Thank you for those impressions, Niels, your specimens are simply great and your photos are of the finest quality! And that 18 cm Pöhla specimen ... incredibly beautiful, a true museum piece!
Please more :-)
|
|
| Back to top |
|
|
Niels Brouwer
Joined: 26 Sep 2016
Posts: 54
|
| Posted: Dec 07, 2018 18:31 Post subject: Re: Baryte collection of Niels Brouwer |
|
|
| Tobi wrote: | Thank you for those impressions, Niels, your specimens are simply great and your photos are of the finest quality! And that 18 cm Pöhla specimen ... incredibly beautiful, a true museum piece!
Please more :-) |
Thanks again Tobi, the one from Pöhla certainly takes pride of place right in the centre.
|
|
| Back to top |
|
|
Niels Brouwer
Joined: 26 Sep 2016
Posts: 54
|
| Posted: Dec 12, 2018 07:31 Post subject: Re: Baryte collection of Niels Brouwer |
|
|
I finally got around to photographing some of the new additions of the past year, so here's a selection of them.
| Mineral: | Baryte |
| Locality: | | Teplice (Teplitz), Teplice District, Ústí Region, Bohemia, Czech Republic | |
|
| Dimensions: | 4,0 x 3,4 x 2,7 cm |
| Description: |
| Several transparent golden yellow baryte crystals with darker phantoms. Accompanied by an old Dr. A. Krantz label, dated between 1850 when the company moved to Bonn, and 1888 when Friedrich Krantz took over the business from his uncle August Krantz. One of the crystals also has a small handwritten label glued to the back. Dimensions given for the largest crystal. |
|
| Viewed: |
23142 Time(s) |
|

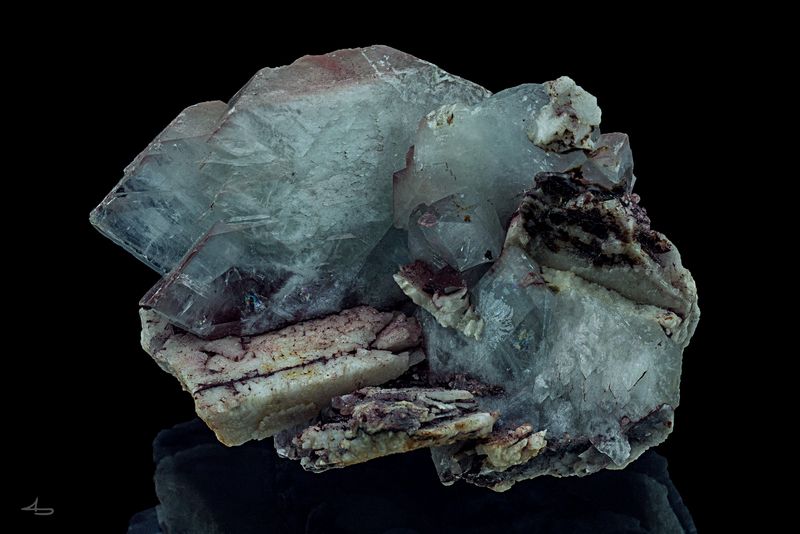

| Mineral: | Baryte, Dolomite, Hematite |
| Locality: | | Frizington, West Cumberland Iron Field, former Cumberland, Cumbria, England / United Kingdom | |
|
| Dimensions: | 7,7 x 5,9 x 4,3 cm |
| Description: |
| Classic light blue baryte crystals, partially red due to inclusions of hematite, on tan dolomite matrix. Accompanied by an old German label from the 'Bayerisches Petrefacten und Mineralien Comptoir' by Friedrich Kohl, dated to the 1890s. |
|
| Viewed: |
23112 Time(s) |
|
| Mineral: | Baryte, Dolomite, Hematite |
| Locality: | | Frizington, West Cumberland Iron Field, former Cumberland, Cumbria, England / United Kingdom | |
|
| Dimensions: | 7,7 x 5,9 x 4,3 cm |
| Description: |
|
| Viewed: |
23119 Time(s) |
|

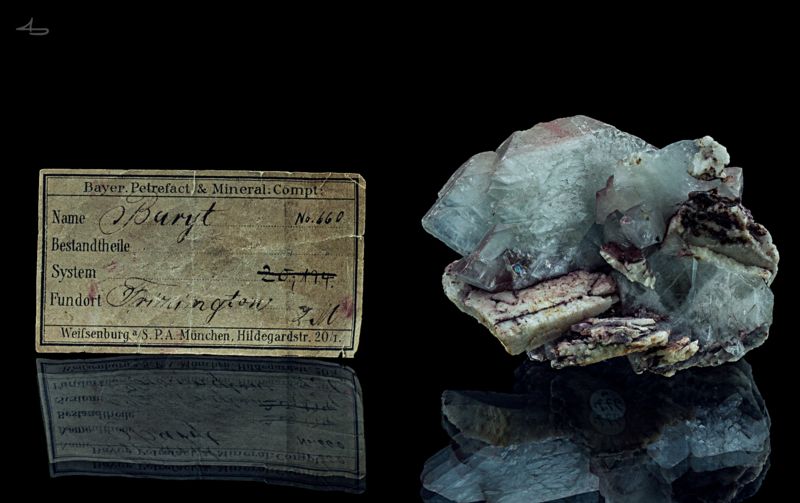

| Mineral: | Baryte, Dolomite, Hematite |
| Locality: | | Frizington, West Cumberland Iron Field, former Cumberland, Cumbria, England / United Kingdom | |
|
| Description: |
The label from Friedrich Kohl's 'Bayerisches Petrefacten und Mineralien Comptoir' (“Bavarian Fossil and Mineral Company”).
More info: https://mineralogicalrecord.com/labels.asp?colid=432 |
|
| Viewed: |
23106 Time(s) |
|

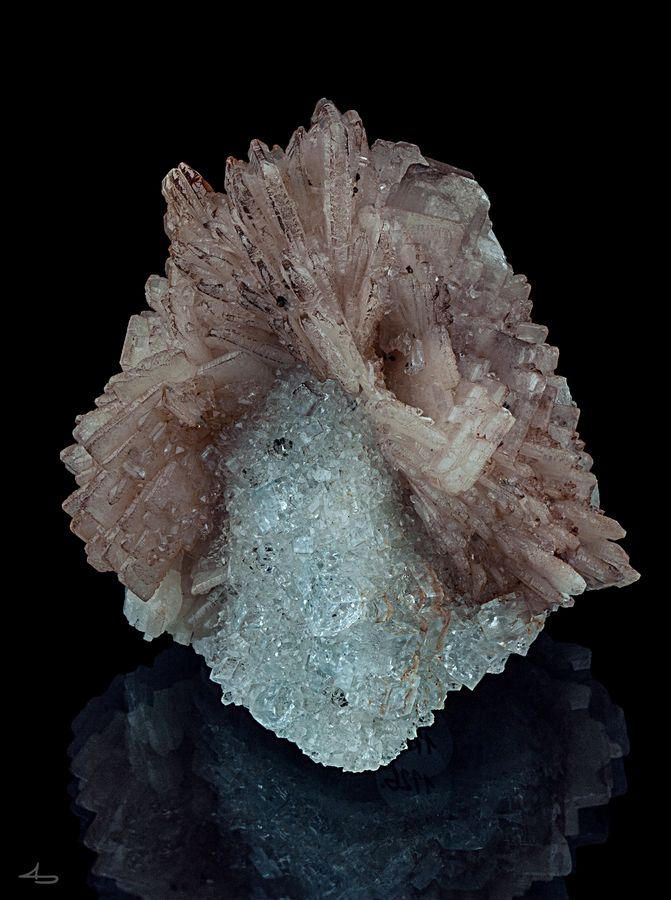

| Mineral: | Baryte, Fluorite |
| Locality: | | Clara Mine, Rankach Valley, Oberwolfach, Wolfach, Black Forest, Baden-Württemberg, Germany | |
|
| Dimensions: | 6,0 x 5,2 x 4,4 cm |
| Description: |
| Cluster of pink tabular baryte surrounding a matrix with crystal clear, slightly blue cubic fluorite. |
|
| Viewed: |
23150 Time(s) |
|
|
|
| Back to top |
|
|
Niels Brouwer
Joined: 26 Sep 2016
Posts: 54
|
| Posted: Sep 28, 2020 18:01 Post subject: Re: Baryte collection of Niels Brouwer |
|
|
It has been a while since my last post here, so I thought it's about time to share a few pieces that have found their way into my collection since then. Those of you who are also active on Instagram might be interested to follow me on there too, simply search for @mineralphotography.
For a while now I have started using a lot of stereo images, as those allow for a fabulous three-dimensional view of the specimens that normal 'flat' images don't provide. The specimens will look a lot more lively, so definitely give it a try to see if this viewing technique works for you!
Here's how these stereograms work to view the specimen in 3D:
Sit straight in front of the screen and look at the image increasingly more cross-eyed. When you do so, the left and right images will gradually start to overlap more and more in the centre. Once you find the sweet spot in which both images exactly overlap, the image will suddenly appear to be in 3D. You can also use the two dots at the top to get the two images to align.

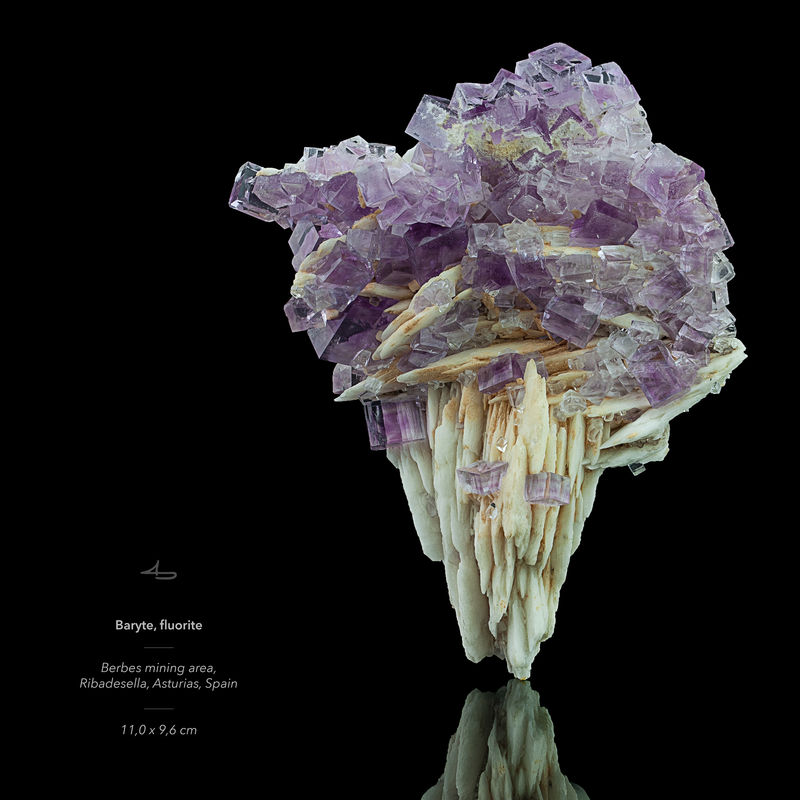

| Mineral: | Baryte, Fluorite |
| Locality: | | Berbes mining area, Berbes, Ribadesella, Comarca Oriente, Principality of Asturias (Asturias), Spain | |
|
| Dimensions: | 11,0 x 9,6 cm |
| Description: |
| Cubic fluorite crystals with wonderful purple zoning, on white blades of baryte. I personally just love the balance between both species! |
|
| Viewed: |
16607 Time(s) |
|
| Mineral: | Baryte, Fluorite |
| Locality: | | Berbes mining area, Berbes, Ribadesella, Comarca Oriente, Principality of Asturias (Asturias), Spain | |
|
| Dimensions: | 11,0 x 9,6 cm |
| Description: |
| The specimen in stereo; see above how these work. |
|
| Viewed: |
16510 Time(s) |
|

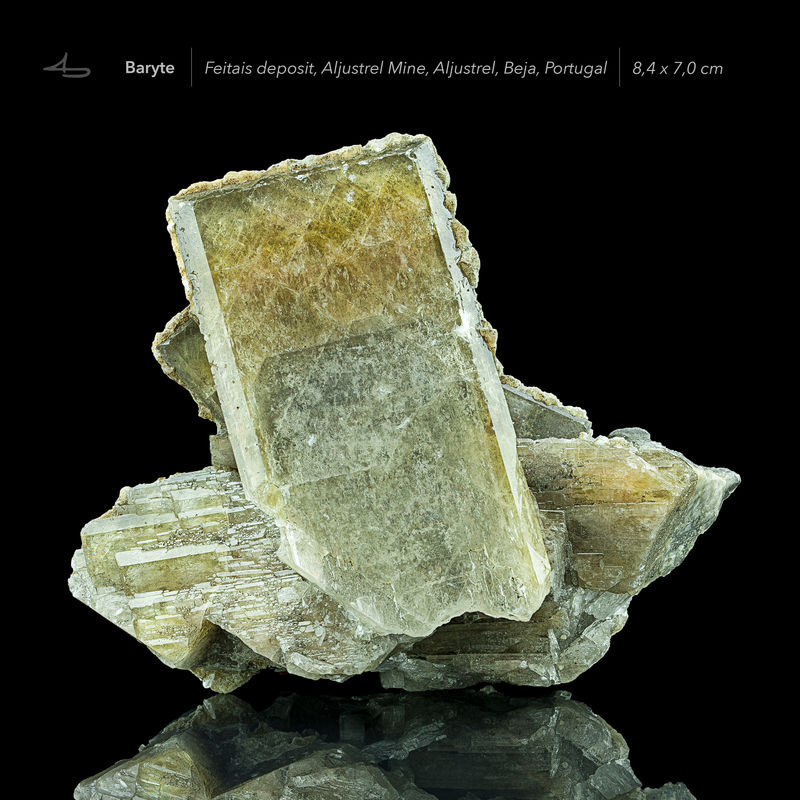

| Mineral: | Baryte, Dolomite |
| Locality: | | Feitais deposit, Aljustrel, Beja District, Baixo Alentejo, Alentejo, Portugal | |
|
| Dimensions: | 8,4 x 7,0 cm |
| Description: |
| These two Portuguese (!) baryte specimens were instant favourites in my collection. It has really nice colour zoning, stunning lustre, a really intriguing dolomite coating on the back, and from a locality I had never even heard of before! |
|
| Viewed: |
16589 Time(s) |
|
| Mineral: | Baryte, Dolomite |
| Locality: | | Feitais deposit, Aljustrel, Beja District, Baixo Alentejo, Alentejo, Portugal | |
|
| Dimensions: | 5,4 x 4,5 cm |
| Description: |
| In this slightly smaller specimen, the tabular baryte crystal is outlined even more prominently by the dolomite coating around the edges. |
|
| Viewed: |
16543 Time(s) |
|
| Mineral: | Baryte, Fluorite |
| Locality: | | Sauberg Mine, Ehrenfriedersdorf, Erzgebirgskreis, Saxony/Sachsen, Germany | |
|
| Dimensions: | 2,5 x 2,1 cm |
| Description: |
| A cute thumbnail specimen with colourful cubic fluorite on either side of a spherical cluster of marcasite-included baryte. |
|
| Viewed: |
16539 Time(s) |
|

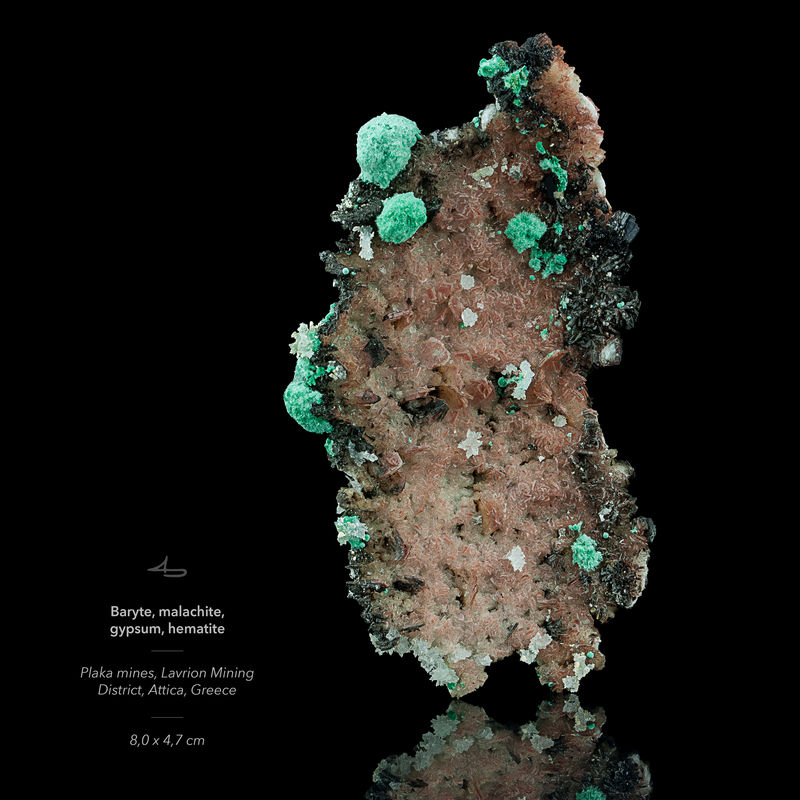

| Mineral: | Baryte, Malachite, Hematite, Gypsum |
| Locality: | | Paleokamariza Mines, Lavrion Mining District, Attikí (Attica) Prefecture, Greece | |
|
| Dimensions: | 8,0 x 4,7 cm |
| Description: |
| Light green tufts of acicular malachite and white gypsum on a thin plate of hematite-included brick-red baryte; just a wonderfully colourful combination! |
|
| Viewed: |
16563 Time(s) |
|

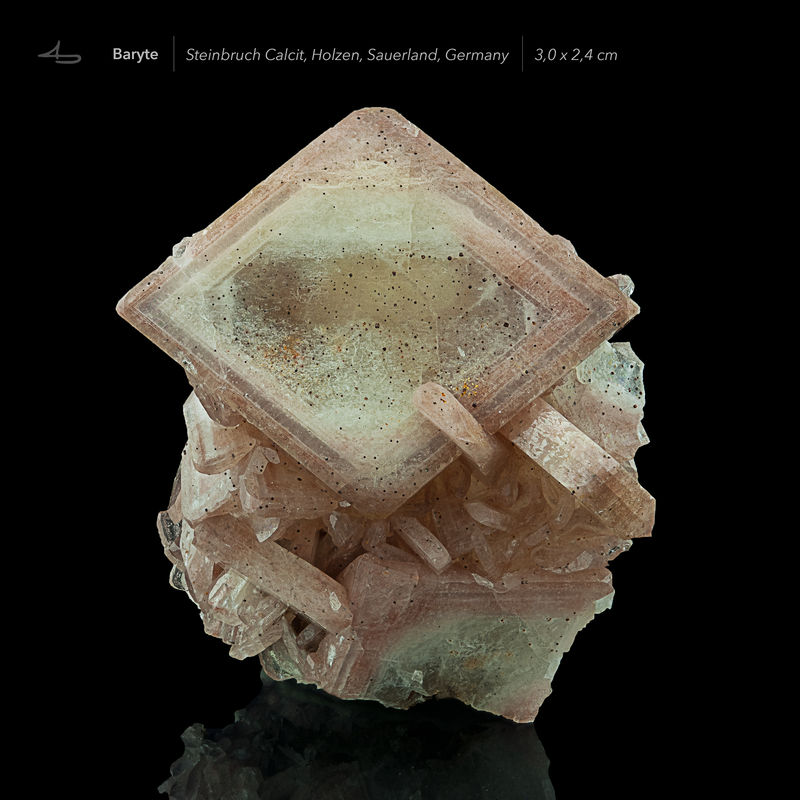

| Mineral: | Baryte, Hematite |
| Locality: | | Calcite Quarry, Holzen, Arnsberg, Sauerland, North Rhine-Westphalia/Nordrhein-Westfalen, Germany | |
|
| Dimensions: | 3,0 x 2,4 |
| Description: |
| Baryte with wonderful pink zoning, very typical for this find. I trimmed this down from a much larger specimen that was almost completely damaged, except for this very sharp crystal. |
|
| Viewed: |
16590 Time(s) |
|
| Mineral: | Baryte, Dolomite, Hematite |
| Locality: | | Parkside Mines, Frizington, West Cumberland Iron Field, former Cumberland, Cumbria, England / United Kingdom | |
|
| Dimensions: | 7,4 x 2,3 cm |
| Description: |
| Old baryte specimen from one of the most classic localities in the UK, most likely mined around a century ago. On one side it has inclusions of hematite, giving it a very nice colour contrast. |
|
| Viewed: |
16608 Time(s) |
|
| Mineral: | Baryte, Dolomite, Hematite |
| Locality: | | Parkside Mines, Frizington, West Cumberland Iron Field, former Cumberland, Cumbria, England / United Kingdom | |
|
| Dimensions: | 7,4 x 2,3 cm |
| Description: |
| Reverse side, showing a line of dolomite running along the middle of the baryte. |
|
| Viewed: |
16550 Time(s) |
|

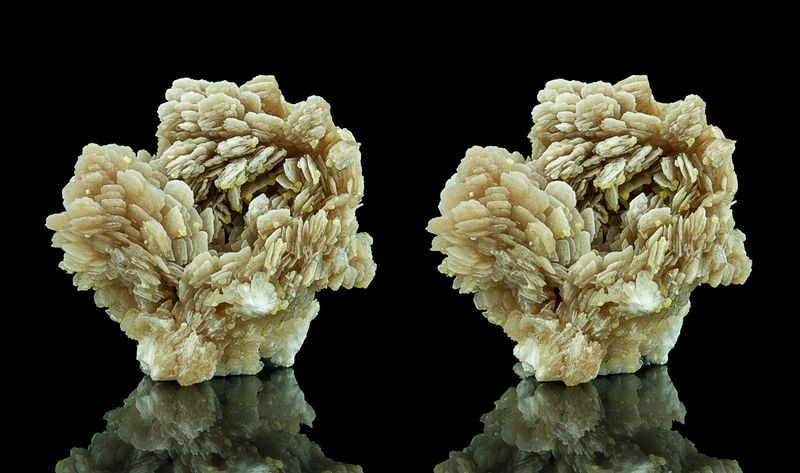

| Mineral: | Baryte, Sulphur |
| Locality: | | Machów Mine, Tarnobrzeg, Subcarpathian Voivodeship, Poland | |
|
| Dimensions: | 6,9 x 5,3 cm |
| Description: |
| Classic combo of sulphur crystals on beige baryte; another specimen that lends itself very well to stereo photography due to its three-dimensional nature. |
|
| Viewed: |
16531 Time(s) |
|
| Mineral: | Baryte, Siderite, Calcite, Hematite |
| Locality: | | Brosso Mine, Cálea, Léssolo, Canavese District, Metropolitan City of Turin Province, Piedmont (Piemonte), Italy | |
|
| Dimensions: | F.o.v. 2 cm |
| Description: |
| Beautifully zoned baryte (red core due to hematite inclusions, outer edge bright white) with transparent scalenohedral calcite on brown siderite matrix. From the 497m Gierinera level, Fortune sector. Field of view around 20 mm, total specimen 8.5 cm across. |
|
| Viewed: |
16590 Time(s) |
|
|
|
| Back to top |
|
|
Tobi
Site Admin
Joined: 07 Apr 2009
Posts: 4235
Location: Germany
|
| Posted: Sep 29, 2020 03:18 Post subject: Re: Baryte collection of Niels Brouwer |
|
|
| Again some beautiful specimens and photos, Niels! I really like the 3D stereo photos, great idea!
|
|
| Back to top |
|
|
Niels Brouwer
Joined: 26 Sep 2016
Posts: 54
|
| Posted: Sep 29, 2020 12:37 Post subject: Re: Baryte collection of Niels Brouwer |
|
|
| Tobi wrote: | | Again some beautiful specimens and photos, Niels! I really like the 3D stereo photos, great idea! |
Thanks again Tobi! I'm happy those stereo images worked for you, it's such a great way to view the specimens!
|
|
| Back to top |
|
|
Tobi
Site Admin
Joined: 07 Apr 2009
Posts: 4235
Location: Germany
|
| Posted: Oct 01, 2020 02:45 Post subject: Re: Baryte collection of Niels Brouwer |
|
|
| Niels Brouwer wrote: | | Tobi wrote: | | Again some beautiful specimens and photos, Niels! I really like the 3D stereo photos, great idea! |
Thanks again Tobi! I'm happy those stereo images worked for you, it's such a great way to view the specimens! |
It definitely is! Like I wrote in the fluorite topic:
| Sante Celiberti wrote: | | Also, being a lover of 3D images, I am so trained to look at them that it takes me less than a second to focus them. |
Like Sante, I'm also able to see the 3D effect immediately and thus I love those stereo images!!! Great work, I hope to see more :-)
So again, please more of that awesome work!
Regards
Tobi
|
|
| Back to top |
|
|
Niels Brouwer
Joined: 26 Sep 2016
Posts: 54
|
| Posted: Oct 18, 2020 09:04 Post subject: Re: Baryte collection of Niels Brouwer |
|
|
The two latest pieces that I was very pleased to add to my collection!
| Mineral: | Baryte, Hematite |
| Locality: | | Calcite Quarry, Holzen, Arnsberg, Sauerland, North Rhine-Westphalia/Nordrhein-Westfalen, Germany | |
|
| Dimensions: | 6,1 x 5,9 cm |
| Description: |
| A fabulous baryte specimen with very distinct pink zoning around the edges due to hematite inclusions and a lovely formation. From a single find in 2006. |
|
| Viewed: |
5727 Time(s) |
|
| Locality: | | Calcite Quarry, Holzen, Arnsberg, Sauerland, North Rhine-Westphalia/Nordrhein-Westfalen, Germany | |
|
| Dimensions: | 6,1 x 5,9 cm |
| Description: |
| The same specimen in stereo. |
|
| Viewed: |
5743 Time(s) |
|
| Mineral: | Baryte, Fluorite |
| Locality: | | Coldstones Quarry, Greenhow, Yorkshire, England / United Kingdom | |
|
| Dimensions: | 4,7 x 3,7 cm |
| Description: |
| A very nicely balanced combination of purple-zoned fluorite and a spherical baryte formation, from a classic English locality. |
|
| Viewed: |
5709 Time(s) |
|
|
|
| Back to top |
|
|
Dany Mabillard
Joined: 01 Jul 2019
Posts: 352
Location: Valais
|
| Posted: Oct 18, 2020 11:28 Post subject: Re: Baryte collection of Niels Brouwer |
|
|
Hello Niels,
two nice specimens especially the German one and incredible photos as usual.
Dany.
|
|
| Back to top |
|
|
Niels Brouwer
Joined: 26 Sep 2016
Posts: 54
|
| Posted: Oct 18, 2020 16:24 Post subject: Re: Baryte collection of Niels Brouwer |
|
|
| Dany Mabillard wrote: | Hello Niels,
two nice specimens especially the German one and incredible photos as usual.
Dany. |
Thanks Dany! I love all the different baryte specimens, but I can't help but feel this German one really is something special.
|
|
| Back to top |
|
|
Tobi
Site Admin
Joined: 07 Apr 2009
Posts: 4235
Location: Germany
|
| Posted: Oct 19, 2020 02:02 Post subject: Re: Baryte collection of Niels Brouwer |
|
|
| Niels Brouwer wrote: | | Dany Mabillard wrote: | Hello Niels,
two nice specimens especially the German one and incredible photos as usual.
Dany. |
Thanks Dany! I love all the different baryte specimens, but I can't help but feel this German one really is something special. |
Your're right, guys, that Holzen specimen is totally awesome - and that 3d stereo photo gives an impression of the real beauty of that piece!
|
|
| Back to top |
|
|
|
FAQ
Register
Log in
Forgotten your password?
